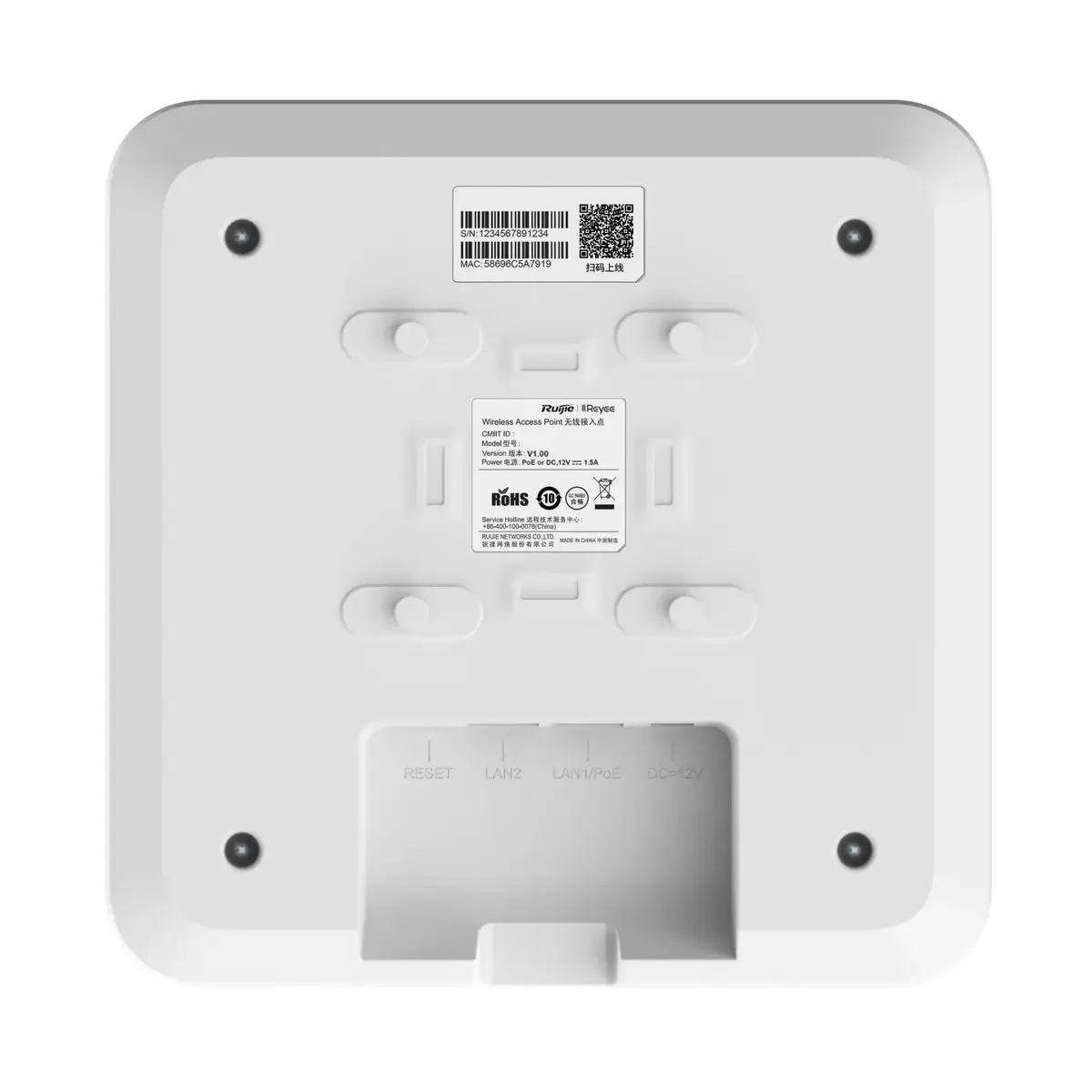

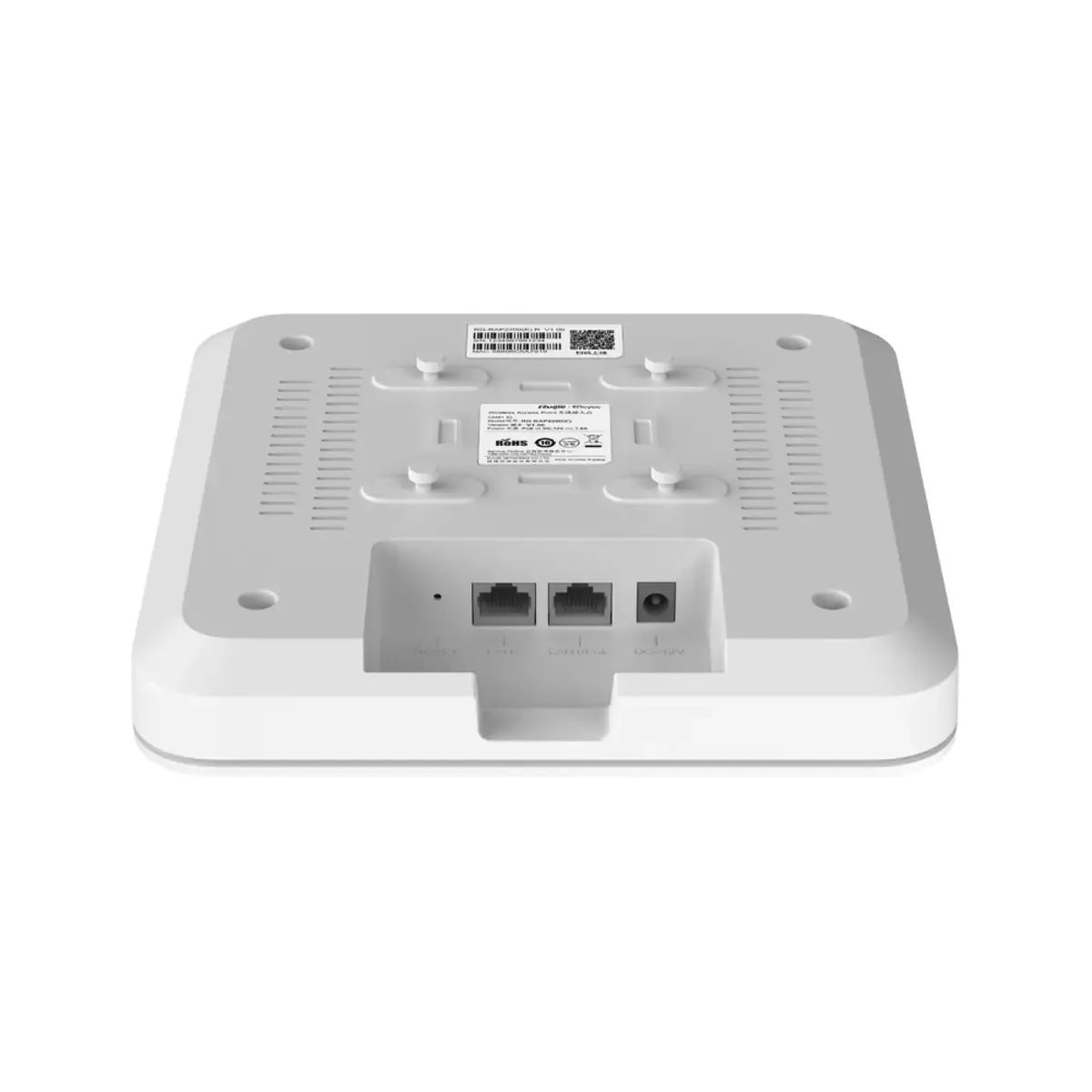

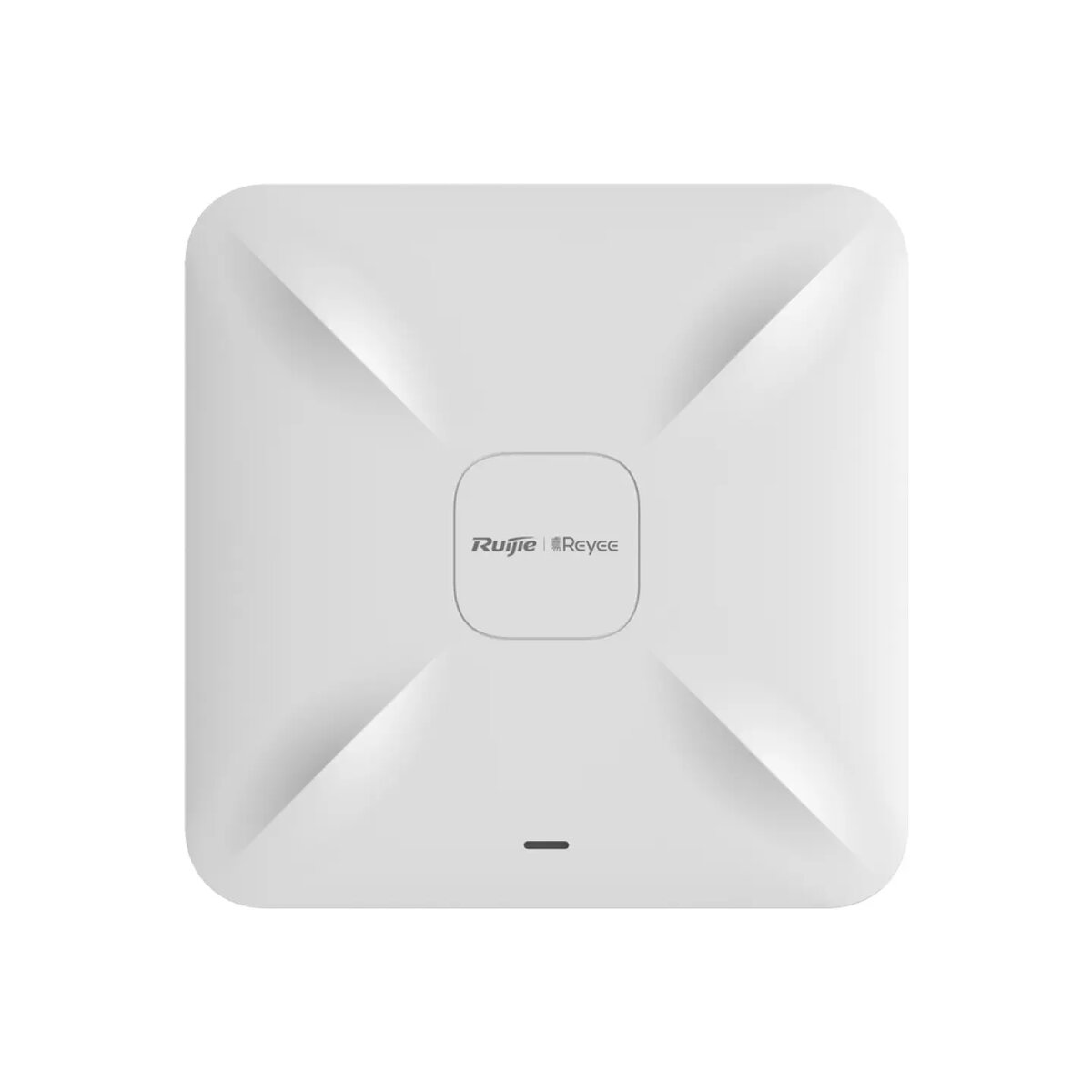

Wireless access point Reyee RG-RAP2200(E) — dual-band 2.4/5 GHz, 1267 Mbit/s, PoE, white

Reyee RG-RAP2200(E) is a dual-band indoor wireless access point operating on 2.4 GHz and 5 GHz with a combined maximum data rate of 1267 Mbit/s. Designed for small offices, retail spaces and public hotspots, the white unit supports Gigabit Ethernet (10/100/1000 Mbit/s) and Power over Ethernet (IEEE 802.3af/802.3at) for simplified cabling and installation. The device integrates MU‑MIMO and 802.11ac Wave2 capabilities for improved multi-user throughput, while cloud-based management and SON (Self-organizing Network) features enable rapid deployment and centralized maintenance.

Advantages

Dual‑radio design and MU‑MIMO support help deliver better performance in high‑density environments by serving multiple devices simultaneously. WIO (Wi‑Fi Intelligent Optimization) provides one‑click network tuning to simplify performance adjustments. Layer 3 roaming enables smooth transitions across subnets without interruption, and Ruijie Cloud integration with SON allows a complete Wi‑Fi network to be set up quickly via mobile app and maintained remotely. PoE support reduces the need for local power outlets and speeds up installation.

Suitable for (tasks / use cases)

• Small and medium-sized offices needing reliable indoor Wi‑Fi coverage
• Retail stores and showrooms requiring guest and point-of-sale connectivity
• Cafés, libraries and public hotspots with moderate to high client density
• Multi-room deployments where centralized cloud management and roaming are required

Key specifications

• Operating bands: 2.4 GHz and 5 GHz (dual‑band)
• Maximum combined throughput: 1267 Mbit/s
• Wireless standard: 802.11ac Wave2 with MU‑MIMO support
• Ethernet: Gigabit Ethernet (10/100/1000 Mbit/s)
• Power: Power over Ethernet support (IEEE 802.3af / IEEE 802.3at)
• Antenna: internal integrated antenna
• Layer 3 roaming support for seamless handover between subnets
• Cloud management and SON (Self‑organizing Network) support

How to use

Mount the Reyee RG-RAP2200(E) in an indoor location with good central coverage and connect it to a PoE‑capable switch or injector to supply power and network connectivity through the same Ethernet cable. Use the Ruijie Cloud APP to discover the access point, apply initial configuration and deploy SSIDs. If PoE is not available, connect to a local power source compatible with the product specifications. Configure security settings (WPA2/WPA3 where supported), VLANs and guest networks as required for your environment. For multi‑AP installations, enable SON and WIO features in the cloud portal to automate channel, power and roaming optimization.

Usage recommendations

Place the unit centrally and away from large metallic objects or thick walls to minimize interference and maximize coverage. For high‑density areas, deploy multiple APs with overlapping coverage and enable MU‑MIMO, WIO and Layer 3 roaming to maintain performance. Use PoE for tidy installation and ensure firmware and cloud management credentials are kept up to date.
