header-product Fan kit Rittal SK 3243.800 — built-in fan, AC, airflow 590 m³/h, plastic housing, grey
365.49 €

Fan kit Rittal SK 3243.800 — built-in fan, AC, airflow 590 m³/h, plastic housing, grey

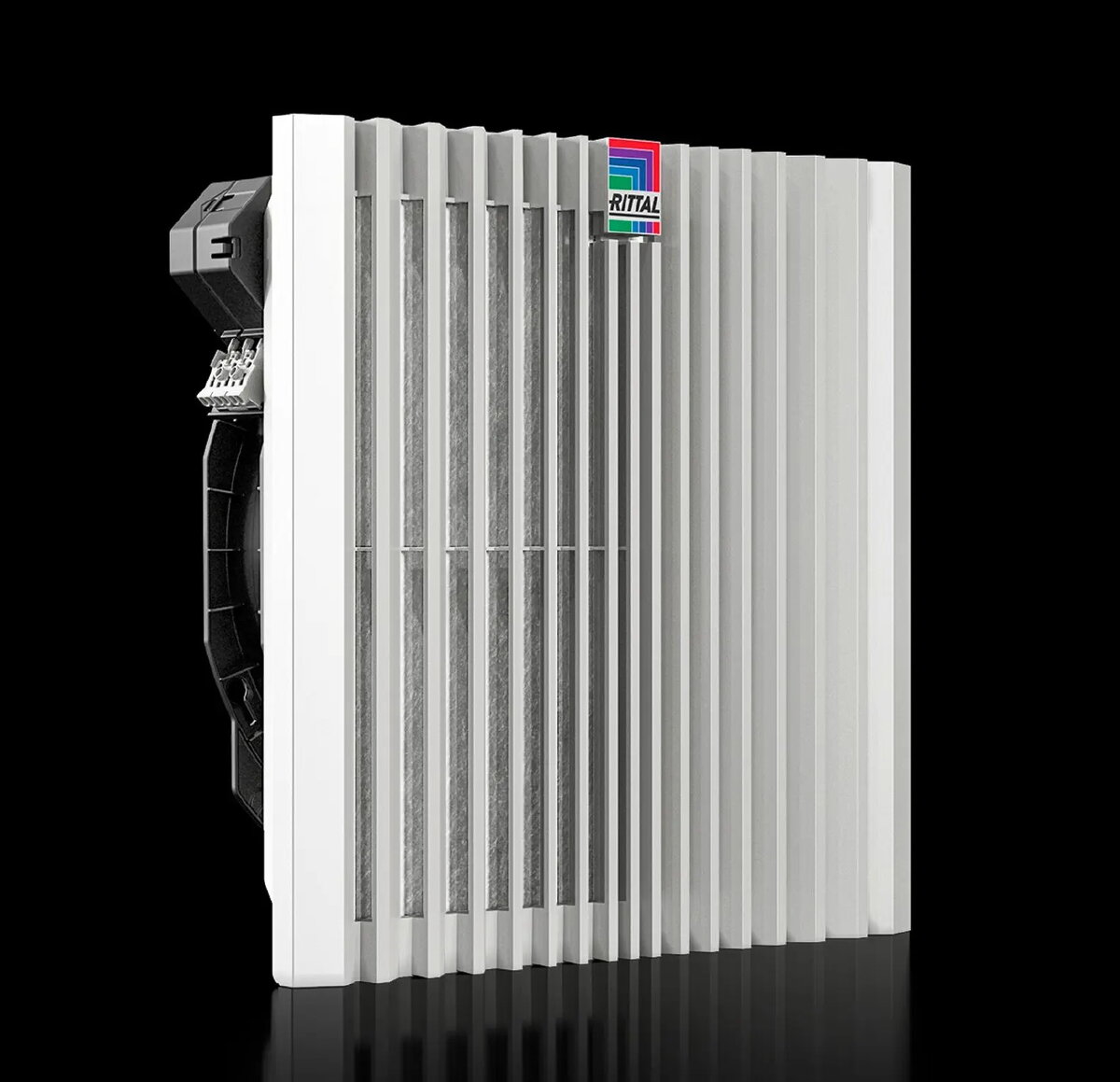

Rittal SK 3243.800 fan kit Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Fan kit Rittal SK 3243.800 — built-in fan, AC, airflow 590 m³/h, plastic housing, grey

{{email}}
You keep track of price changes

Fan kit Rittal SK 3243.800 — built-in fan, AC, airflow 590 m³/h, plastic housing, grey

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

Rittal SK 3243.800 is a fan kit designed for built-in ventilation of enclosures and electrical cabinets. It features an AC-powered fan with an airflow of 590 m³/h, a grey plastic housing and is supplied as a single unit per pack. Suitable for cooling and maintaining airflow in control cabinets, switchgear and industrial enclosures.
Available for order: 76 pcs.
Warranty: 2 Years
SKU: 12400911
Manufacturer: Rittal
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
25.08.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
28.08.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 €
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
28.08.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.79 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Rittal SK 3243.800 is a built-in fan kit for enclosure ventilation that provides forced air exchange to help maintain stable internal temperatures in control cabinets, switchgear and industrial enclosures. The unit includes a single AC-driven fan in a grey plastic housing with EMC shielding and is designed for tool-free mounting. With a nominal airflow of 590 m³/h and an IP54 protection rating for the standard range, the assembly is intended to integrate into existing panel cutouts or ventilation openings to support heat dissipation and reduce hot spots.

Advantages

The fan kit offers a compact, preassembled solution combining a fan, housing and EMC shielding for reduced electromagnetic interference and simplified installation. Tool-free mounting reduces installation time and allows straightforward replacement or maintenance. The plastic housing keeps the weight low while the AC drive delivers a consistent airflow performance suitable for continuous operation in many industrial environments.

Suitable for

  • Cooling of electrical control cabinets and switchgear
  • Ventilation of industrial enclosures with limited installation space
  • Replacing or upgrading existing enclosure fans to improve airflow
  • Applications requiring EMC shielding to limit interference

When it may not be suitable

This fan kit may not be suitable where higher airflow than 590 m³/h is required or where axial/centrifugal fan types with different pressure characteristics are needed. It is also not intended as a solution for outdoor installations exposed to direct weather without additional protective measures beyond the stated protection rating.

Key specifications

  • Airflow: 590 m³/h (nominal)
  • Power supply: AC mains operation
  • Housing material: plastic, grey finish
  • EMC shielding: integrated
  • Protection rating: IP54 (standard application range)
  • Mounting: tool-free built-in mounting for panel/enclosure
  • Pack quantity: single unit

How to use

Mount the fan kit into the corresponding cutout or ventilation opening in the enclosure, using the tool-free mounting features to secure the unit. Connect the AC supply according to the enclosure wiring practice and applicable safety standards, ensuring correct earthing/grounding for EMC performance. Position the fan so airflow direction matches the intended ventilation path through filters or vents, and verify operation by measuring airflow or checking internal temperatures after start-up.

What to consider before purchase

  • Required airflow and whether 590 m³/h meets cooling demands
  • Compatibility of the fan housing dimensions with your enclosure cutout
  • Electrical supply type and voltage compatibility with AC operation
  • Needed protection level for the installation environment (IP rating)
  • Whether EMC shielding is required for your application

Usage recommendations

For reliable operation, install the fan in a location that allows unobstructed intake and exhaust, keep filters clean or replace them as specified, and verify that the enclosure’s internal layout promotes effective airflow over heat-generating components. Periodic inspection of mounting, wiring and air filters helps maintain performance and prolong service life.

All features
Type: Characteristics of the device.
Fan kit
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
4.04 kg
Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
106.4 W
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-30 - 70
Package weight: Weight of the packaged product.
4248 g
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-30 - 55
Power source: What is providing power for the product e.g. mains electricity.
AC
Height: The measurement of the product from head to foot or from base to top.
323 mm
Input voltage: The voltage (V) which is required to power the product.
230
Width: The measurement or extent of something from side to side.
323 mm
Depth: The distance from the front to the back of something.
144.5 mm
Product colour: The colour e.g. red, blue, green, black, white.
Grey
Housing material: What the casing of the product is made of.
Plastic
Airflow:
590 m³/h
International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP54
AC input frequency:
50/60
Quantity per pack:
1 pc(s)
Built-in fan:
Yes

Description
