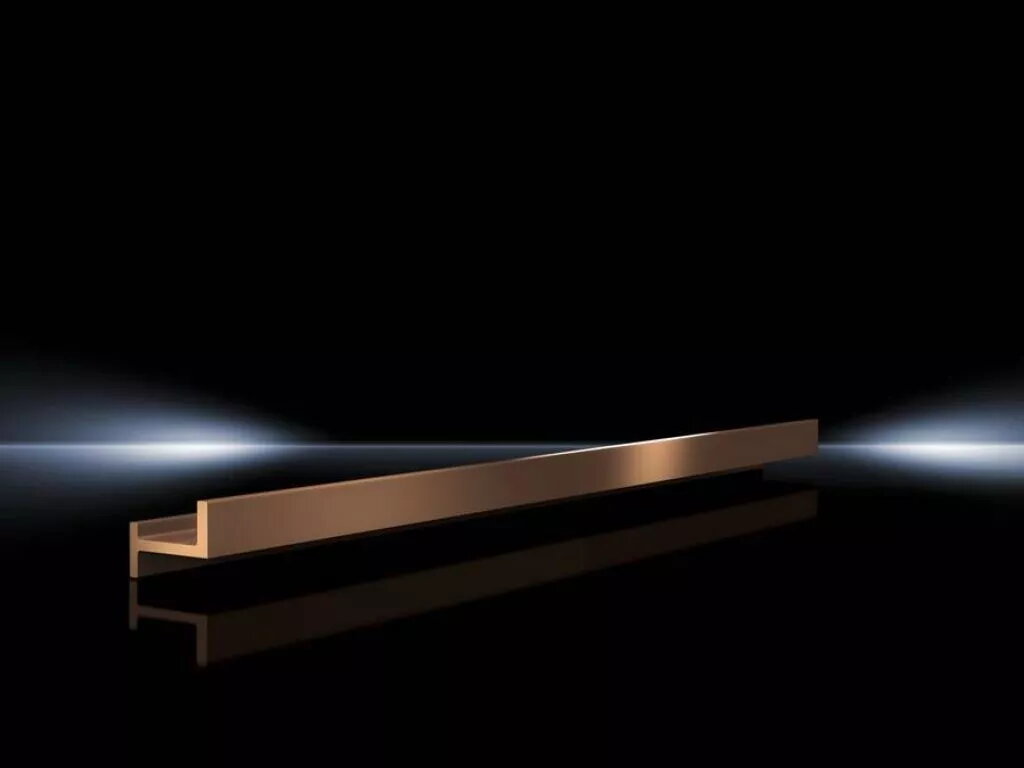

Bus bar (3 pcs) Rittal SV 3509.000 — copper, length 2400 mm

The Rittal SV 3509.000 bus bar set consists of three solid copper conductors, each 2400 mm in length. Designed for use in distribution and control panels, these bus bars provide a reliable conductive path for high-current applications. The pack contains three matching bars intended to be mounted together to form a multi-phase or multi-rail distribution system.

Advantages

Solid copper construction offers low electrical resistance and good thermal conductivity, ensuring efficient current transfer and reduced heat buildup. The long 2400 mm length allows use in larger enclosures or for spanning multiple mounting points, reducing the need for additional connectors. Supplied as a three-piece set, the bars simplify installation for three-phase or multi-rail configurations.

Suitable for

• Power distribution and busbar systems in electrical cabinets
• Industrial control panels and switchgear
• Three-phase power distribution and large current conductors

When it may not be suitable

This product is specifically three copper bus bars of 2400 mm length and is not suitable where shorter lengths or different materials (such as aluminium) are required. It also does not include mounting accessories or insulated covers, so additional components may be necessary depending on the installation and safety requirements.

Key specifications

• Material: copper (solid)
• Quantity per pack: 3 pieces
• Length: 2400 mm each

How to use

Measure and mark mounting positions inside the electrical enclosure to ensure correct alignment for the three bus bars. Secure the bars using appropriate mounting hardware rated for the conductor size and load, and make electrical connections following applicable wiring standards and safety regulations. If necessary, cut or join the bars using approved tooling and methods for copper conductors, and fit insulating covers where required to prevent accidental contact.

What to consider before purchase

• Confirm the required length (2400 mm) and that three bars meet your phase or rail configuration
• Verify conductor material (copper) is suitable for your current and thermal requirements
• Check if mounting hardware, insulation covers, or end connectors are needed and sourced separately

Usage recommendations

Install and connect the bus bars in accordance with local electrical codes and manufacturer guidance; use appropriately rated hardware and covers to maintain safety and ensure reliable operation.
