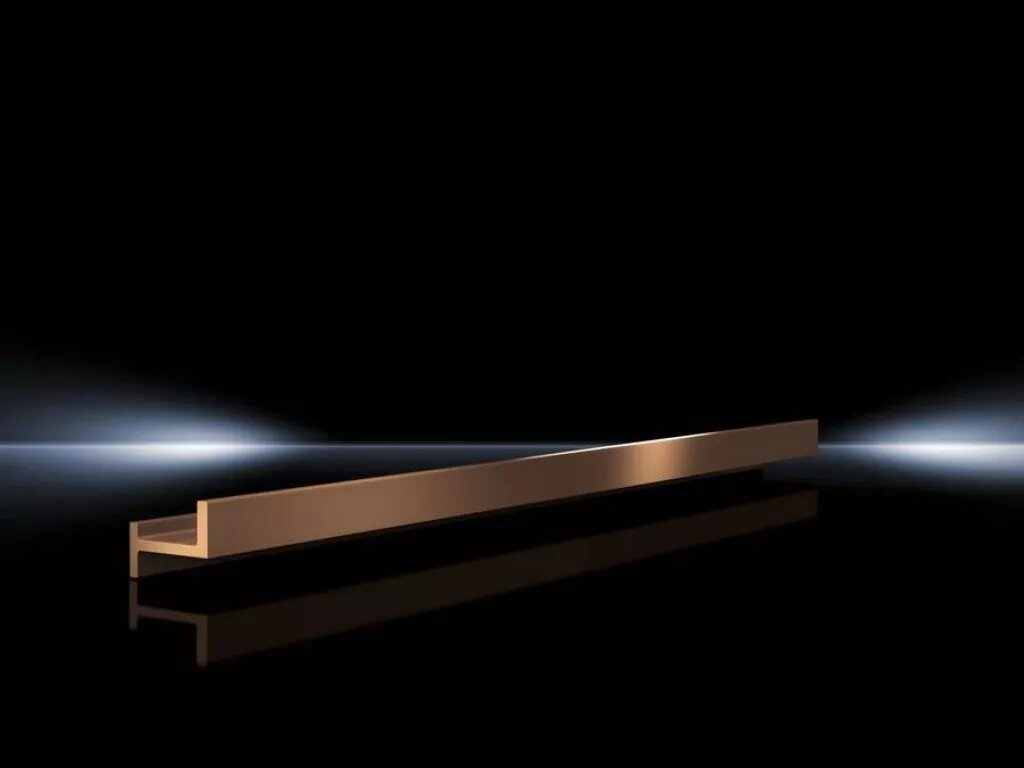

Bus bar Rittal SV 3524.000, copper, set of 3, length 495 mm

Rittal SV 3524.000 is a set of three rigid copper bus bars, each 495 mm long, designed for use in control cabinets, distribution panels and switchgear. These solid copper conductors provide a reliable conductive path for power distribution and conductor connections where compact, durable bus bar solutions are required. The product is supplied as a pack of three identical bars, suitable for common three-phase or multi-rail installations and retrofits.

Advantages

The copper construction ensures high electrical conductivity and low contact resistance, supporting efficient current transfer and minimizing voltage drop. Rigid bars maintain shape and alignment during installation and under mechanical load, simplifying mounting and ensuring consistent connections over time. Available in standard lengths starting at 495 mm and in longer sizes up to 2400 mm, the set adapts to different cabinet depths and layout requirements.

Suitable for

• Three-phase power distribution in control cabinets and switchboards
• Internal bus wiring for switchgear and distribution panels
• Retrofitting or expanding existing electrical enclosures
• Applications requiring compact, durable conductive rails

Key specifications

• Material: copper
• Number of bars: 3 pieces per set
• Standard length: 495 mm (other lengths available up to 2400 mm)
• Form: rigid/solid bus bars
• Typical use: power distribution and conductor connection inside cabinets

How to use

Determine required bar length and spacing according to the cabinet layout, phase separation and applicable electrical standards. Secure each bar to the mounting points using appropriate insulating supports or brackets and fasteners rated for the expected current and mechanical load. Make electrical connections using properly sized lug terminals or clamps and tighten to specified torque values. Ensure clearances, insulation and earthing practices comply with local regulations and the equipment manufacturer’s instructions.

Usage recommendations

Verify compatibility with the enclosure and the intended current rating before installation; when modifying length on site, use suitable cutting and deburring tools and re-treat contact surfaces to maintain conductivity and corrosion resistance.
