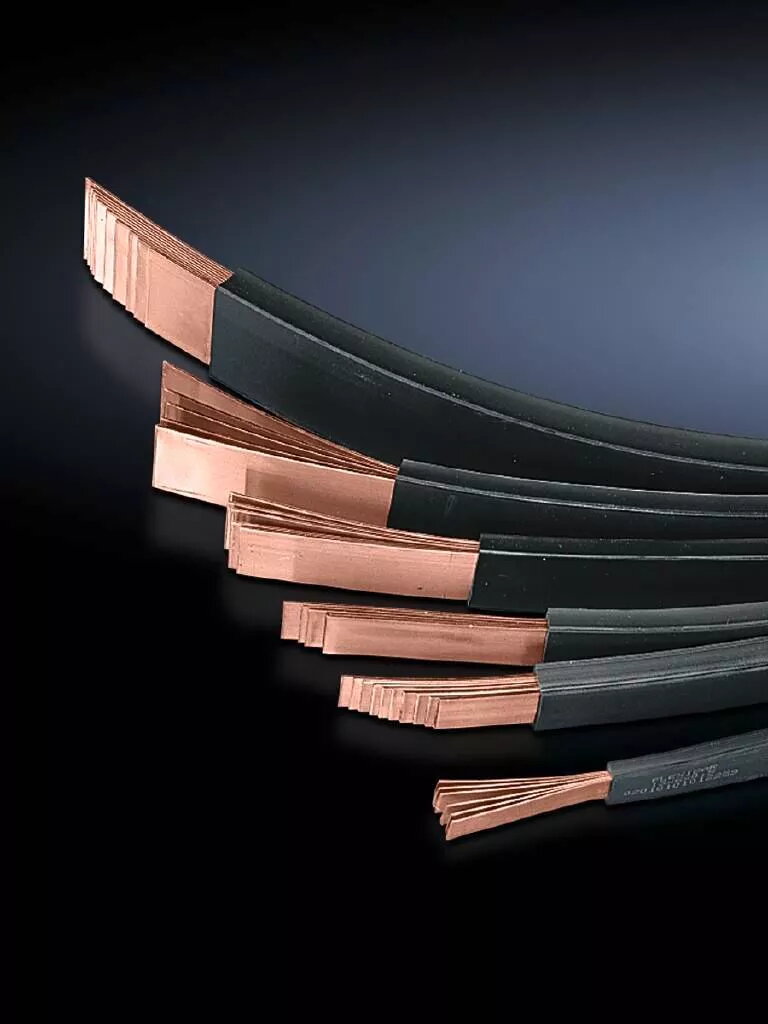

Bus bar Rittal SV 3570.005 copper 2000 mm, laminated copper conductor

Cu lamina made of high-purity electrolyte copper with a length of 2000 mm per bar. This bus bar by Rittal is a solid copper conductor intended for electrical distribution and internal wiring in switchgear and control panels.

Advantages

The copper lamina offers high electrical conductivity, good mechanical strength and corrosion resistance typical for electrolyte-refined copper. Its standardized flat profile and consistent dimensions simplify installation and ensure reliable current carrying capacity in compact panel layouts.

Suitable for

• Bus bar systems in control cabinets and switchboards
• Internal distribution of power in industrial panels
• Custom bus bar assemblies and short connection runs

When it may not be suitable

This flat copper lamina is intended for applications where a flat bus profile and solid copper conductor are required. It may not be suitable for installations that require insulated, pre-coated or flexible braided conductors, or for systems that demand corrosion protection beyond that provided by bare electrolyte copper without additional treatment.

Key specifications

• Material: high-purity electrolyte copper
• Profile: flat lamina
• Cross-sectional dimensions: 5 x 20 mm (thickness x width)
• Length: 2000 mm per bar

How to use

Measure and cut the copper lamina to the required length using appropriate tools for cutting conductive metal. Deburr and prepare the contact surfaces before fastening. Mount the bus bar in the cabinet following applicable electrical standards and ensure secure bolted connections with suitable washers and torque values. If necessary, apply protective coatings or insulation where the bar will be exposed or come into contact with other conductive parts.

What to consider before purchase

• Confirm required cross-section and length for your current rating and layout
• Check compatibility with mounting clamps, connectors and available panel space
• Consider whether surface treatment or insulation is needed for your environment

Usage recommendations

Use correct cutting and crimping tools, follow local electrical codes for bus bar installation, and verify torque specifications for bolted connections to ensure safe and reliable operation.
