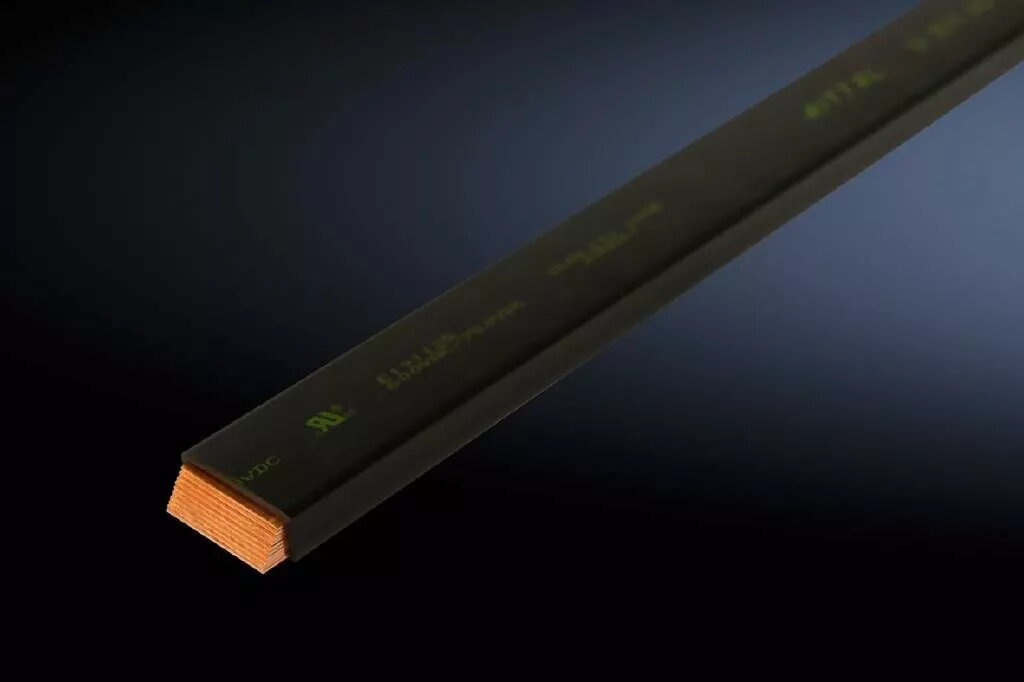

Bus bar Rittal SV 3574.005 — laminated copper busbar 10×32 mm, length 2000 mm

Rittal SV 3574.005 bus bar: a laminated copper lamina made from high-purity electrolytic copper with a length of 2000 mm. Designed for electrical distribution and busbar systems where reliable conductivity and dimensional stability are required.

Advantages

The laminated construction and use of high-purity electrolytic copper ensure low electrical resistance and consistent performance under load. The full-length 2000 mm bar provides continuous conductor runs for switchgear and distribution assemblies, reducing the need for multiple joints. Its standard rectangular cross-section facilitates straightforward mounting and connection in compatible busbar holders and enclosures.

Suitable for

• Power distribution busbar systems in switchgear and control cabinets
• Industrial electrical panels and distribution blocks
• Applications requiring high conductivity and long, continuous copper runs

When it may not be suitable

This copper lamina is intended for electrical conductor applications and may not be suitable where mechanical strength or structural support is the primary requirement. It also may not be appropriate for installations that require pre-drilled holes, plated surfaces, or non-copper conductive materials.

Key specifications

• Material: high-purity electrolytic copper
• Length: 2000 mm
• Cross-section (offer reference): nominally 10 x 32 mm (rectangular lamina)

How to use

Cut or drill to length and shape as required for the electrical installation, taking appropriate precautions to avoid burrs and maintain good surface contact. Secure the lamina in compatible busbar holders or mounting brackets, and make electrical connections using appropriate crimping, bolting, or busbar connectors rated for the intended current. Ensure all connections are tightened to recommended torque and that insulation, clearances, and protective devices meet applicable standards.

What to consider before purchase

• Confirm required cross-section and current-carrying capacity for your installation
• Check compatibility with existing busbar holders, spacers, and enclosures
• Determine if surface treatment, holes, or custom lengths are needed

Usage recommendations

For safe and reliable operation, use this copper lamina within the rated current limits, ensure secure mechanical and electrical connections, and follow national and local electrical installation standards when integrating into switchgear or distribution systems.
