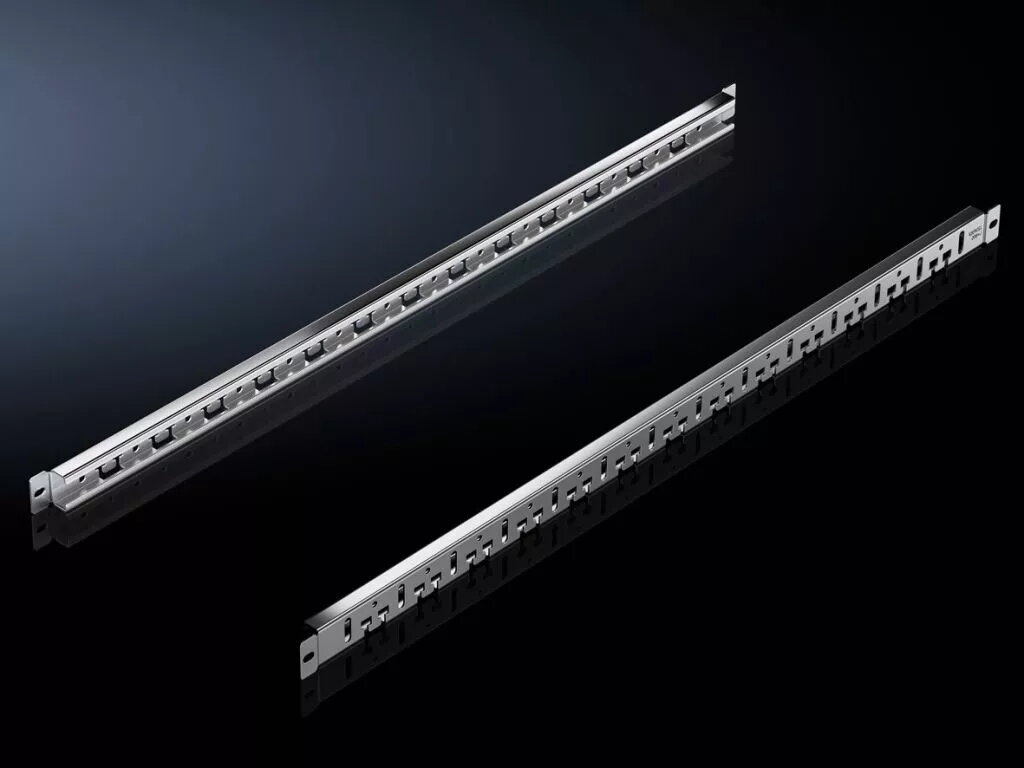

Rack rail Rittal 5302.022

The Rittal 5302.022 rack rail is a galvanized steel support rail engineered for reliable mounting of equipment within server and network cabinets. With a satin finish that resists corrosion and wear, the rail provides a practical mounting width and supports a maximum mounting depth of 100 cm. Each pack contains four rails to furnish stable, uniform support for racks, enclosures and equipment frames.

Advantages

Galvanized steel construction ensures mechanical strength and increased resistance to rust in typical data center and industrial environments. The satin finish reduces surface glare and helps protect against abrasion. A 100 cm maximum mounting depth accommodates deep servers, PDUs and cable management accessories. Supplied as a set of four rails, the product enables symmetrical installation and load distribution across the rack frame.

Suitable for

• Mounting 19" servers and network appliances in server cabinets
• Building custom rack enclosures and frames with standard mounting depths
• Supporting power distribution units (PDUs) and cable management hardware
• Industrial control cabinets and telecommunication racks requiring robust rails

Key specifications

• Material: galvanized steel
• Finish: satin
• Maximum mounting depth: 100 cm
• Pack contents: 4 rails per pack
• Design: standard rack rail profile for equipment mounting

How to use

Install the rails inside a compatible server cabinet or enclosure at the required height and depth using appropriate fasteners and mounting hardware. Ensure the rails are level and aligned to the cabinet’s front and rear mounting points before tightening. Position equipment so its mounting ears or brackets engage securely with the rail profile; for heavy devices use additional support such as shelf brackets or front-to-rear mounting to distribute load evenly. Follow cabinet manufacturer guidance for weight limits and spacing between mounted units.

Usage recommendations

Verify cabinet compatibility with a 100 cm mounting depth and use certified mounting hardware. For optimal load distribution, install all four rails included in the pack and check that rails are firmly secured at both front and rear mounting planes before placing equipment.
