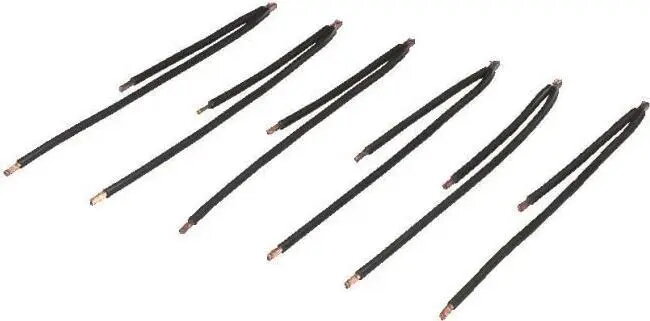

Cable twin conductor Rittal Zwillingsleitung SV 9340.830 PVC

Rittal Zwillingsleitung SV 9340.830 PVC is a twin conductor cable with PVC insulation designed for internal wiring of control cabinets, machines and industrial enclosures. The paired conductor assembly provides two insulated cores for power or signal routing where a compact, flexible twin lead is required. This product is supplied in a short length suitable for panel wiring and internal connections and is rated for continuous use within the specified temperature range.

Advantages

The PVC-insulated twin conductor offers mechanical flexibility and electrical insulation suitable for cabinet wiring. Its construction simplifies two-core connections, reduces assembly time for paired conductors, and provides consistent conductor spacing for reliable terminations. The listed temperature rating supports use in many industrial environments without requiring special high-temperature materials.

Подходит для

• Внутренней проводки распределительных и управляющих шкафов
• Подключения приборов и клеммных колодок внутри оборудования
• Двухпроводных линий питания и сигнальных цепей
• Монтажных и сервисных работ в машиностроении и промышленной автоматике

Key specifications

• Conductor configuration: twin (paired) conductor
• Insulation material: PVC
• Conductor size: AWG 8
• Length per piece: 140 mm
• Quantity per package: 6 pieces
• Temperature range: up to 105 °C (maximum)

How to use

Prepare the cable ends by stripping the PVC insulation to the required length, then terminate each conductor on the appropriate terminal or connector according to the panel wiring diagram. Ensure correct polarity and adequate strain relief inside the cabinet. Route the twin conductor away from high-voltage or high-temperature sources and secure it with cable ties or channels to prevent mechanical stress. Follow local electrical codes and machine documentation when performing connections and tests.

Usage recommendations

For reliable long-term operation, avoid routing the twin conductor across heat sources exceeding the stated maximum temperature and protect exposed terminations with appropriate ferrules or insulated connectors. Use the cable for internal wiring where PVC insulation and the AWG 8 conductor size meet the current-carrying and mechanical requirements of the application.

Rittal Zwillingsleitung SV 9340.830 PVC is presented here as a short paired conductor solution for panel wiring and internal machine connections, offering straightforward installation and practical physical characteristics for industrial electrical work.
