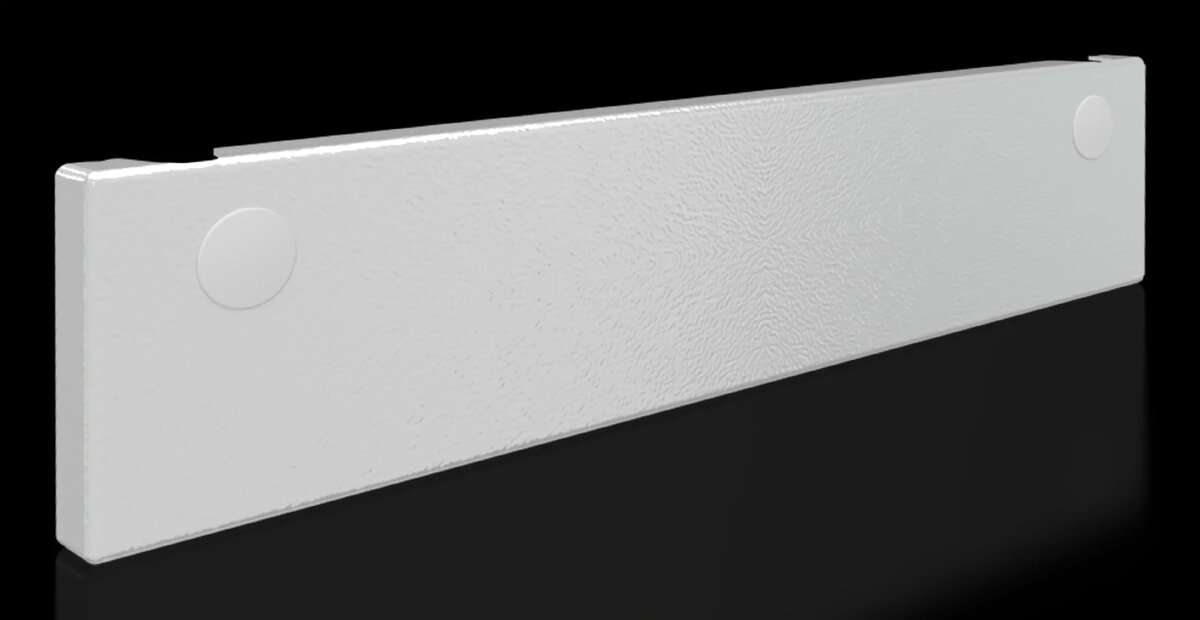

Trim panel Rittal SV 9682.334, steel, grey, for enclosure front, quantity 1

Rittal SV 9682.334 is a grey steel trim panel designed for installation at the front of electrical enclosures and control cabinets. Supplied as a single piece, the panel is intended to close or finish openings at the enclosure front, commonly used at the lower section when partial doors are fitted. The corrosion-resistant steel surface provides a durable protective front for equipment housings while maintaining the enclosure’s IP rating when correctly installed.

Advantages

This steel trim panel offers a robust and dimensionally stable front finish that resists mechanical damage and environmental exposure typical in industrial settings. Its grey finish integrates visually with standard enclosure systems and simplifies assembly by providing a ready-to-fit blanking surface. Being a single-piece item, it reduces the need for onsite modification and provides a neat, uniform closure for openings.

Suitable for

• Closing lower front openings of enclosures when partial doors are used
• Blanking unused sections in control cabinets
• Providing a corrosion-resistant front surface in industrial environments
• Retrofit or replacement of existing trim in compatible enclosure systems

When it may not be suitable

This panel is a flat trim/blanking component and does not include door hinges, locks, or cut-outs for meters, switches, or connectors. It is not intended as a load-bearing structural element or as a decorative facing where custom shaping or perforation is required. If an application needs integrated hardware, viewing windows, or customized machining, additional parts or a different panel type will be necessary.

Key specifications

• Material: steel
• Finish: grey
• Quantity supplied: 1 piece
• Typical application position: enclosure front, lower section for partial doors
• Protection: designed to maintain enclosure front protection when properly fitted

How to use

Position the trim panel in the designated front opening of the enclosure and secure it using the enclosure’s standard mounting points or accessory fasteners. Ensure mating surfaces are clean and that seals or gaskets are correctly located if required to preserve the enclosure’s protection class. After fitting, verify that adjacent doors or panels close and lock without interference and that there are no gaps compromising protection or cable entry routing.

What to consider before purchase

• Confirm physical dimensions and cut-out compatibility with your enclosure model and position
• Verify material and finish meet environmental and corrosion resistance requirements for the installation site
• Check whether additional sealing, fasteners, or modification will be required for your specific use
• Ensure the panel’s intended application (lower/front blanking) matches your cabinet layout and door configuration

Usage recommendations

For correct performance, fit the panel using the enclosure manufacturer’s recommended fasteners and gaskets, and inspect the assembled front for proper sealing and mechanical clearance. For any required cut-outs or mounting of accessories, perform modifications prior to final installation and protect exposed metal edges against corrosion.
