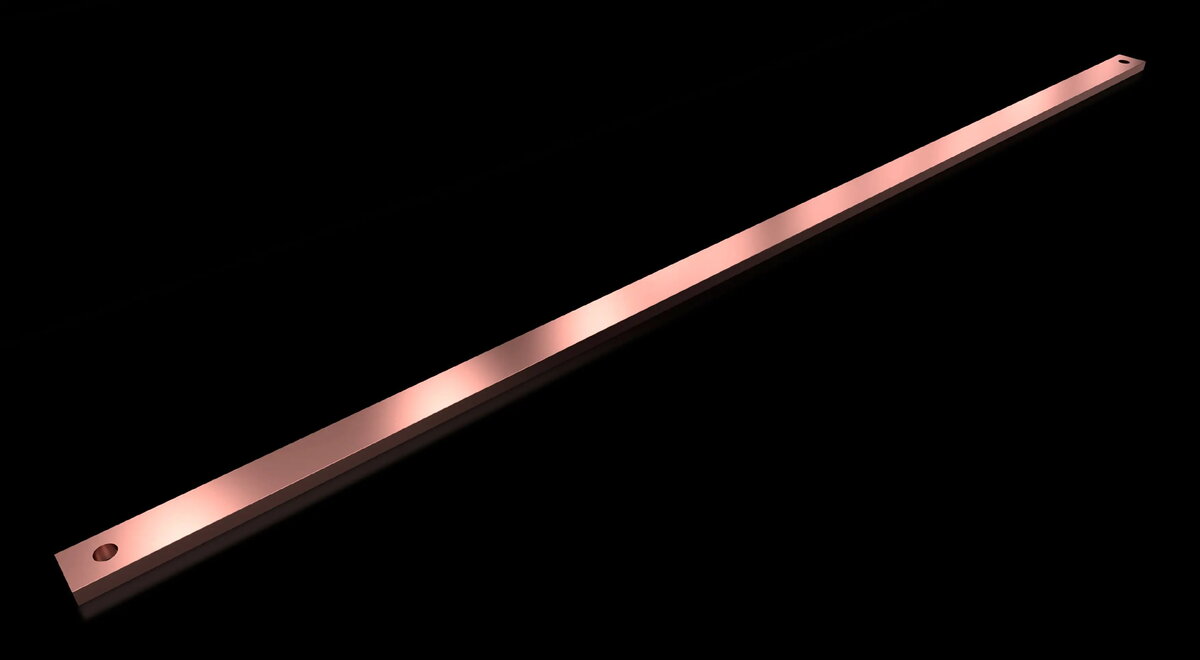

Bus bar Rittal SV 9686.532, copper, 2 pcs, length 1100 mm

Rittal SV 9686.532 is a set of two copper bus bars designed for reliable electrical distribution and PE/PEN grounding in switchgear, control cabinets and distribution panels. Each solid copper bar measures 1100 mm in length and provides a robust conductive path for earthing and protective conductor installations. The product conforms to DIN EN 13601 and includes integral punchings to simplify mounting and connection of conductors.

Advantages

These copper bus bars offer high conductivity and corrosion resistance inherent to electrolytic copper, ensuring low voltage drop and stable grounding performance. Supplied as a pair, they enable straightforward installation of separate PE and PEN connections or parallel earthing arrangements. Integral punchings reduce installation time by providing predefined fixing and tapping points, while the 30 x 10 mm cross-section delivers a balance between mechanical strength and electrical capacity for many commercial and industrial applications.

Suitable for

• PE/PEN grounding in switchgear and distribution panels
• Earthing connections in control cabinets and industrial enclosures
• Horizontal or vertical bus distribution runs where a 1100 mm length is required
• Systems requiring durable copper conductors with predefined mounting holes

When it may not be suitable

This product may not be suitable when non-copper materials are required for specific chemical compatibility or magnetic properties, or when a different cross-section or length is mandated by system calculations. For installations requiring insulated or color-coded bus bars, additional covers or marking accessories will be necessary as these are bare copper bars.

Key specifications

• Material: electrolytic copper (E-Cu)
• Quantity: 2 pieces per set
• Length: 1100 mm per bar
• Cross-section: 30 x 10 mm
• Standards: manufactured to DIN EN 13601
• Features: integral punchings for mounting and tapping

How to use

Plan the layout of PE/PEN conductors and verify clearances and current-carrying requirements before installation. Position the bus bars in the intended location inside the cabinet or panel and secure them using the integral punchings and appropriate insulating or mounting hardware. Connect conductors using suitable lugs or connectors tightened to the recommended torque values for copper conductors. If multiple bars are used for parallel runs or separate earth arrangements, ensure connections are correctly phased and bonded according to local electrical standards.

What to consider before purchase

• Verify that a 1100 mm length and 30 x 10 mm cross-section meet the electrical and mechanical requirements of your installation
• Confirm compatibility with local earthing practices and applicable standards
• Consider whether insulating covers or mounting accessories are needed for safety and identification
• Check space and clearance inside the cabinet for safe routing of conductors and heat dissipation

Usage recommendations

Use appropriate torque settings and copper-compatible connectors when terminating conductors; keep bus bars clean and free of oxidation during assembly and apply protective covers where exposed to accidental contact. Follow local wiring regulations and safety practices when integrating these bus bars into PE/PEN systems.
