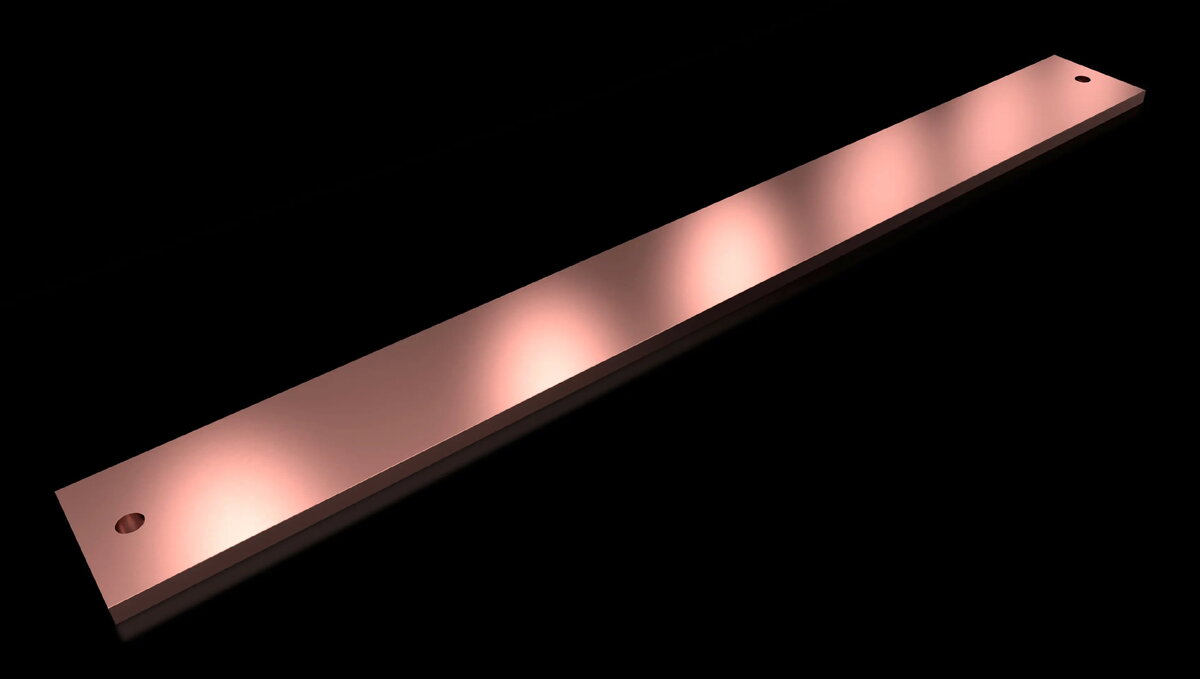

Bus bar Rittal SV 9686.588 copper 2 pcs 700 mm

Rittal SV 9686.588 copper 2 pcs 700 mm is a set of two solid copper bus bars designed for electrical distribution and protective earth (PE/PEN) applications in enclosures and switchgear. Each bar measures 700 mm in length and is manufactured to the DIN EN 13601 standard with integral punchings for straightforward mounting and connection. The product is supplied as two pieces per pack and is intended for reliable current carrying and grounding tasks in industrial and commercial panel installations.

Advantages

The Rittal copper bus bars offer high electrical conductivity and mechanical robustness typical of electrolytic copper, providing stable current carrying capacity for PE and PEN systems. Integral punchings simplify installation by providing pre-defined points for fastening and cable connection, reducing on-site machining. Conformance to DIN EN 13601 ensures consistent material and dimensional quality, making these bus bars suitable for standardized panel and enclosure assemblies.

Suitable for

• PE and PEN grounding bars in distribution boards and switchgear cabinets
• Internal bus connections and panel wiring in electrical enclosures
• Retrofitting or extending existing grounding bus systems
• Industrial and commercial electrical installations requiring solid copper conductors

When it may not be suitable

This product is solid copper and intended for fixed installations; it is not suitable where flexible bus bars or braided conductors are specifically required. It does not include insulating covers or end protection, so applications that demand insulated busbar systems or additional mechanical protection will require separate accessories. The product description does not specify current rating or ampacity for every installation context, so sizing should be verified against system requirements and local regulations.

Key specifications

• Material: electrolytic copper (solid)
• Quantity: 2 pieces per pack
• Length: 700 mm each
• Cross-section/width × thickness example: 80 mm × 10 mm (as per offer naming)
• Standard: manufactured to DIN EN 13601
• Features: integral punchings for mounting and connections

How to use

Install the bus bars inside enclosures or distribution panels using the integral punchings as mounting and connection points. Secure the bars with appropriate bolts and washers to ensure reliable mechanical and electrical contact. Terminate conductor connections to the punchings or drilled/tapped points according to the panel layout and torque specifications relevant to the clamp/bolt size. If needed, cut the bars to length and deburr edges before making connections. Verify continuity and grounding integrity after installation and before energizing the system.

What to consider before purchase

• Confirm required length and number of bus bars for your panel layout
• Verify that the cross-section (width × thickness) and material meet ampacity and short-circuit requirements
• Determine whether insulating covers or additional mounting hardware are needed
• Check compatibility with existing enclosure mounting points and hole patterns
• Ensure compliance with local electrical codes for grounding and busbar installations

Usage recommendations

When fitting Rittal SV 9686.588 bus bars, use appropriate torque values for fastening hardware, apply anti-oxidation treatment where required for copper connections, and fit insulating protection if live parts may be exposed. Confirm ampacity and fault current capability for the intended installation and perform continuity and insulation checks after installation.
