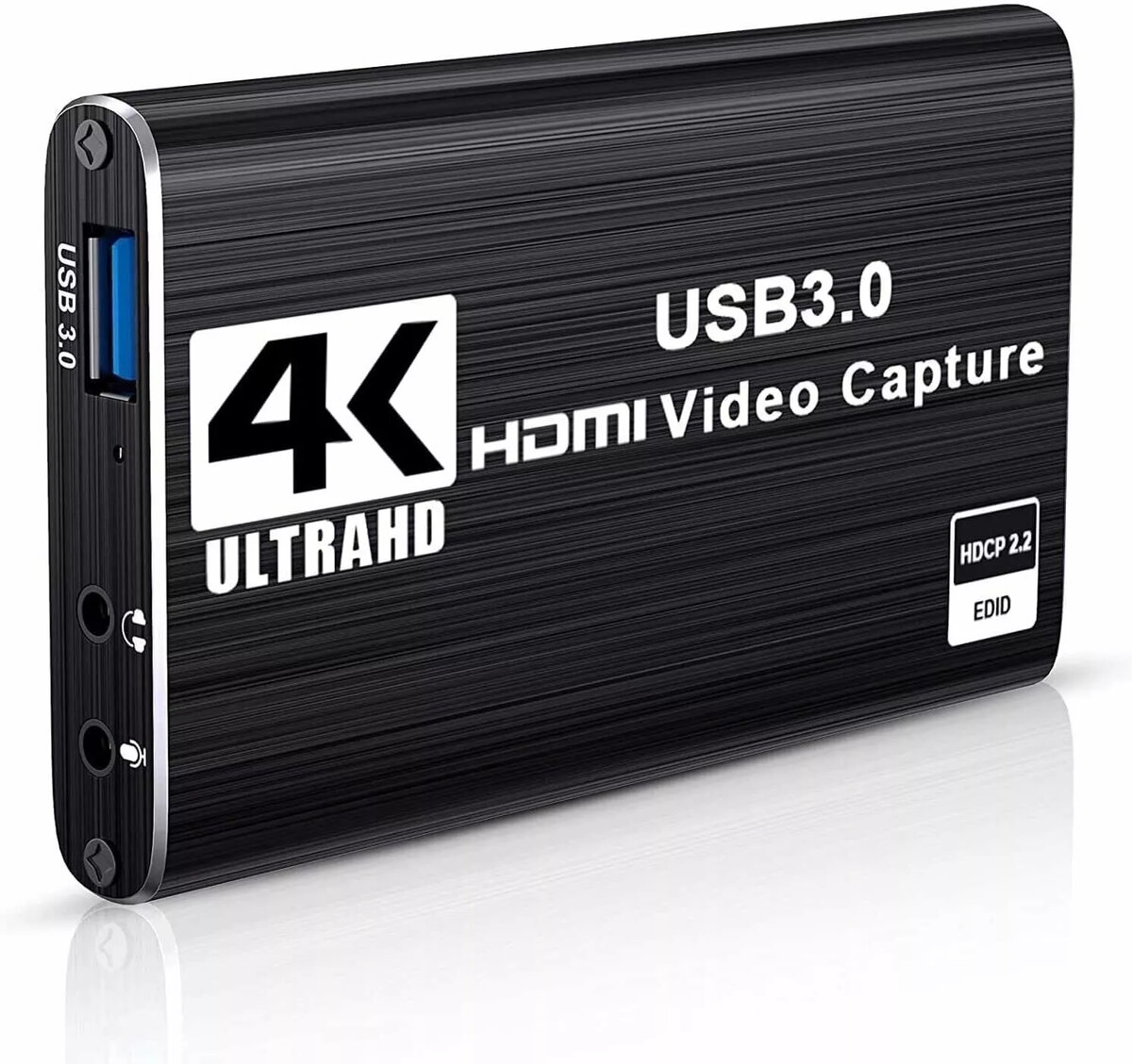

Video capture card RoGer RO-USBVIDCAP4K USB 3.0, external 4K@60FPS capture

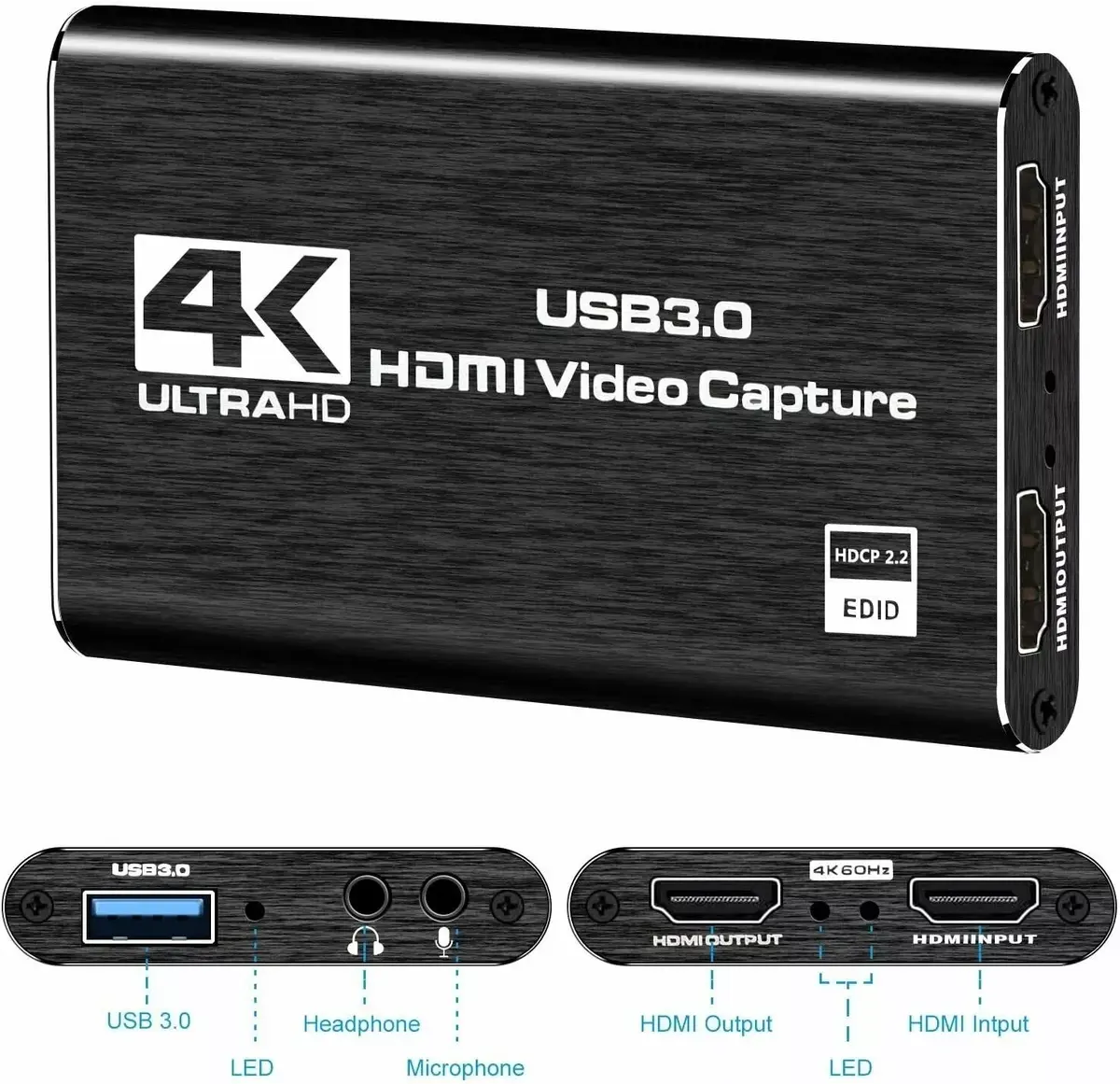

The RoGer RO-USBVIDCAP4K is an external USB 3.0 video capture device that accepts 4K HDMI input and records or streams up to 1080P at 60 fps. It connects to a PC or Mac via a high-speed USB 3.0 port, provides an HDMI loop-out for simultaneous playback, and includes a microphone input for adding voice commentary during recording or live streaming. The device is compatible with common streaming and playback applications and follows UVC/UAC standards for plug-and-play operation.

Advantages

The USB 3.0 interface enables high-speed transmission for low-latency streaming and recording with popular platforms and software such as Twitch, YouTube, OBS, PotPlayer and VLC. HDMI loop-out allows monitoring or local display while capturing. Plug-and-play UVC/UAC compliance removes the need to install drivers on supported operating systems, and built-in microphone input makes it easy to add live commentary. The capture card supports 4K HDMI input while recording at 1080P@60fps for broad compatibility with modern sources.

Suitable for

• Game streaming and capture (1080P@60fps)
• Live streaming and webcasting to platforms like Twitch and YouTube
• Recording presentations, tutorials, and gameplay
• Video conferencing with external HDMI sources

Key specifications

• Input: HDMI 4K input supported
• Capture resolution: up to 1080P at 60 frames per second
• Interface: USB 3.0 connection for data and power (requires USB 3.0 host controller)
• Video sampling rate: HDMI 165 MHz
• Output color space: YUV, RGB
• Audio: Microphone input; supports USB audio class (UAC)
• Standards: USB Video Class (UVC) and USB Audio Class (UAC) compliant
• Operating temperature: 0 to 70 °C
• Storage temperature: -20 to 120 °C
• Storage humidity: 5%–90%
• Power consumption: ≤ 2.5 W
• Supported operating systems: Windows 7/8/8.1/10, Mac OS X 10.9 or above, and Linux

How to use

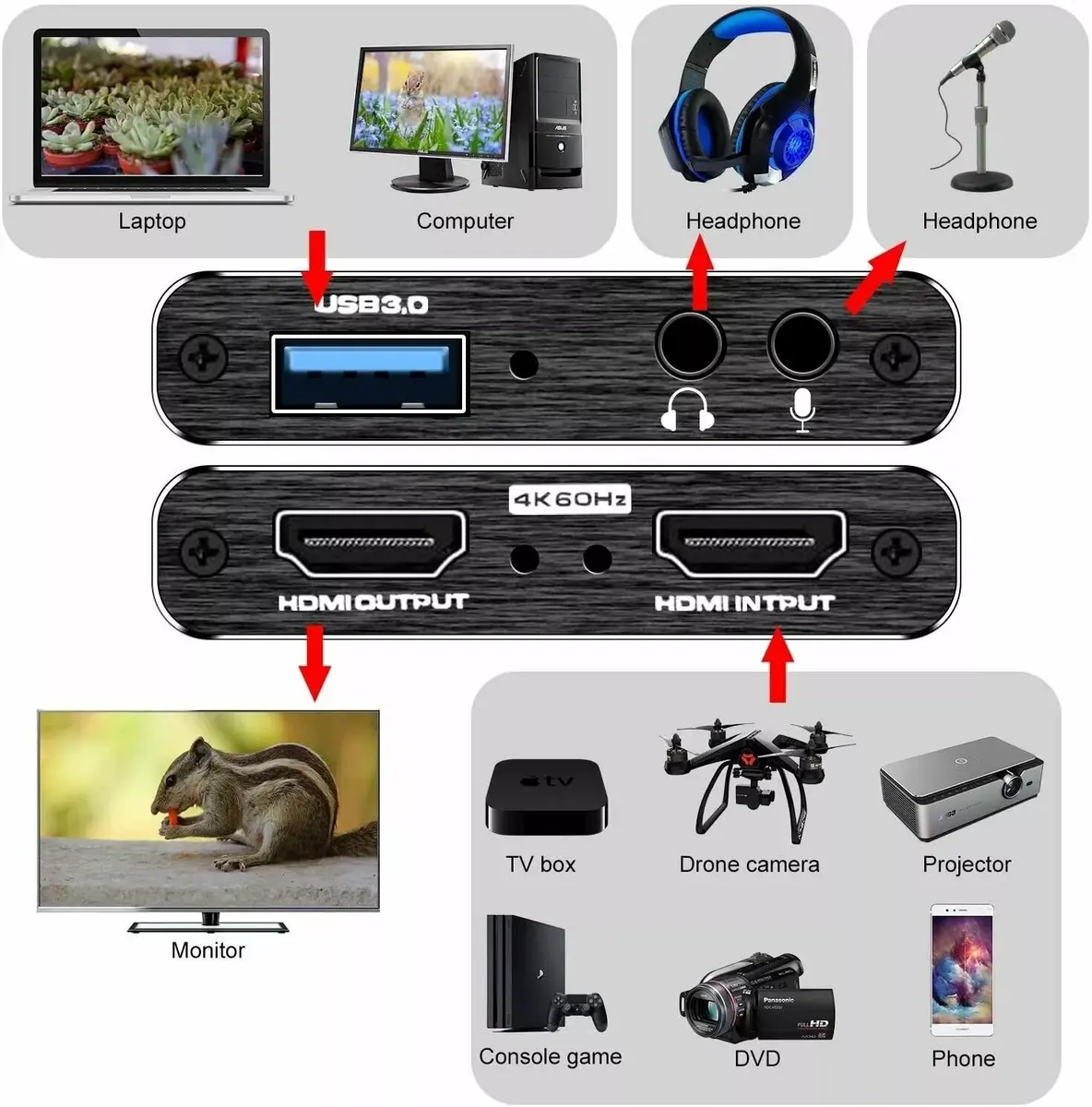

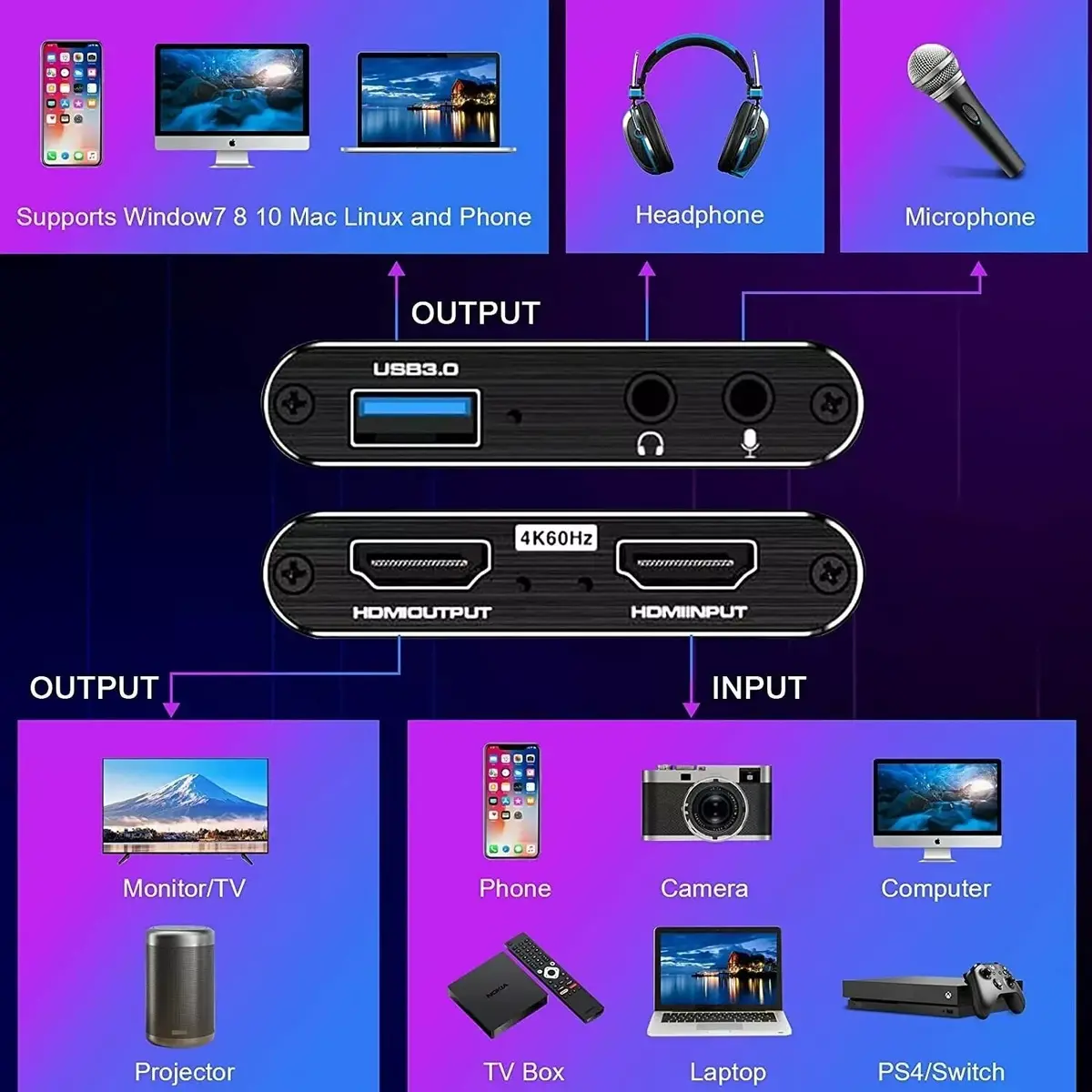

Connect the capture device to your computer using the included USB 3.0 cable and attach the HDMI source to the HDMI input. If you need local display while recording, connect a display to the HDMI loop-out. Plug a microphone into the microphone input to add voice commentary. Open your chosen streaming or capture software (for example OBS, VLC or PotPlayer); the device should appear as a UVC/UAC video and audio source without requiring additional drivers on supported systems. Configure resolution and frame rate in the software to capture at 1080P@60fps as needed.

Usage recommendations

Use a direct USB 3.0 port on the computer with a native USB 3.0 host controller for reliable power and bandwidth. For best results when streaming or recording at 1080P@60fps, use a modern CPU (quad-core i5 or better recommended) and a compatible GPU, and ensure your streaming software is configured to match the capture resolution and frame rate.
