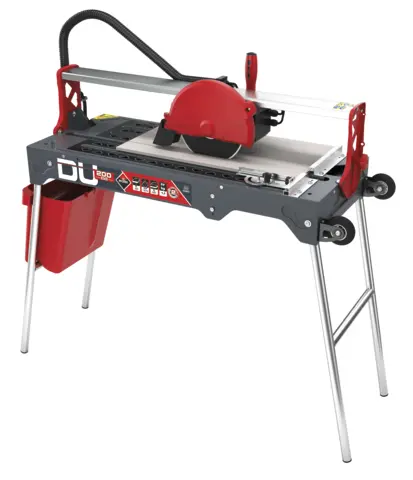

Stationary tile saw RUBI DU-200 EVO 650

Mobile head cutter for renovations and light works. The RUBI DU-EVO electric mobile head cutters are designed for renovation and light tasks and are suitable for general ceramic tile cutting. These cutters are intended for professional cutting of enameled tile (BIII) and stoneware (BIIa) and for occasional cutting of porcelain stoneware (BIa). The DU-EVO is driven by a 1.1 HP (0.8 kW) direct-drive motor with thermal protection and includes a continuous rim 200 mm CEV-SUPERPRO diamond blade for general ceramic cutting.

Advantages

The DU-EVO head slides on four bearings and folds to 45° for mitre cuts; the bi-material handle improves ergonomic comfort. The machine features the RUBI C3 SYSTEM to regulate cooling and disk cleaning, improving diamond blade performance. An 8 W water pump with flow control adapts the cooling flow to different ceramic materials. The chassis design improves water recovery by up to 50%, and the removable 8-litre tank simplifies filling, cleaning and transport. Foldable legs provide greater stability and a working height of 90 cm, while integrated wheels and a chassis handle facilitate handling and transport. All models include an aluminium millimetre ruler and an adjustable lateral stop for repetitive and angled cuts from 0° to 45°.

Key specifications

• Motor: 1.1 HP (0.8 kW) direct-drive with thermal protector
• Disk: 200 mm continuous rim diamond blade, CEV-SUPERPRO type
• Cooling: 8 W water pump with flow control valve
• Head: slides on 4 bearings, foldable to 45° for mitre cuts
• Systems: RUBI C3 SYSTEM for disk cooling and cleaning regulation
• Tank capacity: 8 litres, removable
• Working height: 90 cm (with folded legs)
• Adjustable lateral stop: 0°–45°
• Additional features: aluminium millimetre ruler, wheels and chassis handle for transport

How to use

Place the DU-EVO on a stable surface and unfold the legs to reach the 90 cm working height if needed. Fill the removable 8-litre tank and adjust the water pump flow according to the tile material using the flow control valve. Select the required angle (0°–45°) with the adjustable lateral stop and, when necessary, fold the head to 45° for mitre cuts. Turn on the motor and allow the blade to reach operating speed before feeding the tile steadily and without excessive force. Use the RUBI C3 SYSTEM to regulate disk cooling and cleaning during cutting. After use, switch off the machine, disconnect power, drain and clean the tank, and fold legs and head for transport or storage.

Recommendations

Use appropriate personal protective equipment (safety glasses, hearing protection, gloves). Match the diamond blade type to the material to be cut and verify that the CEV-SUPERPRO blade is suitable for the intended ceramic. Regularly inspect the blade and cooling system, and perform routine maintenance according to the manufacturer’s instructions to ensure safe and efficient operation.
