header-product Wireless access point RUIJIE RG-RAP72 — dual-band 2.4/5 GHz, 3570 Mbps, PoE, 3x RJ-45, white

Wireless access point RUIJIE RG-RAP72 — dual-band 2.4/5 GHz, 3570 Mbps, PoE, 3x RJ-45, white

RUIJIE RG-RAP72 wireless access point Photo 1
RUIJIE RG-RAP72 wireless access point Photo 2
RUIJIE RG-RAP72 wireless access point Photo 3

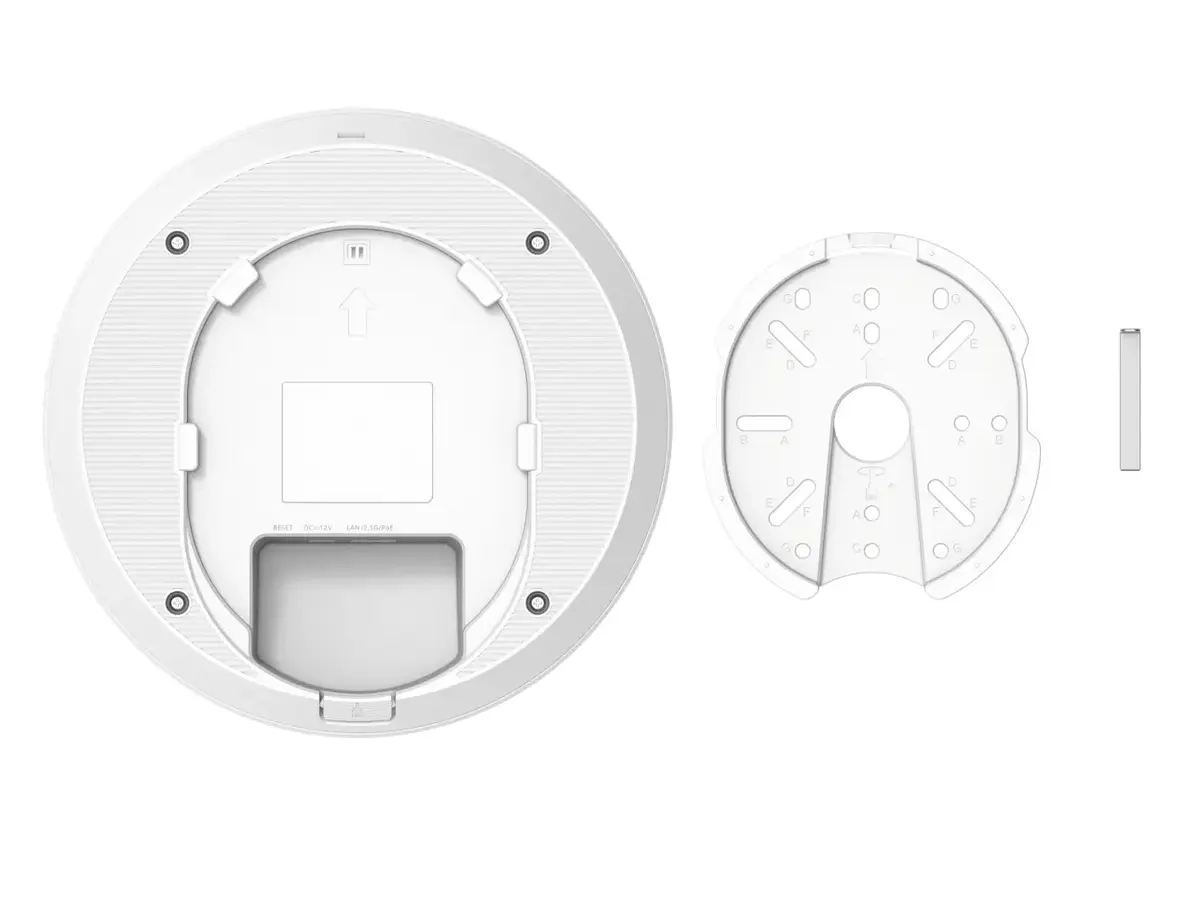

RUIJIE RG-RAP72 wireless access point Photo 4
RUIJIE RG-RAP72 wireless access point Photo 1
RUIJIE RG-RAP72 wireless access point Photo 2
RUIJIE RG-RAP72 wireless access point Photo 3
RUIJIE RG-RAP72 wireless access point Photo 4
Out of stock.
View similar!

Short description

RUIJIE RG-RAP72 is a dual-band wireless access point supporting 2.4 GHz and 5 GHz with a combined maximum data rate of 3570 Mbps. It implements IEEE 802.11 standards including 802.11be/ax/ac/n/g/b, offers security features such as SSID control, WMM and WPA2-PSK, and provides three Gigabit RJ-45 ports. Powered via PoE and finished in white, it suits dense indoor deployments, offices and public hotspots.
Warranty: 2 Years
SKU: 12248898
Manufacturer: RUIJIE
delivery
Information regarding the items availability for purchase will be posted on this site
price
Item cost information will be published on this site
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

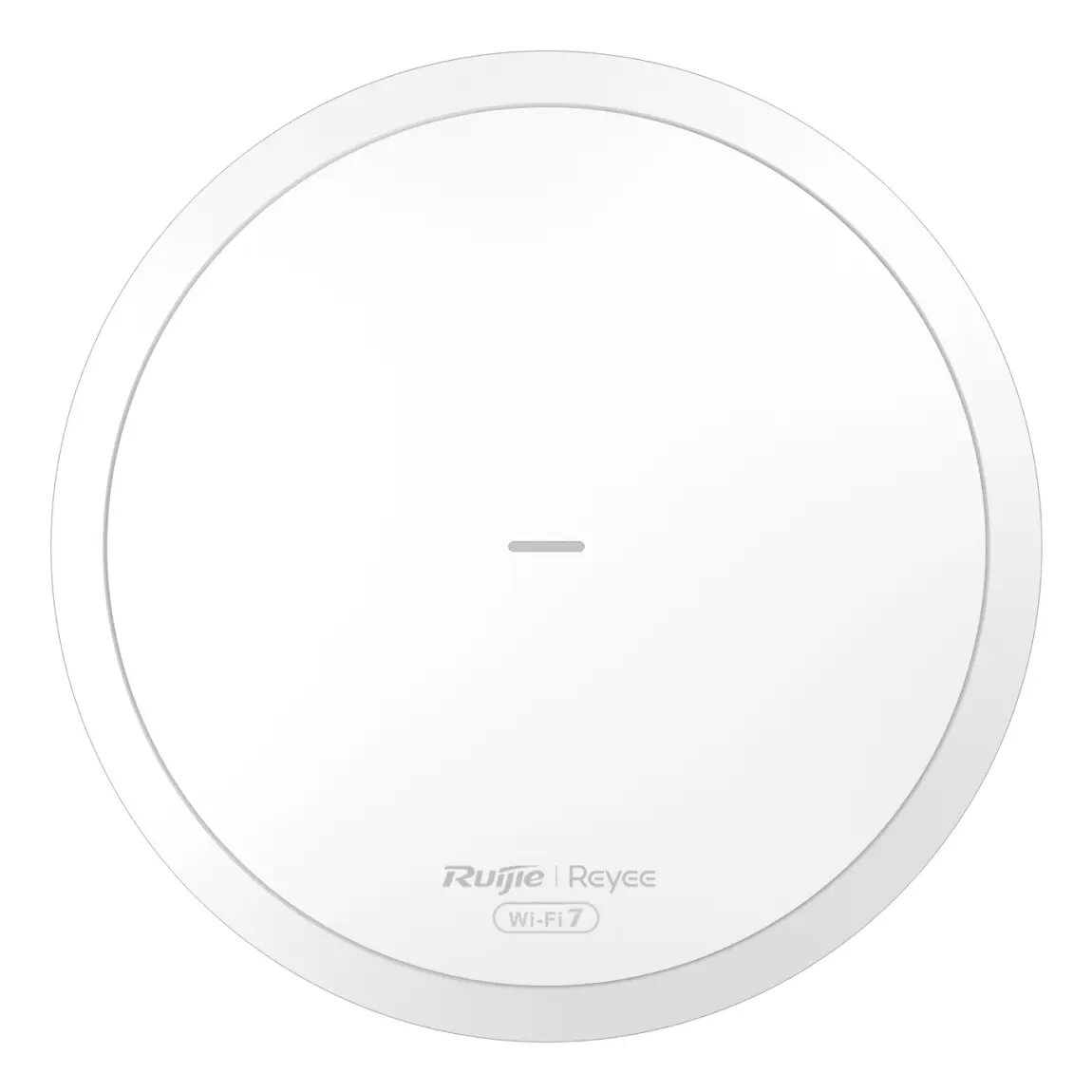

The Ruijie Networks RG-RAP72 is a ceiling-mount Wi‑Fi 7 access point designed for business environments requiring high throughput and discreet installation. It supports dual‑band operation on 2.4 GHz and 5 GHz with a combined maximum data rate of 3570 Mbit/s, PoE power delivery, internal antennas and a compact circular white housing that suits varied décor styles.

Advantages

The RG-RAP72 offers AI-powered features including AI Optimization (WIO 3.0) and AI roaming to improve connection stability and performance across the coverage area. Its Reyee Mesh and standalone portal support simplify deployment and management in business networks. Compact size and ceiling-mount design make installation unobtrusive, while PoE and three Ethernet ports provide flexible connectivity and power options.

Suitable for

  • Office and meeting rooms where central ceiling-mounted coverage is preferred
  • Small to medium enterprise deployments using Reyee Mesh or standalone APs
  • Environments needing high wireless throughput for multiple concurrent users

When it may not be suitable

This access point is optimised for ceiling installations and business network features; it may not be ideal for simple home use where such capabilities are unnecessary. Locations without Power over Ethernet infrastructure will require separate PoE injectors or switches to provide power.

Key specifications

  • Wireless bands: 2.4 GHz (up to 688 Mbit/s) and 5 GHz (up to 2882 Mbit/s)
  • Maximum combined wireless data rate: 3570 Mbit/s
  • Wireless standards: IEEE 802.11be (Wi‑Fi 7), IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.1AX
  • Security: SSID, WMM, WPA2‑PSK
  • Power: Power over Ethernet (PoE)
  • Ethernet ports: 3 × RJ‑45
  • Antennas: internal
  • Colour: white
  • Weight: 0.6 kg

How to use

Mount the RG-RAP72 on a suitable ceiling location to maximise coverage and connect an Ethernet cable to a PoE-capable switch or PoE injector to provide power and network connectivity. Configure the device using Reyee management tools or in standalone mode, enable AI Optimization (WIO 3.0) and set SSID and security (WPA2‑PSK) according to your network policy. Place additional units and enable Reyee Mesh if wider coverage or seamless roaming is required.

What to consider before purchase

  • Availability of PoE on-site or need for PoE injectors/switches
  • Ceiling mounting requirements and space for a circular fixture
  • Whether Wi‑Fi 7 features and Reyee Mesh management align with your network needs

Usage recommendations

For best performance, install the access point centrally in the coverage area, ensure firmware is up to date, enable AI Optimization for dynamic tuning, and use PoE switches to simplify cabling and power management.

Specifications

Ethernet LAN (RJ-45) ports:
3
Weight:
0.6 kg
Maximum data transfer rate:
3570 Mbit/s
Product colour:
White
Networking standards:
IEEE 802.11g, IEEE 802.11n, IEEE 802.1AX, IEEE 802.11b, IEEE 802.11be, IEEE 802.11ac
All features
Backup function:
Yes
Cloud-managed:
Yes

Features

Cabling technology:
10/100/1000Base-T(X)
Maximum data transfer rate:
3570 Mbit/s
Frequency band:
2.4 - 5.85
Networking standards:
IEEE 802.11g, IEEE 802.11n, IEEE 802.1AX, IEEE 802.11b, IEEE 802.11be, IEEE 802.11ac
Ethernet LAN data rates:
1000
VLAN support:
Yes
2.4 GHz:
Yes
5 GHz:
Yes
Wi-Fi Multimedia (WMM)/(WME):
Yes
MIMO:
Yes
MIMO type:
Multi User MIMO
Maximum data transfer rate (2.4 GHz):
688 Mbit/s
Maximum data transfer rate (5 GHz):
2882 Mbit/s
Coverage area:
140 m²

Design

Product colour:
White
Reset button:
Yes
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP41
Placement:
Ceiling, Pole, Wall

Antenna

Antenna type:
Internal
Antenna gain level (max):
4.44 dBi
Antenna direction type:
Omni-directional

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.
14 W
Power over Ethernet (PoE):
Yes
Input current:
1.5
DC voltage range:
12
Power over Ethernet (PoE) type supported:
PoE+

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-40 - 70
Operating temperature (T-T):
0 - 40
Storage relative humidity (H-H):
5 - 95

Ports & interfaces

Ethernet LAN (RJ-45) ports:
3

Performance

Internal memory:
512 MB
Flash memory:
256 MB

Weight & dimensions

Weight:
0.6 kg
Height:
190 mm
Width:
190 mm
Depth:
41 mm

Packaging content

Quantity per pack:
1 pc(s)

Security

Security algorithms:
SSID, WMM, WPA2-PSK
MAC address filtering:
Yes
Guest access:
Yes

Protocols

DHCP client:
Yes
DHCP server:
Yes

Certificates

Compliance certificates:
CE, ISED, RoHS, cTUVus
