header-product Wireless access point RUIJIE RG-RAP72PRO-OD — dual-band 2.4/5 GHz, 5011 Mb/s, PoE, white

Wireless access point RUIJIE RG-RAP72PRO-OD — dual-band 2.4/5 GHz, 5011 Mb/s, PoE, white

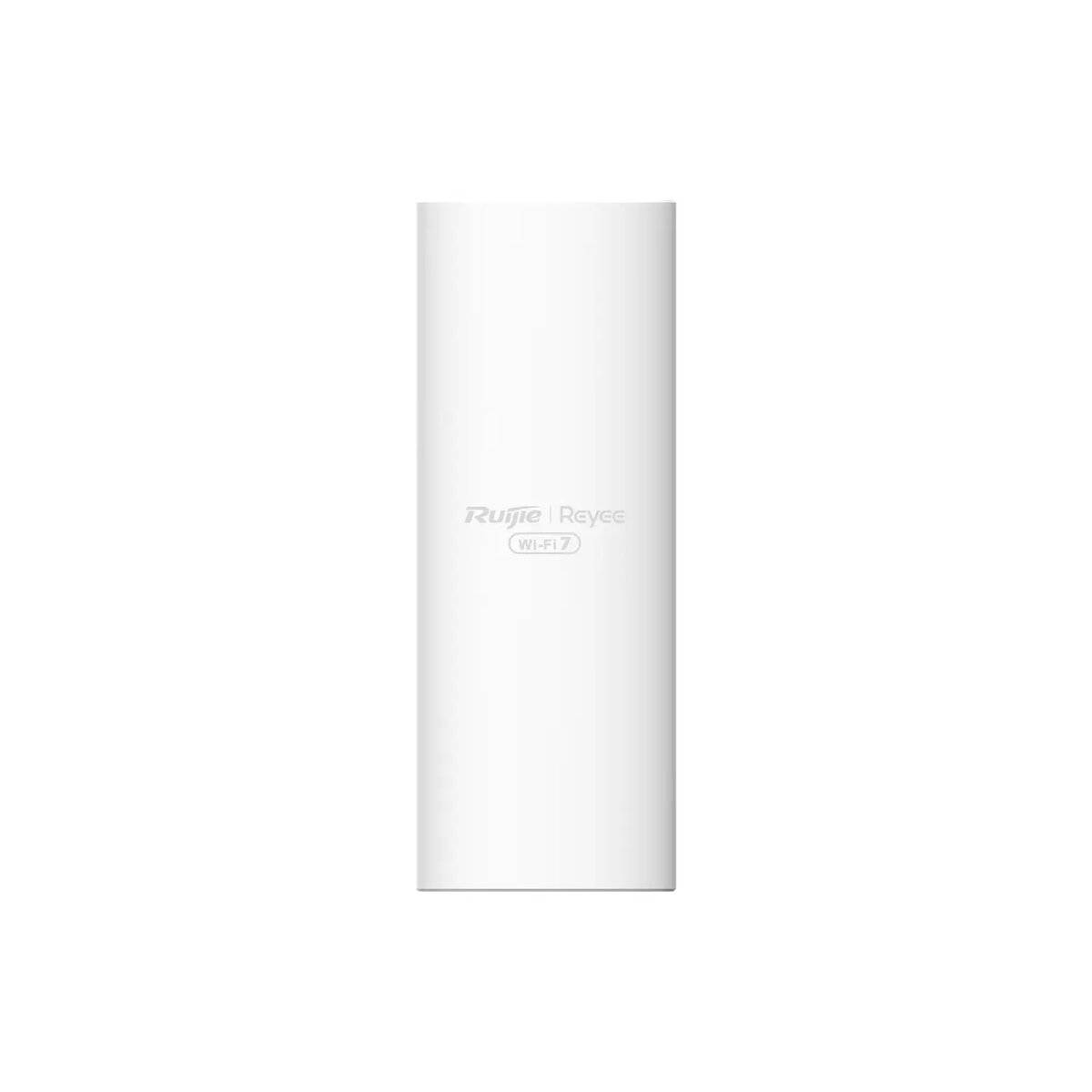

RUIJIE RG-RAP72PRO-OD wireless access point Photo 1
RUIJIE RG-RAP72PRO-OD wireless access point Photo 2
RUIJIE RG-RAP72PRO-OD wireless access point Photo 3
RUIJIE RG-RAP72PRO-OD wireless access point Photo 4
RUIJIE RG-RAP72PRO-OD wireless access point Photo 5
RUIJIE RG-RAP72PRO-OD wireless access point Photo 6
RUIJIE RG-RAP72PRO-OD wireless access point Photo 7
RUIJIE RG-RAP72PRO-OD wireless access point Photo 8
RUIJIE RG-RAP72PRO-OD wireless access point Photo 9
RUIJIE RG-RAP72PRO-OD wireless access point Photo 10
RUIJIE RG-RAP72PRO-OD wireless access point Photo 11
RUIJIE RG-RAP72PRO-OD wireless access point Photo 1
RUIJIE RG-RAP72PRO-OD wireless access point Photo 2
RUIJIE RG-RAP72PRO-OD wireless access point Photo 3
RUIJIE RG-RAP72PRO-OD wireless access point Photo 4
RUIJIE RG-RAP72PRO-OD wireless access point Photo 5
RUIJIE RG-RAP72PRO-OD wireless access point Photo 6
RUIJIE RG-RAP72PRO-OD wireless access point Photo 7
RUIJIE RG-RAP72PRO-OD wireless access point Photo 8
RUIJIE RG-RAP72PRO-OD wireless access point Photo 9
RUIJIE RG-RAP72PRO-OD wireless access point Photo 10
RUIJIE RG-RAP72PRO-OD wireless access point Photo 11
Out of stock.
View similar!

Short description

RUIJIE RG-RAP72PRO-OD is a wall/ceiling wireless access point supporting 2.4 GHz and 5 GHz bands with a maximum aggregated throughput of 5011 Mb/s. It implements Wi‑Fi standards up to IEEE 802.11be and security protocols WPA‑PSK, WPA2‑PSK and WPA3‑SAE. Single Gigabit Ethernet port with PoE (IEEE 802.3af/at) and typical power draw up to 21 W make it suitable for business and high-density public deployments.
Warranty: 2 Years
SKU: 12248899
Manufacturer: RUIJIE
delivery
Information regarding the items availability for purchase will be posted on this site
price
Item cost information will be published on this site
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Ruijie Networks RG-RAP72PRO-OD is a versatile Wi‑Fi 7 outdoor/indoor wireless access point designed for business environments. It supports dual-band operation (2.4 GHz and 5 GHz) with a combined maximum data transfer rate of 5011 Mbit/s, integrated antennas, IP65 weatherproofing and Power over Ethernet (PoE) for flexible installation on walls or poles. Security is provided through WPA-PSK, WPA2-PSK and WPA3-SAE standards, and the unit is compatible with common wired Ethernet speeds.

Advantages

The RG-RAP72PRO-OD offers high throughput across both 2.4 GHz and 5 GHz bands, durable weatherproof construction for outdoor use, and built‑in antennas for immediate coverage without external antenna mounting. PoE support simplifies cabling and placement options, while support for modern security protocols helps protect wireless connections. The access point also integrates with mesh and roaming features suitable for managed retail networks.

Suitable for

  • Outdoor and indoor coverage for retail locations
  • Small to medium business Wi‑Fi mesh deployments
  • Areas requiring PoE installation and flexible mounting

When it may not be suitable

This access point is focused on business and retail deployments and may be more capable and feature-rich than necessary for simple home use. For installations that require external high-gain antennas or extremely specialized RF tuning, a model with external antenna connectors might be more appropriate.

Key specifications

  • Wireless bands: 2.4 GHz (up to 688 Mbit/s), 5 GHz (up to 4323 Mbit/s)
  • Maximum data transfer rate: 5011 Mbit/s
  • Networking standards: IEEE 802.11be/ax/ac/n/a/b/g
  • Security: WPA-PSK, WPA2-PSK, WPA3-SAE
  • Ethernet LAN speeds: 10/100/1000 Mbit/s
  • Power: Power over Ethernet (PoE)
  • Ingress protection: IP65 weatherproof rating
  • Antennas: built-in
  • Colour: White
  • Weight: 0.7 kg

How to use

Mount the access point on a wall or pole in a location with clear line-of-sight to the coverage area and connect it to a PoE-capable switch or injector. Configure wireless settings, security (WPA/WPA2/WPA3) and network parameters through the management interface or cloud/mesh controller. Place additional compatible units to create a mesh network and enable AI roaming if available for seamless client handover.

What to consider before purchase

  • Intended installation location (outdoor vs indoor) and required IP65 protection
  • Need for PoE power sourcing and compatible switches or injectors
  • Coverage area and whether built-in antennas meet range requirements
  • Compatibility with existing network management or mesh solutions

Usage recommendations

For best performance, install the RG-RAP72PRO-OD at elevated positions with minimal obstructions, ensure PoE power delivery meets the device requirements, and use the vendor’s mesh/management tools to optimise roaming and channel selection.

Specifications

Weight:
0.7 kg
Ethernet LAN (RJ-45) ports:
1
Maximum data transfer rate:
5011 Mbit/s
Networking standards:
IEEE 802.3at, IEEE 802.3af, IEEE 802.11n, IEEE 802.11a, IEEE 802.11b, IEEE 802.11be, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11g
Product colour:
White
All features

Features

Mean time between failures (MTBF):
400000 h
Maximum data transfer rate:
5011 Mbit/s
Modulation:
16-QAM, CCK, 4096-QAM, 256-QAM, 1024-QAM, OFDMA, QPSK, 64-QAM
Spread spectrum method:
OFDM, DSSS
Networking standards:
IEEE 802.3at, IEEE 802.3af, IEEE 802.11n, IEEE 802.11a, IEEE 802.11b, IEEE 802.11be, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11g
Ethernet LAN data rates:
10, 100, 1000
Maximum outdoor range:
300 m
Number of simultaneously connected devices (max):
300
2.4 GHz:
Yes
5 GHz:
Yes
MIMO:
Yes
MIMO type:
Multi User MIMO
Maximum data transfer rate (2.4 GHz):
688 Mbit/s
Maximum data transfer rate (5 GHz):
4323 Mbit/s
6 GHz:
No

Design

LED indicators:
Status
Product colour:
White
Reset button:
Yes
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP65
Placement:
Pole, Wall

Antenna

Antenna type:
Internal
Antenna direction type:
Omni-directional

Operational conditions

Operating relative humidity (H-H):
0 - 100
Storage temperature (T-T):
-40 - 85
Operating temperature (T-T):
-30 - 65
Storage relative humidity (H-H):
0 - 100

Power

Power over Ethernet (PoE):
Yes
Power consumption (max):
21 W

Packaging data

Package weight:
1000 g

Weight & dimensions

Weight:
0.7 kg
Height:
239 mm
Width:
90 mm
Depth:
46 mm

Performance

Internal memory:
512 MB
Flash memory:
256 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports:
1

Security

Security algorithms:
WPA3-SAE, WPA2-PSK, WPA-PSK
MAC address filtering:
Yes
Number of SSID supported:
8

Protocols

DHCP server:
Yes

Certificates

Compliance certificates:
CE, Federal Communications Commission (FCC), CB, ISED, cTUVus
