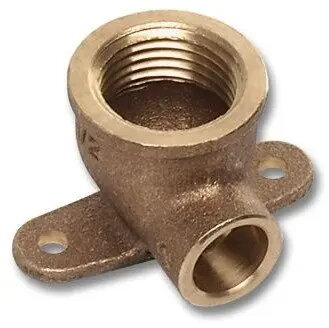

SANHA 90° Elbow with Branch 18 x 1/2" 4472 (soldered copper fitting)

SANHA 90° Elbow with Branch 18 x 1/2" model 4472 is a soldered copper fitting designed for creating a 90-degree directional change with an integrated branch in copper pipe systems. It is intended for soldered installation and provides a compact, corrosion-resistant joint for plumbing, heating and potable water applications where a durable copper connection is required.

Advantages

The fitting is made of copper, which ensures good thermal conductivity and corrosion resistance in typical domestic and commercial installations. Its soldered connection design provides a leak-tight joint when installed correctly and a compact footprint that facilitates installation in confined spaces. The integrated branch reduces the need for additional components, simplifying routing and reducing potential leak points compared with multiple separate fittings.

Suitable for

• Domestic and commercial plumbing systems using copper pipe
• Hot water and heating circuits where a 90° change with a branch is required
• Potable water installations requiring soldered copper joints
• Retrofit or new-build projects where space is limited

Key specifications

• Material: copper
• Angle: 90 degrees
• Connection method: soldered (capillary soldering)
• Main pipe size: 18 mm outer diameter
• Branch connection size: 1/2 inch
• Type: elbow with integrated branch
• Typical application: plumbing, heating, potable water systems

How to use

Prepare the copper pipes by cutting to length, deburring and cleaning the mating surfaces. Apply appropriate flux to the joint areas, assemble the fitting onto the prepared pipe ends, and heat evenly with a suitable torch until the solder flows and creates a continuous fillet around each joint. Allow the assembly to cool naturally and then clean off any residual flux according to the flux manufacturer's instructions. Verify joints for proper wetting and continuity of solder before placing the system into service.

Usage recommendations

Use approved solder alloys and fluxes compatible with potable water systems when required. Ensure proper ventilation and follow local regulations and safety practices for soldering and brazing. For best results, verify pipe alignment and support to avoid mechanical strain on the soldered joints.
