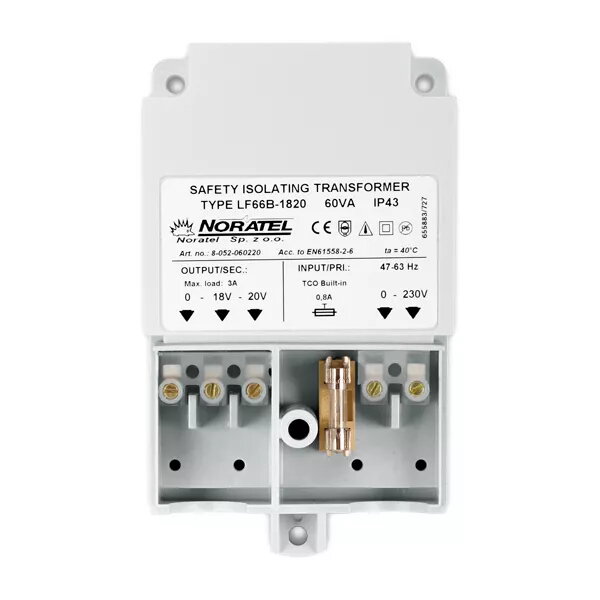

Isolation transformer SATEL TR 60 VA, 230 V AC input, 47–63 Hz, IP43

SATEL TR 60 VA is an isolation transformer with a rated power of 60 VA, designed for a 230 V AC input at mains frequency between 47 and 63 Hz. The device delivers galvanic separation between primary and secondary circuits to reduce interference and protect sensitive electronics in alarm systems, control panels and other low-voltage installations. The enclosure meets IP43 protection level, providing splash and particle protection suitable for indoor installation environments. The transformer is compatible with enclosures such as OPU-3 P and OPU-4 P and is intended for mounting in electrical cabinets and security system housings.

Advantages

The SATEL TR 60 VA provides reliable galvanic isolation to prevent ground loops and reduce electromagnetic interference in control and alarm circuits. Its 60 VA rating offers sufficient capacity for powering sensors, control modules and small peripherals while maintaining stable secondary voltage. Built to conventional transformer design, it ensures long-term operation with limited maintenance requirements. IP43-rated protection allows safe use in many indoor mounting locations where limited exposure to dust and water splashes may occur.

Подходит для

• Питание охранных панелей и датчиков низкого напряжения
• Изоляция цепей управления и периферийных модулей
• Применение в системах автоматизации и контроля доступа
• Установка в электрических шкафах и корпусах типа OPU-3 P / OPU-4 P

Key specifications

• Rated power: 60 VA
• Primary voltage: 230 V AC
• Frequency range: 47–63 Hz
• Protection class: IP43
• Function: galvanic isolation between primary and secondary
• Intended use: indoor mounting in electrical and security housings

How to use

Mount the transformer inside a suitable enclosure such as OPU-3 P or OPU-4 P, ensuring secure fixation and adequate ventilation. Connect the primary side to a 230 V AC supply with correct fusing and follow local electrical regulations. Connect the secondary output to the low-voltage circuit or device requiring isolation. Observe correct polarity where applicable and avoid overloading the transformer by keeping the connected load within the 60 VA rating.

Usage recommendations

Before installation, disconnect mains power and verify compatibility of the transformer secondary voltage with the target equipment. Provide appropriate overcurrent protection on the primary side and do not install the unit in locations with excessive humidity or corrosive atmospheres. For applications sensitive to voltage variation, check voltage under load to ensure stable operation within the transformer's rated capacity.
