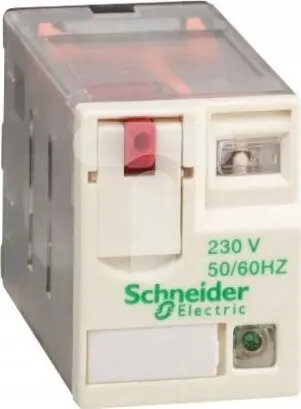

Schneider Electric Zelio RXM Miniature Plug-in Relay, 3 Changeover Contacts, 230V AC, LED

The Schneider Electric Zelio RXM miniature plug-in relay is a high-performance component engineered for industrial control and automation systems. This device features three changeover contacts (3CO) and is designed to operate on a 230V AC control circuit. Equipped with an integrated LED status indicator, it provides clear visual feedback, allowing for efficient monitoring and troubleshooting within complex electrical installations. Its compact form factor is specifically optimized for space-constrained control panels, ensuring reliable switching performance and long-term operational stability.

Advantages

The primary benefit of this relay is its robust construction, which ensures consistent performance in demanding industrial environments. The inclusion of an LED indicator simplifies maintenance by allowing technicians to verify the relay status instantly without the need for additional testing equipment. Furthermore, the plug-in design facilitates rapid installation and replacement, significantly reducing downtime during system upgrades or repairs. The three changeover contacts offer versatile switching capabilities, making it a flexible solution for various logic and control circuit requirements.

Suitable for

• Industrial automation and control systems
• Control panel wiring and logic switching
• Machine building and manufacturing equipment
• HVAC control systems
• Electrical distribution and monitoring panels

When it may not be suitable

This relay is designed specifically for 230V AC control circuits and is not suitable for applications requiring different voltage levels or DC control signals. It should not be used in environments where the electrical load exceeds the rated contact capacity, as this may lead to premature failure or safety hazards.

Key specifications

• Contact configuration: 3 changeover contacts (3CO)
• Control circuit voltage: 230V AC
• Status indication: Integrated LED
• Mounting type: Plug-in
• Application: Industrial control and automation

How to use

To install the relay, ensure that the power supply to the control circuit is disconnected. Insert the relay into a compatible socket base, ensuring that the pins are correctly aligned. Once securely seated, connect the control wiring to the appropriate terminals on the socket. After installation, restore power and observe the LED indicator to confirm that the relay is functioning correctly during operation.

What to consider before purchase

• Verify that the control circuit voltage matches the 230V AC requirement.
• Ensure the socket base is compatible with the relay pin configuration.
• Check that the contact current rating is sufficient for your specific load.
• Confirm the physical space available in the control cabinet for installation.

Usage recommendations

Always ensure that the relay is installed in a clean, dry environment protected from excessive vibration and extreme temperatures to maintain optimal performance and longevity.
