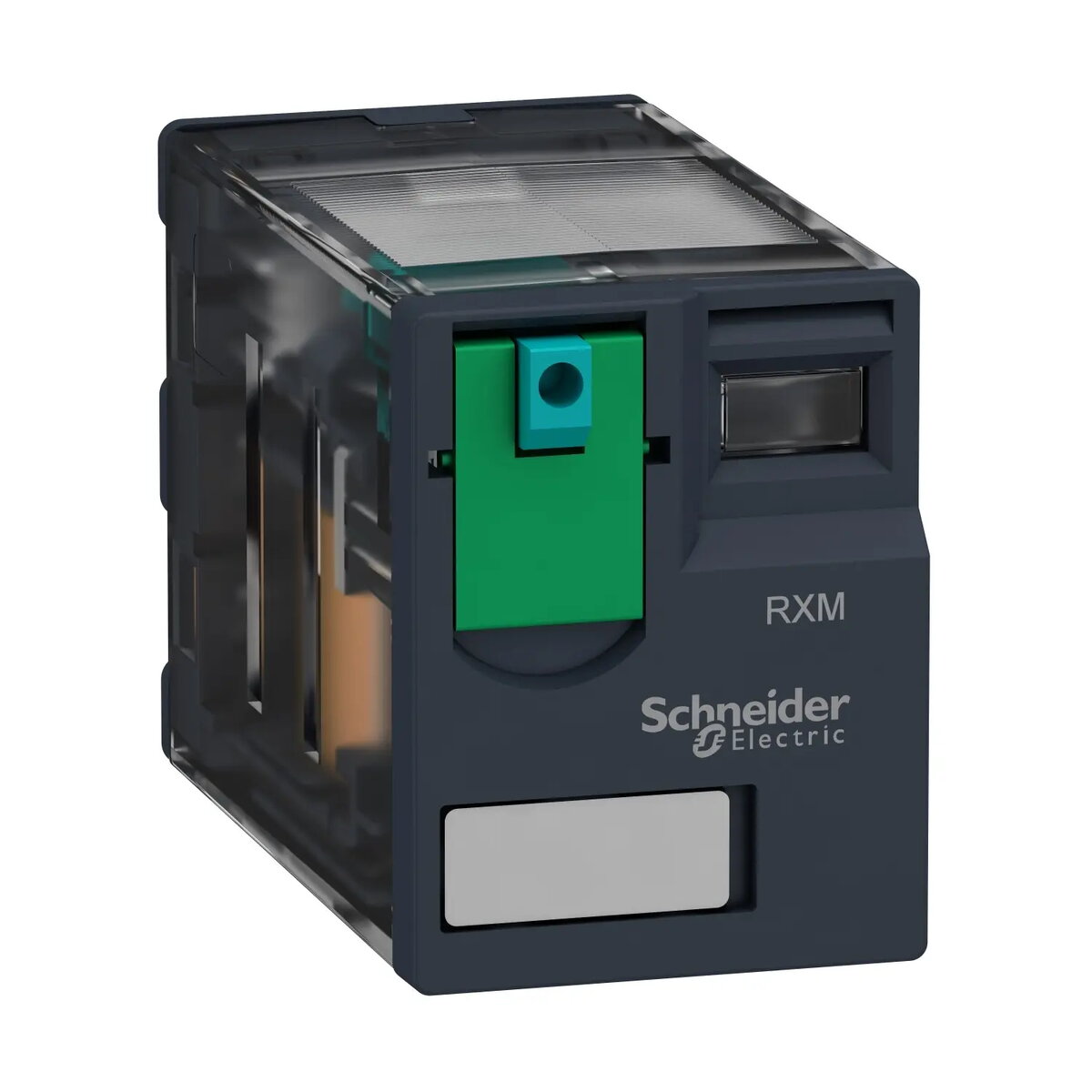

Schneider Electric RXM4AB1JD Miniature Plug-in Relay, 4 Changeover Contacts, 12V DC

The Schneider Electric RXM4AB1JD is a high-performance miniature plug-in relay engineered for precise industrial control and automation tasks. Featuring four changeover contacts, this component provides versatile switching capabilities for complex electrical circuits. It operates on a 12V DC coil voltage and is housed in a durable, transparent casing that allows for easy visual inspection of the internal contact status during operation.

Advantages

This relay offers exceptional reliability and consistent performance in demanding environments. Its compact design ensures efficient space utilization within control panels, while the robust construction meets international safety standards. The four changeover contacts allow for flexible circuit configuration, enabling the simultaneous control of multiple signals or loads with a single device. The transparent housing facilitates quick maintenance and troubleshooting by providing clear visibility of the mechanical operation.

Suitable for

• Industrial automation and control systems
• Electrical signal switching in control panels
• Process control equipment
• Machine tool applications

This relay may not be suitable for high-power applications exceeding its 6A current rating or 1500 VA load capacity. It is designed specifically for DC control circuits and should not be used in AC coil voltage applications without appropriate conversion or matching components.

Key specifications

• Coil voltage: 12V DC
• Contact configuration: 4 changeover contacts
• Rated current: 6A
• Load capacity: 1500 VA
• Weight: 37g
• Certifications: EN/IEC 61810-1, UL 508, CSA C22.2 No 14, Lloyd's, GOST

To use the Schneider Electric RXM4AB1JD, insert the relay into a compatible socket base designed for miniature plug-in relays. Ensure that the coil voltage matches your control circuit output of 12V DC. Secure the relay firmly to ensure proper electrical contact and verify that the wiring connections are tightened according to the terminal specifications of the socket. Once installed, the relay will automatically switch the contacts based on the energization of the coil.

What to consider before purchase

• Verify that your control system provides a 12V DC supply.
• Ensure the socket base is compatible with the relay pin configuration.
• Check that the total load does not exceed the 6A or 1500 VA limits.
• Confirm the environmental conditions are within the specified operating range.

For optimal longevity and performance, ensure the relay is protected from excessive vibration and extreme temperatures. Regularly inspect the contacts for signs of wear if the device is subjected to high-frequency switching cycles.
