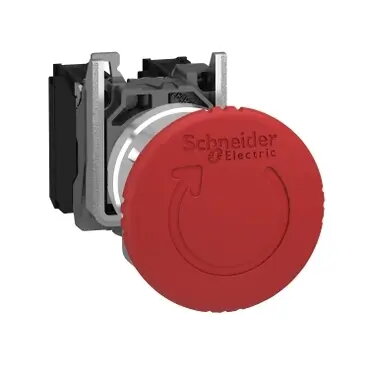

Button Schneider Electric XB4, IP66, IK06, 40×82×47 mm

Schneider Electric XB4 push button designed for industrial and outdoor control panels. This compact control device provides IP66 protection against dust and powerful water jets and IK06 impact resistance for mechanical durability. With physical dimensions of 40 × 82 × 47 mm, the XB4 push button fits confined operator stations and control enclosures where robust, splash- and dust-resistant actuation is required.

Advantages

The XB4 push button combines a small footprint with high ingress protection and mechanical impact resistance, enabling reliable operation in harsh environments. Its dust-tight construction and protection against strong water jets reduce the need for additional sealing, while the rugged build contributes to extended service life in industrial applications. The standard form factor simplifies integration into existing control panels and operator consoles.

Suitable for

• Industrial machine control panels exposed to dust and moisture
• Outdoor control stations and enclosures
• Food processing and washdown areas where water jets are used
• Workshop and manufacturing operator stations with limited panel space

Key specifications

• Protection class: IP66 — dust-tight and protected against powerful water jets
• Impact resistance: IK06 — protection against mechanical impacts
• Dimensions (W×D×H): 40 × 82 × 47 mm — compact form factor for confined panels
• Mounting: panel-mounted actuator suitable for industrial enclosures
• Operating environment: designed for harsh and wet environments

How to use

Install the push button into a correctly prepared panel cutout matching the product’s mounting requirements and secure it according to the enclosure manufacturer’s instructions. Ensure wiring is performed with power off and in compliance with applicable electrical standards; use appropriately rated cable glands and connectors to maintain enclosure sealing. After mechanical and electrical installation, verify operation by actuating the button and confirming signal continuity or control response within the target control circuit.

Usage recommendations

To preserve IP66 protection and IK06 performance, inspect seals and mechanical fastening periodically, avoid using aggressive solvents on the actuator surface, and replace damaged units promptly. For installations in environments with frequent high-pressure washdowns, ensure cable entries and adjacent components meet equivalent ingress protection ratings.
