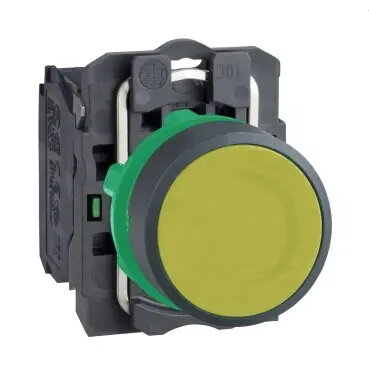

Schneider Electric XB5 Push Button, 22mm, Yellow, Spring Return, 1NO

The Schneider Electric XB5 push button is a robust and reliable control component engineered for seamless integration into industrial automation systems and control panels. Designed for standard 22mm mounting holes, this yellow actuator features a spring return mechanism, ensuring it automatically reverts to its original position after activation. With a 1NO (normally open) contact configuration, it provides a dependable electrical signal for various switching tasks. The unit is built to withstand harsh operating conditions, offering an IP66 rating that guarantees high resistance to dust and water ingress.

Advantages

This push button stands out due to its durable construction and high-quality materials, which ensure long-term operational stability in demanding environments. The spring return functionality simplifies user interaction, while the bright yellow color provides clear visual identification for operators. Its compact design allows for efficient space utilization within control cabinets, and the IP66 protection rating ensures that the internal components remain shielded from environmental contaminants, reducing the need for frequent maintenance.

Suitable for

• Industrial automation control panels
• Machine start and stop operations
• Signal activation in manufacturing lines
• Human-machine interface systems

When it may not be suitable

This push button is not intended for applications requiring a maintained or latching contact state, as the spring return mechanism will immediately reset the button. It is also not suitable for environments where the operating temperature or chemical exposure exceeds the specified industrial standards for plastic control components.

Key specifications

• Mounting diameter: 22 mm
• Actuator color: Yellow
• Contact type: 1NO (Normally Open)
• Operation type: Spring return
• Protection rating: IP66
• Dimensions: 30 mm width, 42 mm height, 52 mm depth

How to use

Installation involves inserting the push button into a pre-drilled 22mm hole on a control panel or enclosure. Secure the unit using the provided locking mechanism to ensure a tight fit. Connect the electrical wiring to the 1NO contact terminals according to your system's wiring diagram. Once installed, the button is ready for use; simply press the yellow actuator to close the circuit, and release it to allow the spring return to reset the button to its initial state.

What to consider before purchase

• Verify that your control panel has a 22mm mounting hole available.
• Ensure the 1NO contact configuration meets your specific circuit requirements.
• Confirm that the environmental conditions do not exceed the IP66 protection limits.
• Check the available depth behind the panel to accommodate the 52mm unit depth.

Usage recommendations

Regularly inspect the push button for any signs of physical damage or debris accumulation around the actuator to ensure smooth operation. Periodically test the electrical connection to verify that the 1NO contact is functioning correctly within your control system.
