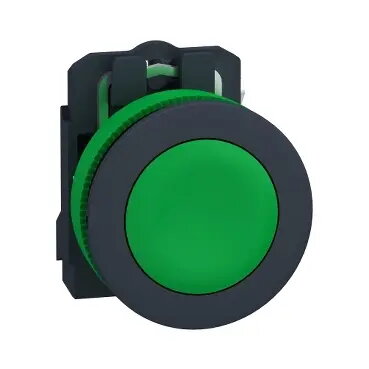

Schneider Electric XB5F Flush Push Button, Green, 1NO Contact

The Schneider Electric XB5F flush push button is a professional-grade control component engineered for industrial automation systems and control panels. As part of the renowned Harmony XB5 series, this green, non-illuminated button is designed for seamless integration into machinery and electrical cabinets. It features a robust 1NO contact configuration, providing reliable switching performance for various control and signaling tasks. The flush design ensures a sleek, low-profile appearance on the panel surface while maintaining high operational durability.

Advantages

This push button offers exceptional mechanical longevity and is built to withstand demanding industrial environments. Its flush-mounted design minimizes the risk of accidental activation and provides a clean, modern aesthetic for control interfaces. The component is engineered for easy installation into standard 30mm mounting cutouts, allowing for efficient assembly and maintenance in complex control systems. The high-quality materials used in its construction ensure consistent performance and resistance to wear over extended periods of use.

Suitable for

• Industrial automation control panels
• Machine start and stop operations
• Signaling and status indication systems
• Electrical equipment control interfaces

This push button may not be suitable for applications requiring illuminated status feedback, as this specific model is non-illuminated. Additionally, it is intended for standard industrial environments and may require additional protective enclosures if installed in areas with extreme chemical exposure or high-pressure washdown requirements.

Key specifications

• Contact configuration: 1NO
• Mounting diameter: 30 mm
• Button color: Green
• Series: Harmony XB5
• Width: 36.6 mm
• Depth: 55 mm
• Height: 42 mm

To install the Schneider Electric XB5F, insert the button unit into a pre-drilled 30mm cutout on your control panel. Secure the device using the provided locking mechanism to ensure a firm fit. Connect the electrical wiring to the 1NO contact terminals according to your circuit diagram. Ensure all connections are tightened to the specified torque to maintain electrical integrity and operational safety.

What to consider before purchase

• Verify that the 30mm mounting cutout matches your panel design
• Confirm that a 1NO contact configuration meets your circuit requirements
• Check if your application requires an illuminated button or a specific color coding

For optimal performance and safety, ensure that the push button is installed by qualified personnel in accordance with local electrical regulations. Regularly inspect the button for any signs of mechanical damage or debris accumulation to maintain smooth operation.
