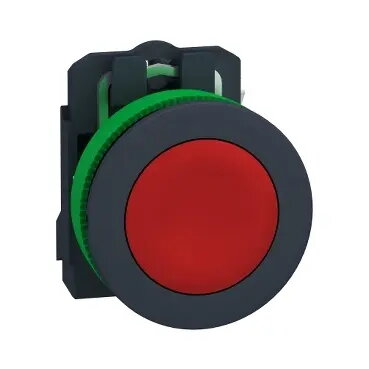

Schneider Electric Harmony XB5FA42 Flush Push Button, Red, Spring Return

The Schneider Electric Harmony XB5FA42 is a high-quality flush-mounted push button engineered for demanding industrial control environments. This component features a distinct red actuator with a reliable spring return mechanism, ensuring precise and responsive operation in automation systems. Designed for seamless integration into the Harmony XB5 series, it provides a sleek, low-profile aesthetic while maintaining robust performance standards required for modern machinery control panels.

Advantages

This push button offers exceptional durability and reliability due to its high-grade construction and ingress protection rating. The flush design minimizes the risk of accidental activation while providing a clean look on control panels. Its spring return functionality ensures consistent operation, and the IP66 rating guarantees that the internal components remain protected against dust, moisture, and water jets, making it suitable for challenging industrial settings.

Suitable for

• Industrial control panels and automation systems
• Machine operation and emergency stop signaling
• Control cabinets in manufacturing environments
• Human-machine interface (HMI) applications

When it may not be suitable

This push button is not intended for use in environments requiring specific hazardous area certifications or explosive atmospheres unless housed in an appropriate enclosure. It is also not suitable for applications requiring a latching or maintained contact state, as the spring return mechanism automatically resets the button after release.

Key specifications

• Actuator color: Red
• Mounting type: Flush-mounted
• Operation type: Spring return
• Protection rating: IP66
• Width: 36.6 mm
• Depth: 55 mm
• Height: 42 mm

How to use

The Schneider Electric Harmony XB5FA42 is designed for installation into standard 30 mm diameter mounting holes on control panels. Ensure the panel surface is clean and flat before inserting the button. Secure the component using the provided locking mechanism to ensure a tight seal. Once installed, connect the appropriate contact blocks to the rear of the actuator to integrate it into your electrical control circuit.

What to consider before purchase

• Verify that the panel thickness is compatible with the flush mounting requirements.
• Ensure that the required contact blocks are available for your specific circuit configuration.
• Check the environmental conditions of your installation site to confirm the IP66 rating is sufficient.

Usage recommendations

Regularly inspect the actuator for signs of mechanical wear or debris accumulation to ensure smooth operation. Periodically verify that the mounting nut remains tight to maintain the integrity of the IP66 seal against environmental contaminants.
