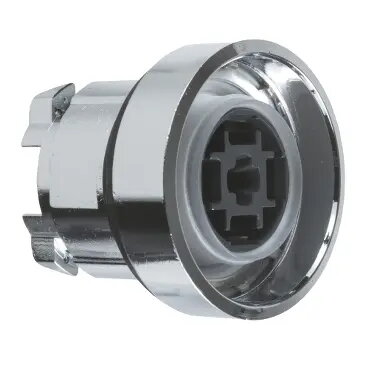

Button Schneider Electric ZB4 — IP66 protection, IK06 impact rating, 27 g

Schneider Electric ZB4 is a compact industrial control button designed for environments that demand dust and water resistance. With an IP66 protection rating and IK06 impact resistance, this control element provides consistent manual operation in harsh conditions. The button is lightweight and compact, making it suitable for integration into control panels, machines, and outdoor installations where space is limited and durable performance is required.

Advantages

The device combines high ingress protection with mechanical impact resilience to maintain function in dusty, wet, or mechanically challenging settings. Its compact dimensions and low weight simplify mounting and retrofit into existing control assemblies. The design supports reliable tactile actuation and long-term operation under frequent use scenarios.

Suitable for

• Industrial control panels and operator stations
• Machine control interfaces in manufacturing environments
• Outdoor installations and enclosures exposed to dust and water
• Applications requiring compact, lightweight manual controls

Key specifications

• Protection class: IP66 — dust-tight and protected against powerful water jets
• Impact resistance: IK06 — protection against medium mechanical impact
• Weight: approximately 27 g — lightweight for easy mounting
• Compact footprint: shallow depth and narrow width for space-constrained panels

How to use

Install the button into the appropriate cut-out in the control panel, ensuring correct orientation and secure fastening according to the panel manufacturer’s instructions. Make electrical connections using compatible connectors and wiring practices for the control system, and verify that seals and gaskets are correctly seated to preserve IP66 protection. After installation, perform a functional check to confirm reliable mechanical actuation and electrical continuity before placing the equipment into service.

Usage recommendations

For sustained IP66 performance, confirm that enclosure seals and cable entries are intact and that the button is installed in a compatible panel thickness. Avoid exposure to chemicals or solvents that can degrade sealing materials. Periodically inspect the actuator for damage to maintain IK06-level impact protection and reliable operation.
