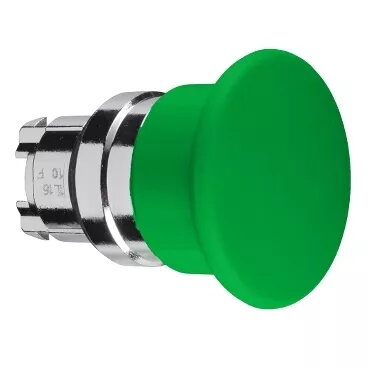

Schneider Electric ZB4BC3 Mushroom Head Push Button, Green, IP66

The Schneider Electric ZB4BC3 is a professional-grade mushroom head push button designed for integration into industrial control panels and automation systems. As part of the Harmony XB4 series, this green actuator combines a robust metal construction with an ergonomic design, ensuring reliable performance and ease of use in demanding operational environments. With an IP66 ingress protection rating, the device is fully protected against dust ingress and powerful water jets, making it suitable for harsh industrial settings.

Advantages

This push button offers exceptional durability due to its high-quality metal bezel construction, which withstands mechanical stress and frequent operation. The mushroom head design provides a large, easily accessible surface area for manual activation, enhancing operator efficiency and safety. Its modular design allows for seamless integration with various contact blocks and mounting accessories within the Harmony XB4 range, providing flexibility for complex control panel configurations. Furthermore, the IP66 rating ensures long-term reliability by preventing environmental contaminants from affecting internal components.

Suitable for

• Industrial machinery control panels
• Emergency stop or start-stop control circuits
• Automation systems in manufacturing plants
• Control stations in environments exposed to dust or moisture

This push button may not be suitable for applications requiring specific color-coded safety functions that mandate different colors, such as red for emergency stops. Additionally, it is not intended for use in explosive atmospheres unless installed within a certified explosion-proof enclosure.

Key specifications

• Color: Green
• Head type: Mushroom
• Ingress protection: IP66
• Material: Metal bezel
• Series: Harmony XB4

To use the Schneider Electric ZB4BC3, mount the actuator into a standard 22 mm diameter hole on a control panel or enclosure. Secure the fixing collar firmly to ensure the device is properly seated. Once mounted, attach the appropriate contact blocks to the rear of the actuator to complete the electrical circuit. Ensure that all connections are tightened according to the specified torque requirements to maintain the integrity of the installation.

What to consider before purchase

• Verify that the 22 mm mounting hole diameter matches your control panel layout.
• Ensure the green color aligns with your specific operational or safety labeling requirements.
• Check compatibility with your existing Harmony XB4 contact blocks and accessories.

For optimal performance and longevity, perform regular inspections of the push button to ensure the actuator moves freely and the seal remains intact. Avoid using harsh chemical solvents for cleaning, as these may degrade the material properties over time.
