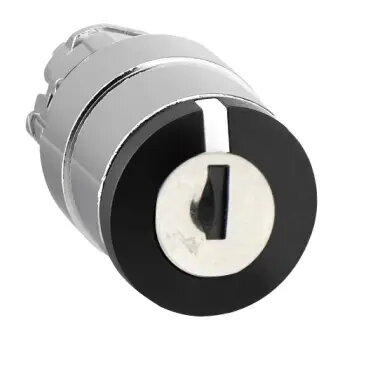

Schneider Electric ZB4BG03 Key Selector Switch Head 3-Position Maintained

The Schneider Electric ZB4BG03 is a high-quality key-operated selector switch head engineered for industrial control panels and automation systems. Designed for standard 22mm mounting holes, this robust component provides a secure and reliable interface for managing machine operations. It features a 3-position maintained mechanism and utilizes a Ronis 455 key lock, ensuring that only authorized personnel can change the switch state, thereby enhancing operational safety and preventing unauthorized access.

Advantages

This selector switch head is built to withstand harsh industrial conditions, offering exceptional durability and long-term performance. Its IP66 rating confirms that the unit is fully protected against dust ingress and powerful water jets, making it an ideal choice for environments where equipment is exposed to moisture or debris. The ergonomic design and smooth mechanical action ensure precise control, while the high-quality materials used in its construction guarantee resistance to mechanical wear and environmental stress.

Suitable for

• Industrial automation control panels
• Machine safety and access control systems
• Equipment requiring restricted operation via key access
• Outdoor or wash-down industrial environments

When it may not be suitable

This product is not suitable for applications requiring non-maintained or spring-return switching, as it is specifically designed for maintained positions. Additionally, it is intended for 22mm mounting diameters and cannot be installed in panels with different hole sizes without appropriate adapters.

Key specifications

• Mounting diameter: 22 mm
• Operation type: 3-position maintained
• Key lock type: Ronis 455
• Protection rating: IP66
• Weight: 98 g
• Color: Black

How to use

To install the ZB4BG03, insert the switch head into a pre-drilled 22mm hole on your control panel and secure it using the provided locking nut. Once mounted, attach the appropriate contact blocks to the rear of the head to complete the electrical circuit. To operate, insert the Ronis 455 key and rotate it to the desired position. The switch will remain in the selected position until manually moved again by the operator.

What to consider before purchase

• Verify that your control panel has a 22mm mounting hole
• Ensure the 3-position maintained logic matches your control requirements
• Confirm that the Ronis 455 key lock meets your facility's security standards
• Check if additional contact blocks are required for your specific wiring configuration

Usage recommendations

Regularly inspect the key lock mechanism for debris and ensure the mounting nut remains tight to maintain the IP66 seal integrity. Always keep spare keys in a secure location to prevent operational downtime.
