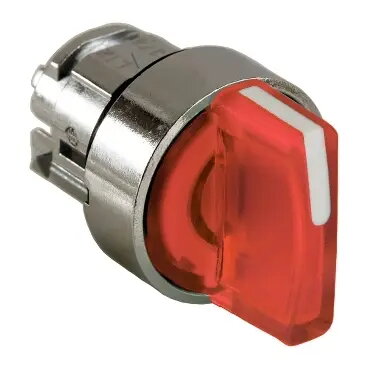

Schneider Electric ZB4BK1543 Illuminated 3-Position Selector Switch Head

The Schneider Electric ZB4BK1543 is a professional-grade 3-position selector switch head engineered for integration into industrial control panels and automation systems. This component features a robust design with integrated illumination, allowing for clear visual status indication in various operational environments. The inclusion of a spring-return mechanism ensures precise control and reliable switching performance, making it a dependable choice for demanding industrial applications where durability and consistent feedback are essential.

Advantages

This selector switch head offers superior protection against environmental factors, boasting an IP66 rating that guarantees resistance to dust and high-pressure water jets. Its compatibility with universal LED blocks provides flexibility in lighting configurations, allowing users to customize the visual output to suit specific safety or operational requirements. The lightweight construction combined with high-quality materials ensures long-term reliability and ease of installation in standard control panel cutouts.

Suitable for

• Industrial automation control panels
• Machine operation interfaces
• Process control systems
• Emergency or status signaling setups

When it may not be suitable

This product is designed specifically for industrial control panels and may not be suitable for residential electrical installations or environments requiring specialized explosion-proof certifications. It is intended for use with compatible control blocks and cannot function as a standalone switch without the necessary contact and LED modules.

Key specifications

• Positions: 3-position selector
• Protection rating: IP66
• Illumination: Compatible with universal LED blocks
• Mechanism: Spring-return
• Weight: 36 g

How to use

To install the ZB4BK1543, insert the switch head into a standard 22 mm mounting hole on your control panel and secure it using the provided locking nut. Once mounted, attach the appropriate contact blocks and a universal LED module to the rear of the head. Ensure all connections are tightened according to the manufacturer's torque specifications to maintain the integrity of the IP66 seal. The switch can then be operated by rotating the selector to the desired position.

What to consider before purchase

• Verify that your control panel has a standard 22 mm mounting diameter.
• Ensure you have the necessary contact blocks and LED modules, as these are typically sold separately.
• Confirm that the spring-return functionality aligns with your specific control logic requirements.

Usage recommendations

Regularly inspect the switch head for any signs of physical damage or debris accumulation to ensure the spring-return mechanism remains smooth and the illumination remains visible. Ensure that the panel seal is properly seated during installation to maintain the IP66 ingress protection rating.
