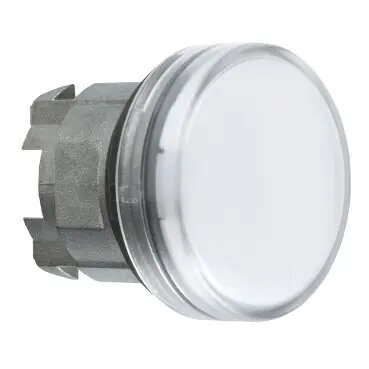

Schneider Electric ZB4BV01 Indicator Light Head 22mm White

The Schneider Electric ZB4BV01 is a professional-grade 22mm white indicator light head engineered for integration into industrial control panels and automation systems. This component serves as a reliable visual signaling device, allowing operators to monitor machine status and operational processes effectively. Built with high-quality materials, it is designed to withstand the rigors of demanding industrial environments while maintaining consistent performance.

Advantages

The primary advantage of this indicator light head is its robust construction, which ensures long-term durability and reliability in harsh conditions. Its standardized 22mm mounting diameter makes it highly compatible with a wide range of existing control panels and enclosures. By utilizing the common BA 9s lamp base, the unit offers flexibility in light source selection, allowing for easy maintenance and replacement of bulbs as needed. The clear white lens provides excellent visibility for status indication, contributing to safer and more efficient machine operation.

Suitable for

• Industrial control panels
• Automation and process control systems
• Machine status monitoring
• Electrical distribution boards
• Human-machine interface (HMI) panels

When it may not be suitable

This product is designed specifically for use with BA 9s base lamps and may not be compatible with integrated LED modules or other specialized lighting technologies. It is intended for industrial control applications and is not suitable for residential lighting or outdoor environments without appropriate protective enclosures.

Key specifications

• Mounting diameter: 22 mm
• Lens color: White
• Compatible lamp base: BA 9s
• Weight: 27 g

How to use

To install the indicator light head, insert the unit into a standard 22mm hole on your control panel and secure it using the provided locking mechanism. Once mounted, insert a compatible BA 9s bulb into the rear of the head. Ensure that the electrical connections are properly wired according to your system's schematic before applying power to the circuit.

What to consider before purchase

• Verify that your control panel has a 22mm mounting cutout.
• Ensure you have a compatible BA 9s bulb available for installation.
• Check the environmental requirements of your installation site to ensure the component's durability is sufficient.

Usage recommendations

For optimal performance and longevity, ensure that the indicator light head is installed in a clean, dry environment and that all electrical connections are tightened to the manufacturer's specifications to prevent vibration-related issues.
