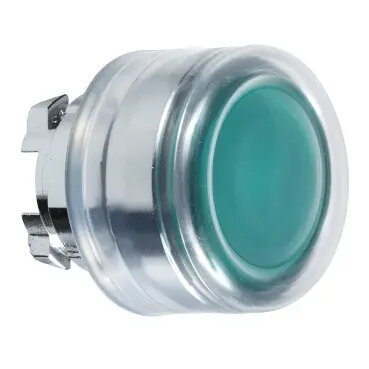

Schneider Electric ZB4BW533 Illuminated Push Button Head, Green, Spring Return

The Schneider Electric ZB4BW533 is a high-quality illuminated push button head designed for integration into industrial control panels and automation systems. This component features a vibrant green finish and a reliable spring return mechanism, ensuring consistent performance in demanding human-machine interface applications. Engineered for durability and clarity, it serves as an essential interface element for operators, providing clear visual status indication through its compatibility with universal LED lighting modules.

Advantages

This push button head stands out due to its robust construction and seamless compatibility with standard industrial components. The spring return functionality allows for intuitive operation, automatically resetting the button to its initial position after each press. Its design prioritizes visibility and ease of use, making it an ideal choice for complex control environments where rapid and accurate status identification is critical for operational efficiency.

Suitable for

• Industrial control panels
• Automation and process control systems
• Human-machine interface (HMI) consoles
• Emergency or status signaling applications

When it may not be suitable

This product is a push button head only and requires a compatible contact block and LED module to function. It is not suitable for applications requiring a latching or maintained contact action, as the spring return mechanism is designed specifically for momentary operation.

Key specifications

• Color: Green
• Operation type: Spring return
• Lighting: Compatible with universal LED modules
• Weight: 31 g
• Installation depth: 34 mm

How to use

To install the Schneider Electric ZB4BW533, mount the head onto a standard 22 mm diameter panel cutout. Once secured, attach the appropriate contact block and a universal LED module to the rear of the head. Ensure all connections are tightened according to the manufacturer's guidelines to maintain the integrity of the assembly. The button is activated by manual pressure and will automatically return to its original position once released.

What to consider before purchase

• Verify that your control panel has a standard 22 mm mounting hole.
• Ensure you have the necessary contact blocks and LED modules, as they are not included with the head.
• Confirm that the momentary spring return action meets your specific control requirements.

Usage recommendations

Regularly inspect the push button head for signs of wear or debris accumulation to ensure the illumination remains clear and the mechanical return action stays smooth.
