header-product Schneider Electric ZB5AV04 Pilot Light Head for BA9s Bulb 22mm Red
7.49 €

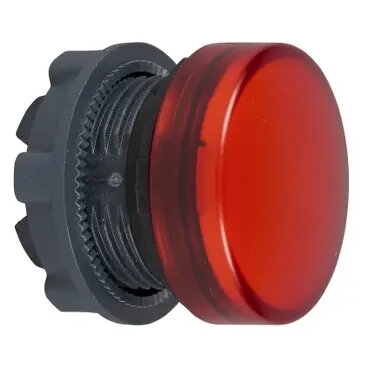

Schneider Electric ZB5AV04 Pilot Light Head for BA9s Bulb 22mm Red

Schneider Electric ZB5AV04 Pilot Light Head Photo 1
Schneider Electric ZB5AV04 Pilot Light Head Photo 2
Schneider Electric ZB5AV04 Pilot Light Head Photo 3
Schneider Electric ZB5AV04 Pilot Light Head Photo 4
Schneider Electric ZB5AV04 Pilot Light Head Photo 5
Schneider Electric ZB5AV04 Pilot Light Head Photo 6
Schneider Electric ZB5AV04 Pilot Light Head Photo 7
Schneider Electric ZB5AV04 Pilot Light Head Photo 8
Schneider Electric ZB5AV04 Pilot Light Head Photo 9
Schneider Electric ZB5AV04 Pilot Light Head Photo 10
Schneider Electric ZB5AV04 Pilot Light Head Photo 1
Schneider Electric ZB5AV04 Pilot Light Head Photo 2
Schneider Electric ZB5AV04 Pilot Light Head Photo 3
Schneider Electric ZB5AV04 Pilot Light Head Photo 4
Schneider Electric ZB5AV04 Pilot Light Head Photo 5
Schneider Electric ZB5AV04 Pilot Light Head Photo 6
Schneider Electric ZB5AV04 Pilot Light Head Photo 7
Schneider Electric ZB5AV04 Pilot Light Head Photo 8
Schneider Electric ZB5AV04 Pilot Light Head Photo 9
Schneider Electric ZB5AV04 Pilot Light Head Photo 10
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Schneider Electric ZB5AV04 Pilot Light Head for BA9s Bulb 22mm Red

{{email}}
You keep track of price changes

Schneider Electric ZB5AV04 Pilot Light Head for BA9s Bulb 22mm Red

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Schneider Electric ZB5AV04 is a high-quality pilot light head designed for 22mm mounting holes. Compatible with BA9s base bulbs, this red indicator head features an IP66 protection rating, ensuring reliable performance in demanding industrial environments. It is an essential component for control panels and automation systems, providing clear visual status indication.
Available for order: 8 pcs.
Warranty: 2 Years
SKU: 12463300
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
14.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
17.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 €
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
17.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Schneider Electric ZB5AV04 is a professional-grade pilot light head designed for integration into 22mm mounting holes. This component serves as a reliable visual indicator for control panels, machinery, and automation systems, featuring a distinct red lens that ensures high visibility. Engineered for durability, it is compatible with standard BA9s base bulbs, allowing for flexible light source selection based on specific voltage and brightness requirements.

Advantages

This pilot light head offers robust construction suitable for demanding industrial applications. Its design ensures a secure fit in standard 22mm panel cutouts, facilitating straightforward installation. The high-quality materials used in its manufacturing provide long-term reliability, while the red color provides clear status signaling for operators. Furthermore, the unit is built to withstand harsh conditions, maintaining consistent performance in various operational environments.

Suitable for

  • Control panels and electrical distribution boards
  • Industrial automation and machinery status monitoring
  • Emergency stop or alarm signaling systems
  • Human-machine interface (HMI) panels

When it may not be suitable

This product is designed exclusively for use with BA9s base bulbs and cannot be used with LED blocks that have integrated non-replaceable light sources. It is not intended for outdoor environments where it may be exposed to direct sunlight for extended periods, which could potentially affect the color clarity of the lens over time.

Key specifications

  • Mounting diameter: 22 mm
  • Bulb base compatibility: BA9s
  • Lens color: Red
  • Ingress protection rating: IP66
  • Weight: 18 g

How to use

To install the pilot light head, insert the unit into a pre-drilled 22mm hole on your control panel and secure it using the provided locking nut. Once mounted, insert a compatible BA9s bulb into the rear of the head. Ensure that the electrical connections are properly wired to the bulb socket according to your system's voltage requirements. Always verify that the power is disconnected before performing any installation or maintenance tasks.

What to consider before purchase

  • Verify that your control panel has a standard 22mm mounting hole.
  • Ensure you have a compatible BA9s bulb available for the desired voltage.
  • Check that the IP66 rating meets the environmental requirements of your installation site.

Usage recommendations

For optimal performance and longevity, ensure the pilot light head is tightened securely to maintain the IP66 seal against dust and moisture. Regularly inspect the bulb for signs of wear and replace it promptly to ensure continuous visual status indication.
All features
Weight:
0.018 kg
Storage temperature (T-T):
-40 - 70
Package weight:
16 g
Operating temperature (T-T):
-40 - 70
Compatible products:
BA 9s
Package depth:
34 mm
Package height:
45 mm
Package width:
54 mm
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP66
IK code:
IK05
Product type:
Button
Quantity per pack:
1 pc(s)
Overvoltage category:
Class II
