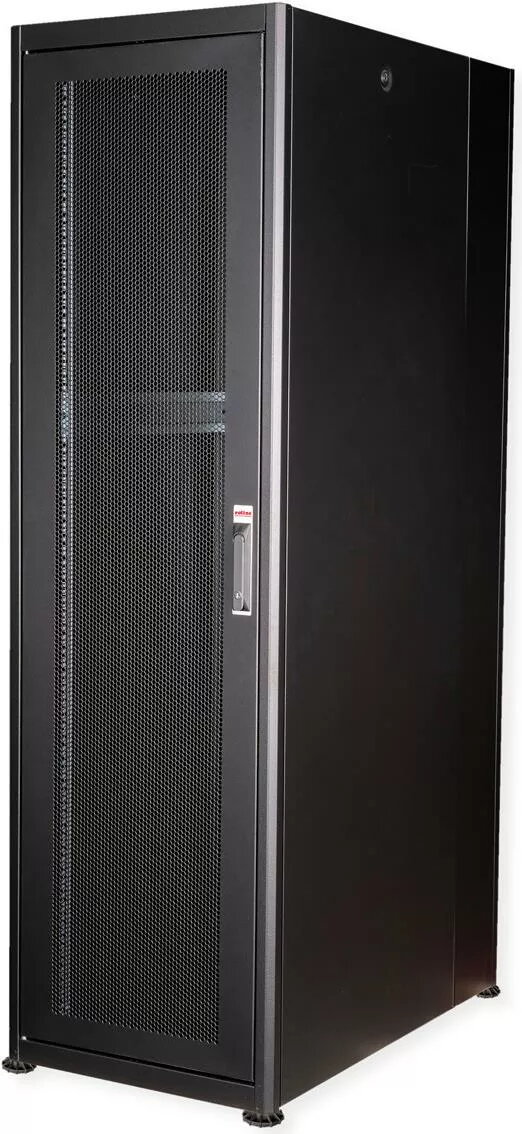

Freestanding rack ROLINE 19-inch Server Cabinet Basic 42U 600x1000mm black

The ROLINE 19-inch Server Cabinet Basic 42U 600x1000mm black is a freestanding rack designed for efficient and cost-effective network and server installation. Built from robust steel with sheet thickness up to 1.5 mm, the cabinet includes two pairs of galvanised 19" profile rails that are reversible and depth-adjustable, removable side and rear panels, and a lockable removable front door. Cable inlets are positioned in the base chassis at the rear centre and protected by a screwed cover plate; larger enclosures include additional side and roof inlets. The roof chassis provides a punched area for installing a fan module. The cabinet is finished with electrostatic powder coating in black (RAL 9005) and has an IP20 rating for indoor use.

Advantages

The cabinet provides a high load capacity (600 kg) in a compact 42U, 600x1000 mm footprint while remaining cost-efficient. Removable panels and a changeable door hinge simplify access and maintenance. Reversible, depth-adjustable galvanised rails and integrated cable inlets support flexible equipment mounting and tidy cable management. The robust steel construction and powder-coated finish offer durable protection for installed equipment.

Suitable for

• Small to medium server rooms and network closets
• IT equipment racks for switches, patch panels and servers
• Indoor installations requiring up to 600 kg static load
• Environments where modular access and cable entry flexibility are needed

Key specifications

• Form factor: 19-inch server cabinet, 42U
• External dimensions (W x D): 600 x 1000 mm
• Material: steel, sheet thickness up to 1.5 mm
• Weight capacity: up to 600 kg
• Protection rating: IP20 (indoor use)
• Finish: electrostatic powder coating, black (RAL 9005)
• Rail configuration: two pairs galvanised 19" profile rails, reversible and depth-adjustable
• Access features: removable side and rear panels, lockable removable front door, changeable door hinge
• Cable management: base rear-centre inlet with screwed cover; additional side and roof inlets on wider enclosures; roof punched area for fan module
• Net weight: 94 kg
• Brand / MPN / EAN: Secomp / 26.21.0210 / 7630049602137

How to use

Place the freestanding cabinet on a stable, level indoor surface and adjust the feet for correct leveling. Remove side or rear panels as needed to route cables and install equipment. Mount devices on the 19" profile rails, setting the rail depth according to the device dimensions and securing equipment with appropriate rackmount hardware. Use the roof and base cable inlets to guide cabling and close openings with the supplied covers. If required, change the door hinge to suit the room layout and install a fan module in the punched area of the roof chassis.

Usage recommendations

For safe operation, distribute load evenly across the rack and respect the 600 kg maximum static load. Ensure adequate ventilation and maintain clearance around the cabinet for cable routing and service access. Use appropriate grounding and follow local installation standards.
