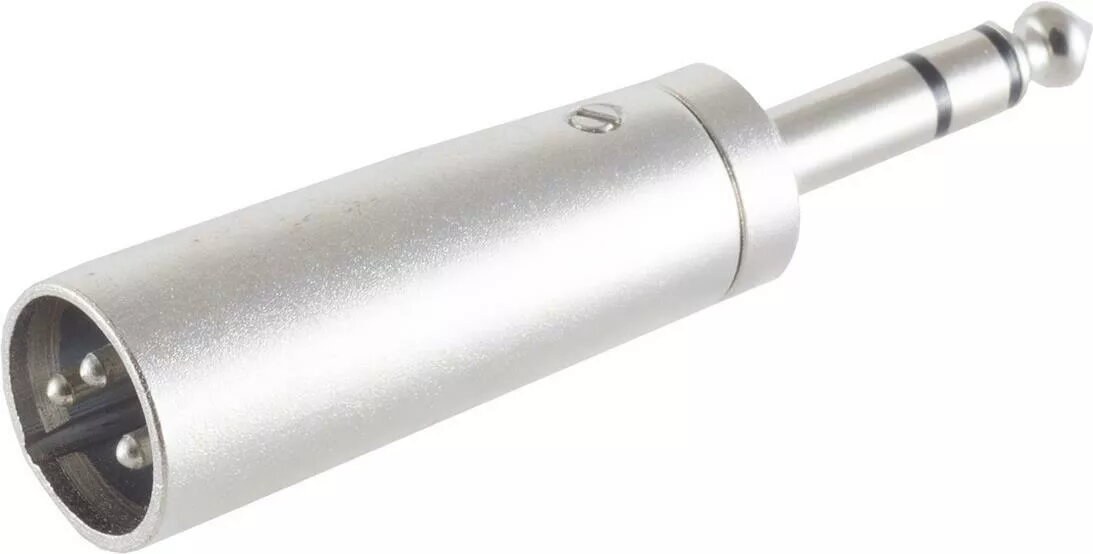

Audio adapter ShiverPeaks XLR to 6.3mm stereo 55034 — balanced XLR to 6.3mm TRS connection

ShiverPeaks 55034 is an XLR to 6.3 mm stereo adapter designed to convert a 3-pin balanced XLR output into a 6.3 mm TRS stereo jack. The adapter provides a passive, compact link between balanced microphone, mixer or line outputs and devices that accept a 6.3 mm TRS connection such as instrument inputs, headphone amps or amplifier channels. It is intended for situations that require a straightforward balanced-to-TRS interface without active electronics.

Advantages

The adapter offers a compact and passive solution that preserves the balanced signal routing when connecting XLR sources to TRS jacks. Its simple design eliminates the need for additional cables or active converters, making it easy to install and remove. The product is suitable for tight stage setups and studio patching where space and simplicity are priorities.

Suitable for

• Connecting balanced microphone or mixer outputs to 6.3 mm TRS instrument or amplifier inputs
• Stage patching and live sound setups requiring balanced-to-TRS conversion
• Studio routing where a passive XLR-to-TRS connection is needed for monitoring or signal distribution

Key specifications

• Connector type: 3-pin XLR (female) to 6.3 mm TRS (male)
• Signal path: passive, balanced to TRS stereo wiring
• Typical applications: microphone, mixer and balanced line outputs to TRS inputs
• Form factor: compact inline adapter for direct connection

How to use

Insert the XLR end into the balanced output of the source device (microphone, mixer or line output) and plug the 6.3 mm TRS end into the target input (instrument input, headphone amplifier or amplifier channel). Ensure both devices are powered down or volumes are reduced during connection to avoid transient noise. Once connected, adjust levels at the source and destination to achieve the desired signal level.

Usage recommendations

Use the adapter for short, direct connections and avoid relying on it as a replacement for properly wired stage snakes or long balanced cable runs. For critical applications where impedance matching or isolation is required, consider using dedicated DI boxes or active converters.
