Adapter ShiverPeaks 71233-8 – connectivity 8/8 to 2, model 71233-8

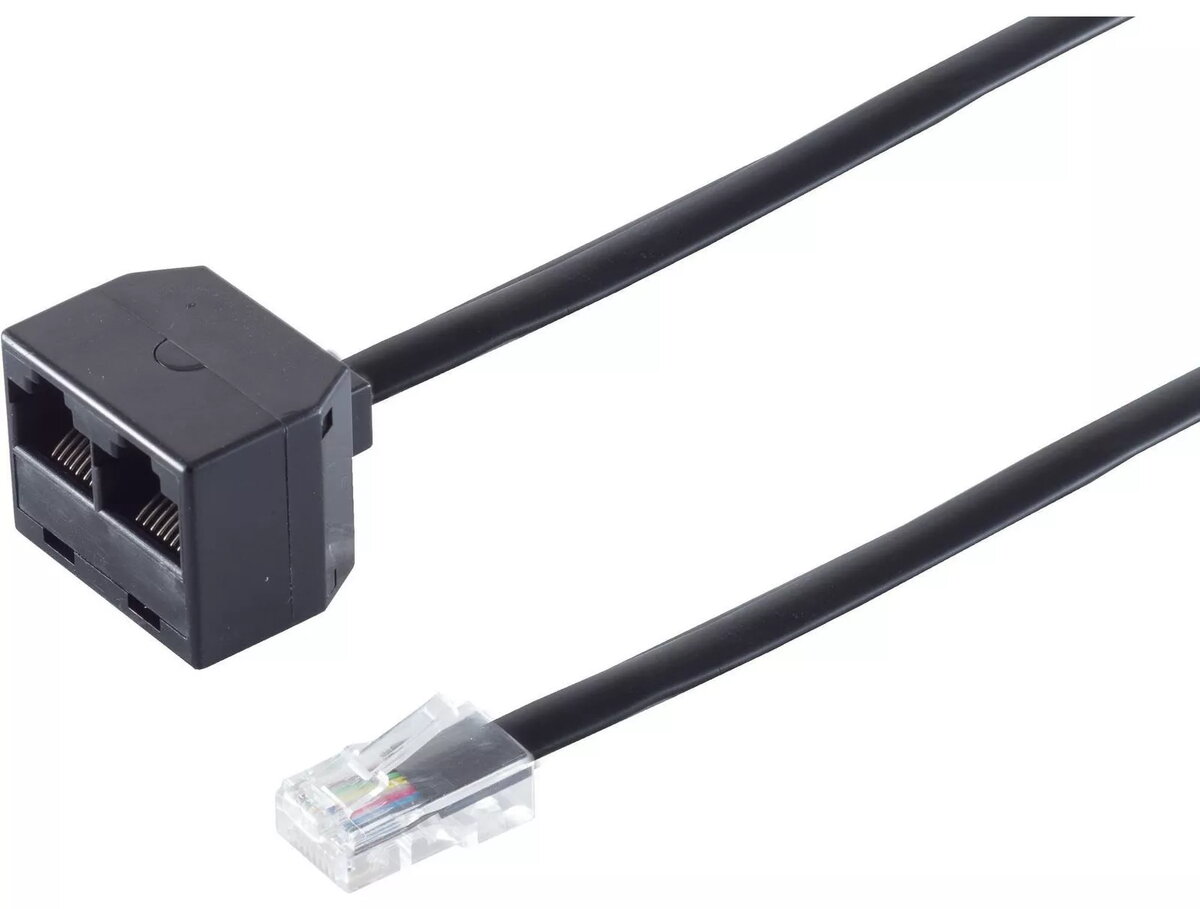

Adapter ShiverPeaks 71233-8 is a connectivity adapter that converts an 8/8 interface to a 2-conductor output. Designed for situations where an eight-contact modular connection must be reduced to two contacts, this adapter enables the physical and electrical adaptation of cabling between devices with different port counts. The product is intended for signal and connection conversion while preserving impedance characteristics required in structured cabling environments.

Advantages

The adapter offers a compact solution for reducing an 8/8 modular connection to a 2-conductor output while maintaining an approximate characteristic impedance of 100 ohms. Its short cable length (around 0.1 m) keeps signal path length minimal and simplifies installation in tight spaces. The design facilitates compatibility between legacy multi-conductor equipment and modern or simplified devices that accept fewer channels, reducing the need for full rewiring.

Suitable for

• Simplifying cabling where only two conductors are required from an eight-conductor connector
• Connecting legacy equipment with 8/8 modular ports to devices with 2-conductor inputs
• Temporary test setups and installations that require short adaptation cables
• Environments where maintaining near 100 ohm impedance is needed for signal integrity

Key specifications

• Connectivity conversion: 8/8 to 2-conductor
• Characteristic impedance: approximately 100 ohms
• Cable length: approximately 0.1 m
• Connector types: modular (Western/RJ-style) multi-contact coupler to 2-conductor output
• Form factor: inline adapter / short adapter cable

How to use

Connect the 8/8 modular end of the adapter to the source device or cable assembly that presents the eight-conductor interface, then attach the 2-conductor end to the target device or port. Ensure connectors are fully seated to maintain reliable electrical contact. The adapter is intended for inline use and is suitable for short-term or permanent connections where a reduction in conductor count is required. Verify signal compatibility and wiring assignment before powering connected equipment.

Usage recommendations

Use the adapter in low-latency, short-run applications and avoid stretching or bending the cable excessively. Confirm the required impedance matching and wiring scheme for the specific signals in your installation to prevent signal degradation.
