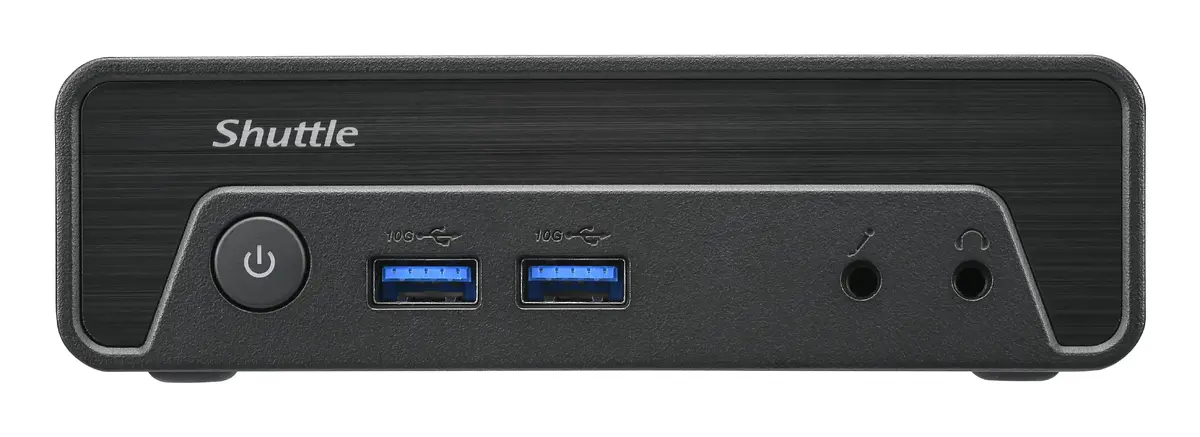

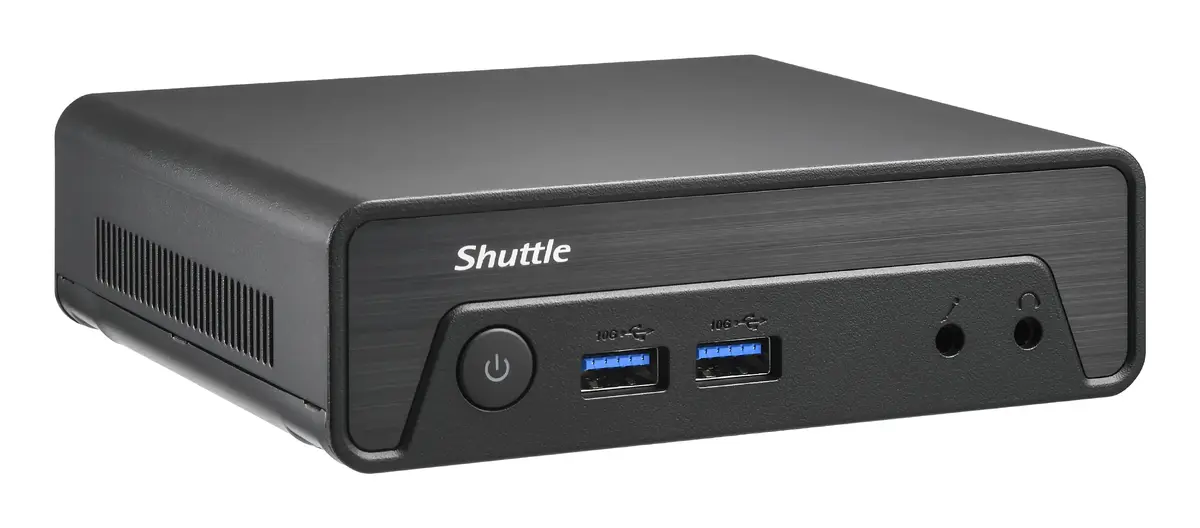

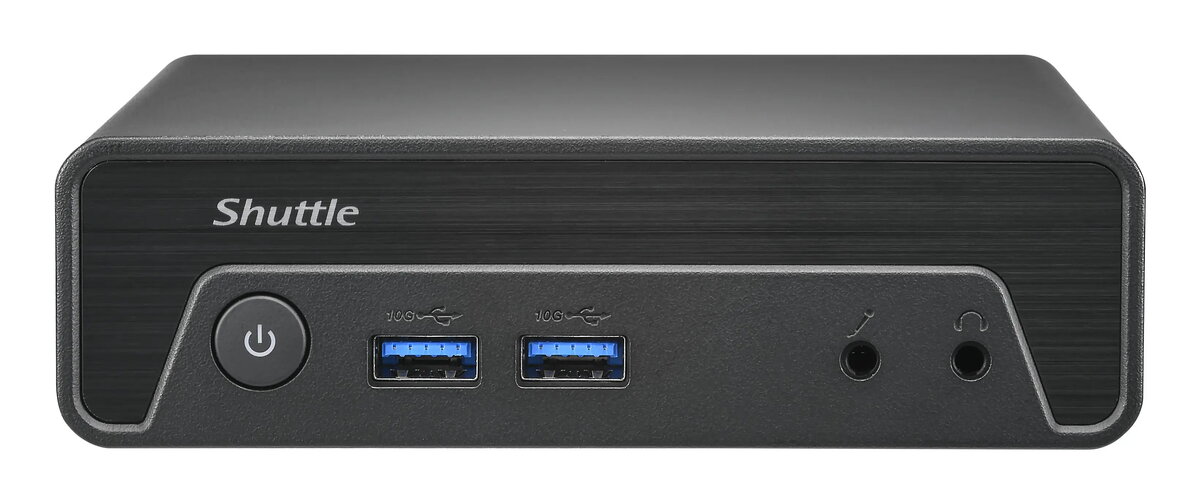

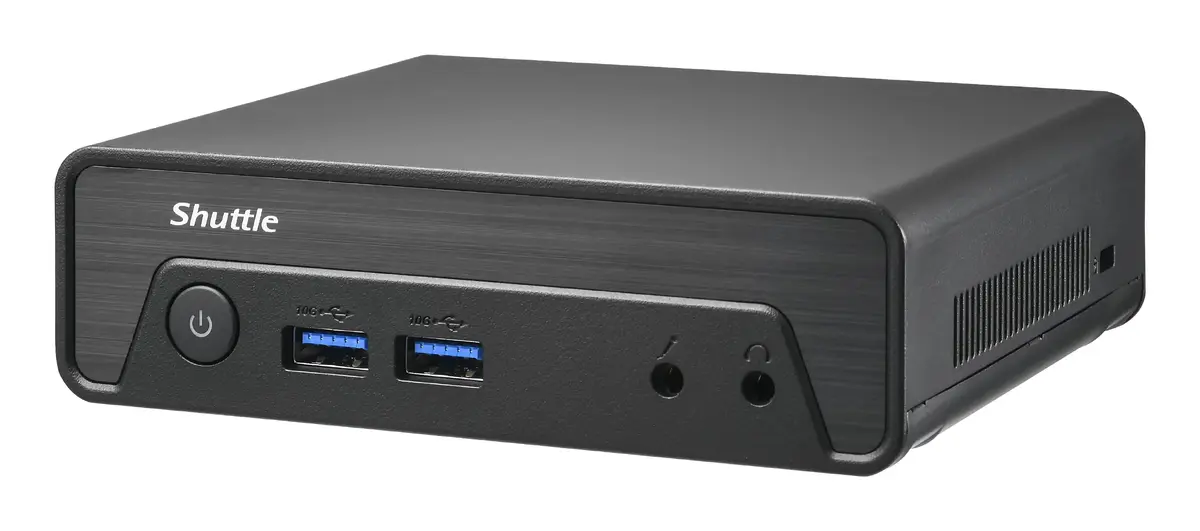

Mini PC Shuttle NE1010BA Intel N100 8GB DDR4 128GB SSD Windows 11 Pro

Antenna design:

Internal

Other features

Chassis type: The type of rigid framework onto which is the hosuing for device components.

Slim PC

Power supply: The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.

65 W

Display included: This product includes a display.

No

Market positioning: Under which category can the device be positioned in the market, e.g. camera phone.

Business

Technical details

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

BSMI, CB, CE, Federal Communications Commission (FCC), cTUVus, VCCI, RCM, RoHS, UKCA

Logistics data

Harmonized System (HS) code:

84714900

Power

Power supply input voltage:

100 - 240

Power supply input frequency: The frequency of the electricity, usually measured in Hertz (Hz), which is supplied by the power supply. Mains electricity in many parts of the world is 50Hz.

50/60

Performance

Trusted Platform Module (TPM) version:

2.0

Product type: The sub-category of the product.

Mini PC

Optical drive type: An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.

No

Trusted Platform Module (TPM):

Yes

BIOS type: The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS.

UEFI AMI

Design

VESA mounting:

Yes

Cable lock slot: Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.

Yes

Cable lock slot type:

Kensington

Housing material: What the casing of the product is made of.

Plastic

Product colour: The colour e.g. red, blue, green, black, white.

Black

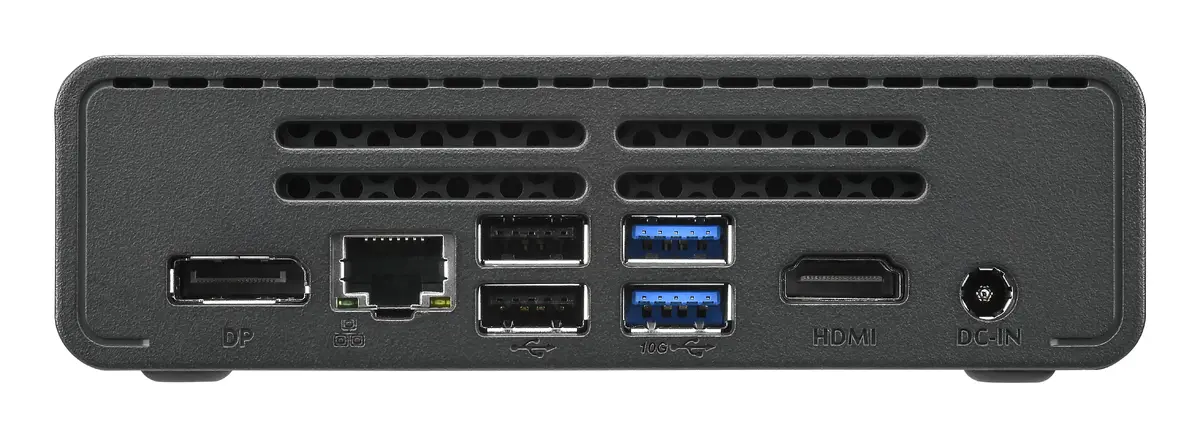

Ports & interfaces

Thunderbolt 3 ports quantity:

0

DC-in jack: The socket/plug where the DC electricity supply connects to the device.

Yes

Headphone outputs: Number of sockets /ports where headphones are connected.

1

Microphone in: The socket where a microphone is connected to the device.

Yes

DisplayPort version:

1.4

HDMI ports quantity: The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

1

USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

2

DisplayPorts quantity: Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.

1

HDMI version:

2.0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

4

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:

0

Network

Bluetooth version: The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).

5.2

Bluetooth: Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.

Yes

WLAN controller model:

Intel Wi-Fi 6 AX200

WLAN controller manufacturer:

Intel

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Yes

Wi-Fi standards: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.

10, 100, 1000

Top Wi-Fi standard: Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 6 (802.11ax)

Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Yes

Graphics

On-board graphics card: Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.

Yes

Discrete graphics card model: A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.

Not available

On-board GPU manufacturer:

Intel

Discrete graphics card:

No

Weight & dimensions

Volume: The amount of a substance contained.

0.6 L

Package weight: Weight of the packaged product.

1500 g

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.6 kg

Height: The measurement of the product from head to foot or from base to top.

39 mm

Depth: The distance from the front to the back of something.

135 mm

Width: The measurement or extent of something from side to side.

115 mm

Storage

SSD form factor: The size of the solid-state drive, given in inches

M.2

M.2 SSD size:

2280 (22 x 80 mm)

SSD interface: The type of interface(s) with which the Solid State Drive is connected to other hardware.

SATA III

SSD capacity:

128 GB

Number of SSDs installed:

1

Total SSDs capacity:

128 GB

Number of storage drives installed: Amount of storage drives built into the device.

1

Storage media: Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).

SSD

Total storage capacity: The total amount of data that can be stored on the device.

128 GB

Sustainability

Sustainability certificates:

ENERGY STAR, ErP

Processor

Processor cache type:

Smart Cache

Processor cache:

6 MB

Processor threads:

4

Processor boost frequency: The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.

3.4 GHz

Processor cores: The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).

4

Processor model: The model number for the processor in a computer.

N100

Processor manufacturer: The manufacturer that produced the processor.

Intel

Operational conditions

Operating relative humidity (H-H):

10 - 90

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

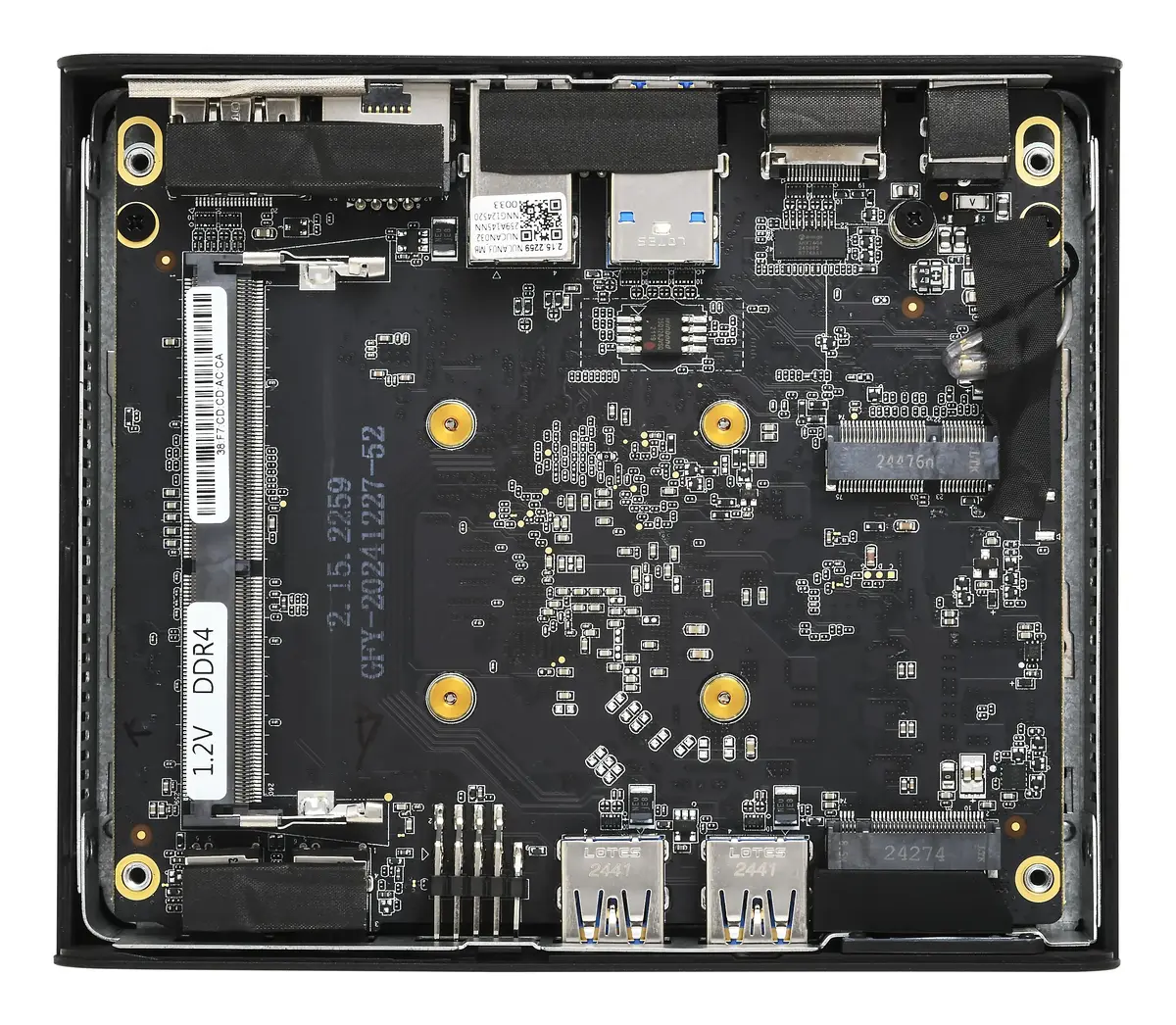

Memory

Memory channels:

Single-channel

Memory data transfer rate:

3200 MT/s

Memory slots: Number and type of memory expansion slots, including connector and memory module descriptions.

1x SO-DIMM

Maximum internal memory: The maximum internal memory which is available in the product.

16 GB

Memory layout (slots x size): The slots and size of the memory for the CPU.

1 x 8

Internal memory type: The type of internal memory such as RAM, GDDR5.

DDR4-SDRAM

Internal memory: A computer's memory which is directly accessible to the CPU.

8 GB

Software

Operating system architecture: The way in which the operating system of a computer/smartphone (32-bit/64-bit) is set up.

64-bit

Operating system installed: Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.

Windows 11 Pro
