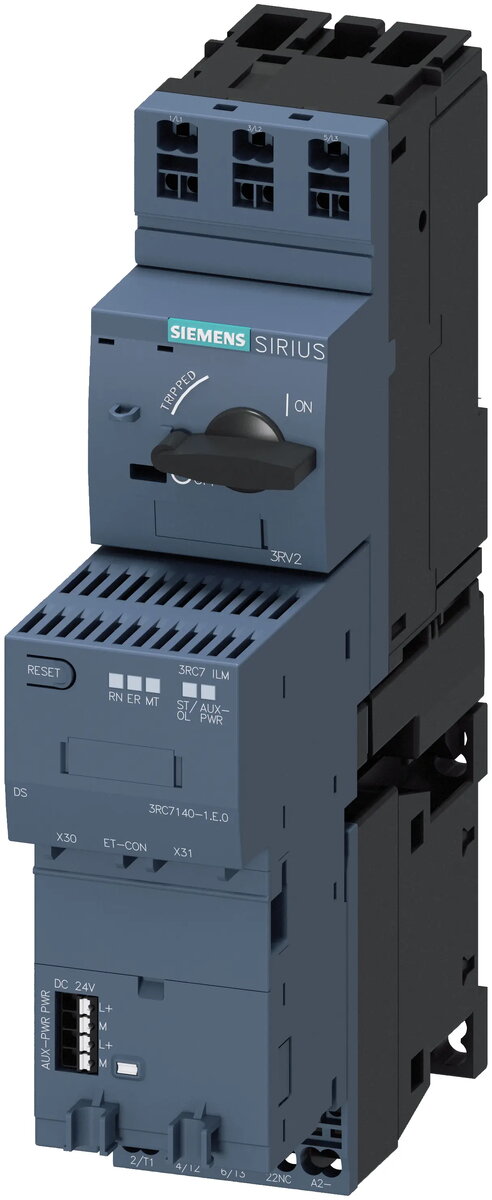

Siemens ILF HF Direct Starter 1.2-12 A (S00)

The Siemens ILF HF Direct Starter 1.2-12 A (S00) is an advanced intelligent load feeder designed for the efficient protection and control of electric motors within the SIMATIC ET 200SP automation system. This High Feature unit integrates a circuit breaker, a contactor, and an intelligent link module into a single, pre-assembled device. By providing real-time data acquisition and status monitoring, it ensures high transparency at the field level, allowing for precise diagnostics and proactive maintenance management.

Advantages

This direct starter significantly simplifies control cabinet architecture by reducing the complexity of wiring and installation. Its integration with the TIA Portal allows for streamlined parameterization, which accelerates commissioning and system expansion processes. The High Feature version offers comprehensive monitoring capabilities, including voltage and power measurement, which helps in identifying faults or deviations early. By facilitating preventive maintenance through integrated overload functions and diagnostic data, it enhances overall system reliability and operational uptime.

Suitable for

• Motor protection and control in industrial automation
• Applications requiring real-time field-level diagnostics
• Systems integrated with SIMATIC ET 200SP
• Preventive maintenance environments

This device may not be suitable for applications requiring current ranges outside of the 1.2-12 A specification or for environments where the S00 frame size is not compatible with the existing mechanical layout. It is specifically designed for use within the ET 200SP ecosystem and may not be appropriate for standalone installations without the necessary additional adapters.

Key specifications

• Current range: 1.2-12 A
• Frame size: S00
• System compatibility: SIMATIC ET 200SP
• Maximum voltage: 690 V AC
• Coordination type: 1
• Integrated functions: Overload protection, voltage and power measurement

Installation involves mounting the pre-assembled unit into the ET 200SP system. Once physically installed, the device is configured and parameterized via the TIA Portal software. Ensure that the power and communication cables are correctly connected to the intelligent link module to enable data transmission and monitoring capabilities. Regular checks of the diagnostic data provided by the unit are recommended to maintain optimal performance.

What to consider before purchase

• Verify that the motor current falls within the 1.2-12 A range
• Ensure compatibility with the ET 200SP system architecture
• Check if the High Feature functionality meets your monitoring requirements
• Confirm space availability for the S00 frame size in the control cabinet

Usage recommendations: Always ensure that the device is installed by qualified personnel in accordance with local electrical safety standards. Regularly monitor the diagnostic feedback in the TIA Portal to identify potential maintenance needs before they lead to system downtime.
