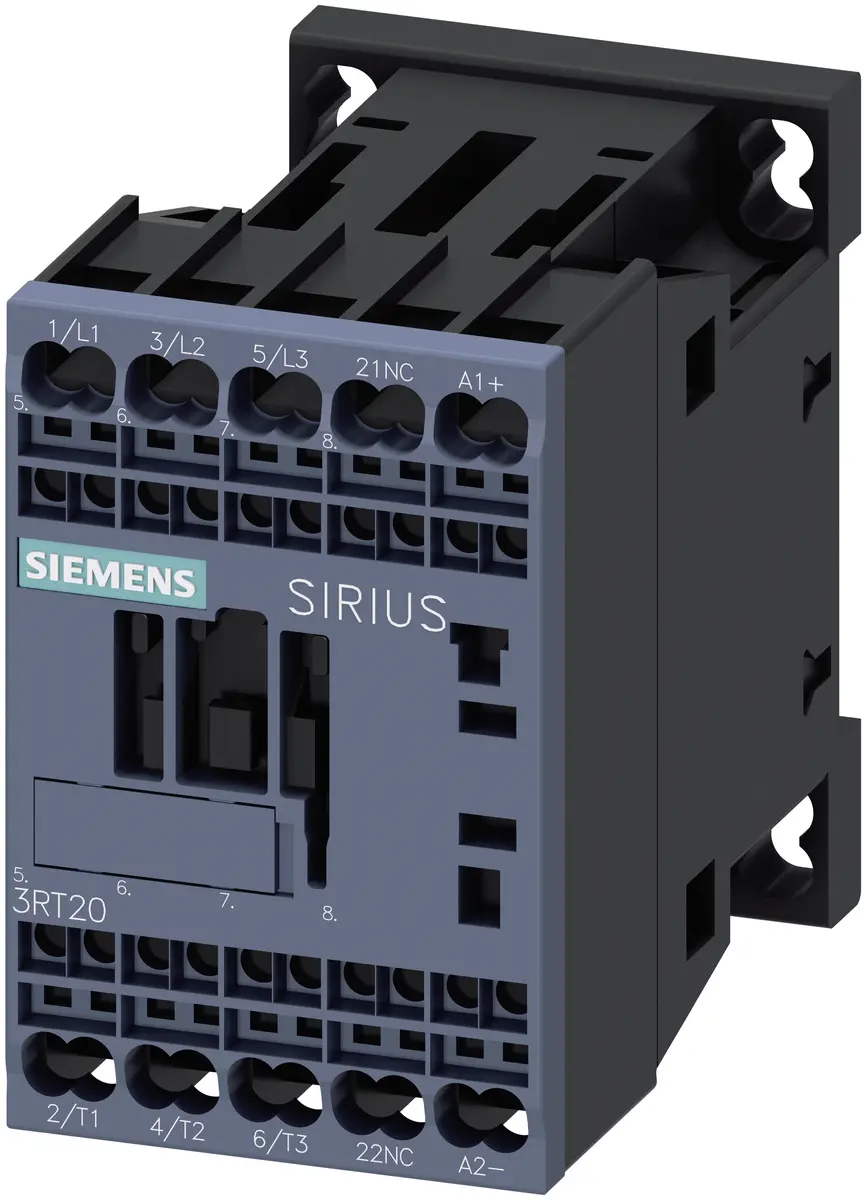

Siemens 3RT20162BB42 Power Contactor 3-pole 9A 4kW 24V DC with 1NC Auxiliary Contact

Minimum order quantity:

1 pc(s)

Maximum order quantity:

1 pc(s)

Main circuit connection type:

Spring clamp connection

Number of auxiliary NC contacts:

1

Number of auxiliary NO contacts:

0

Actuating voltage type:

DC

Rated operational power (AC-3, 400V):

4 kW

Suitable for distribution boards:

Yes

Operating voltage AC (50Hz):

690

Operating coltage AC (60Hz):

690

Number of NO main contacts:

3

Rated operation current (Ie at AC-3, 400V):

9 A

Number of NC main contacts:

0

Rated operation current (Ie at AC-1, 400V):

22 A

Rated operation power (NEMA):

5 hp

Rated operation current (Ie at AC-4, 400V):

8.5 A

Technical details

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

CE, RoHS

Packaging content

Battery included:

No

Weight & dimensions

Package weight: Weight of the packaged product.

312 g

Package height: The distance from the top to the bottom of the packaging.

77.5 mm

Package depth: The distance from the front to the back of the packaging.

73.5 mm

Package width: The distance from one side of the packaging to the other.

50 mm

Height: The measurement of the product from head to foot or from base to top.

70 mm
