Dial Indicator Sensor with Bent Magnetic Base Silver model 11602

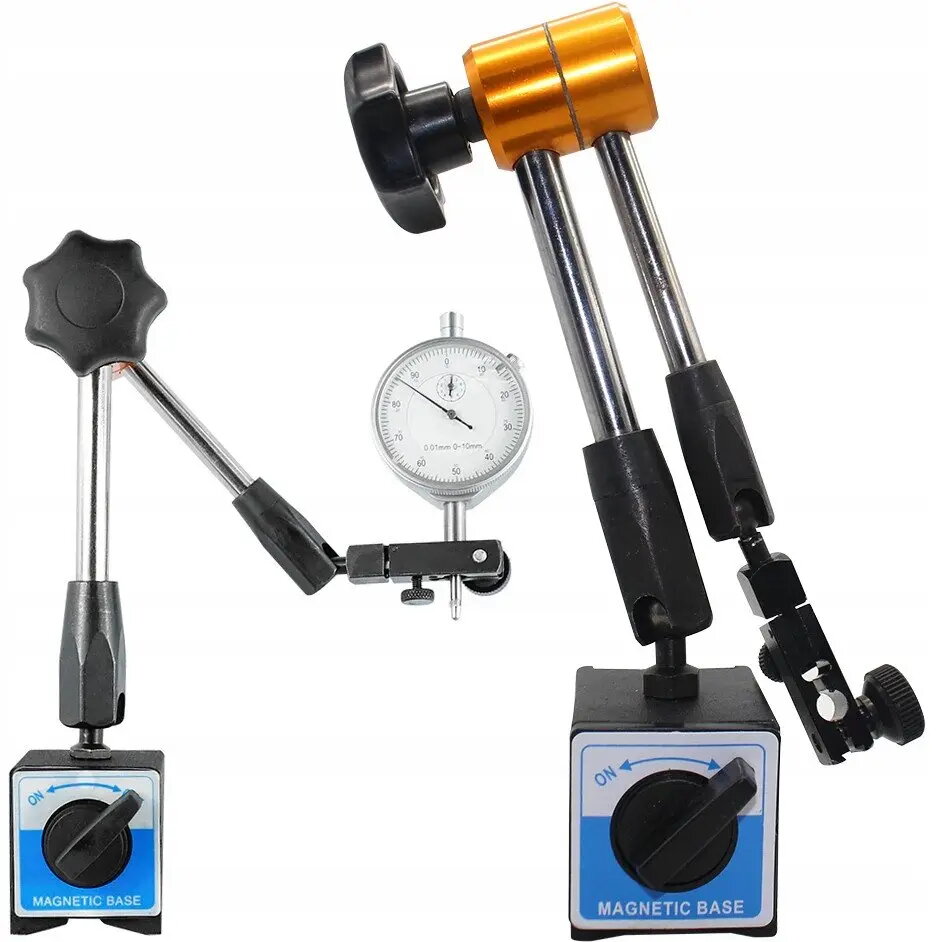

Dial Indicator Sensor with Bent Magnetic Base Silver model 11602 is a precision measuring instrument designed for accurate displacement and runout checks. The device features a dial indicator mechanism combined with an angled magnetic base that secures the instrument to ferrous surfaces for stable positioning during inspection and measurement tasks. The construction supports comparative thickness measurements, alignment verification and routine workshop quality control where repeatable, visible readings are required.

Advantages

The bent magnetic base enables access to surfaces at an angle, improving visibility and clearance when measuring on shafts, housings or fixtures. The magnetic mounting provides firm attachment to steel workpieces, reducing movement and allowing hands-free operation. The dial interface offers direct, easy-to-read indication of displacement without the need for external power. Durable materials and a compact profile make the tool suitable for use in machine shops and maintenance environments.

Suitable for

• Runout and concentricity checks on shafts, spindles and rotating parts
• Comparative thickness and height measurements in production and inspection
• Alignment of fixtures, tools and assemblies during setup
• Routine maintenance checks and workshop quality control

Key specifications

• Indicator type: analog dial with pointer
• Base type: bent (angled) magnetic base for ferrous surfaces
• Mounting: magnetic attachment for hands-free positioning
• Measurement application: displacement, runout, comparative thickness and alignment
• Construction: metal body and base designed for shop use

How to use

Place the magnetic base on a clean, flat ferrous surface close to the measurement point and engage the magnet to secure the tool. Position the dial indicator so the contact tip touches the measured surface perpendicular to the direction of travel, using the bent base to obtain the required angle and clearance. Zero the dial at a reference position if comparative readings are needed, then rotate or move the part to observe the pointer travel and record measurements. After use, disengage the magnet and store the instrument in a protective case or drawer to prevent damage to the indicator and contact tip.

Usage recommendations

Ensure mating surfaces are clean and free of debris before mounting the magnetic base to guarantee stable attachment. Avoid applying excessive side loads to the indicator tip and handle the instrument gently to maintain calibration and prolong service life.
