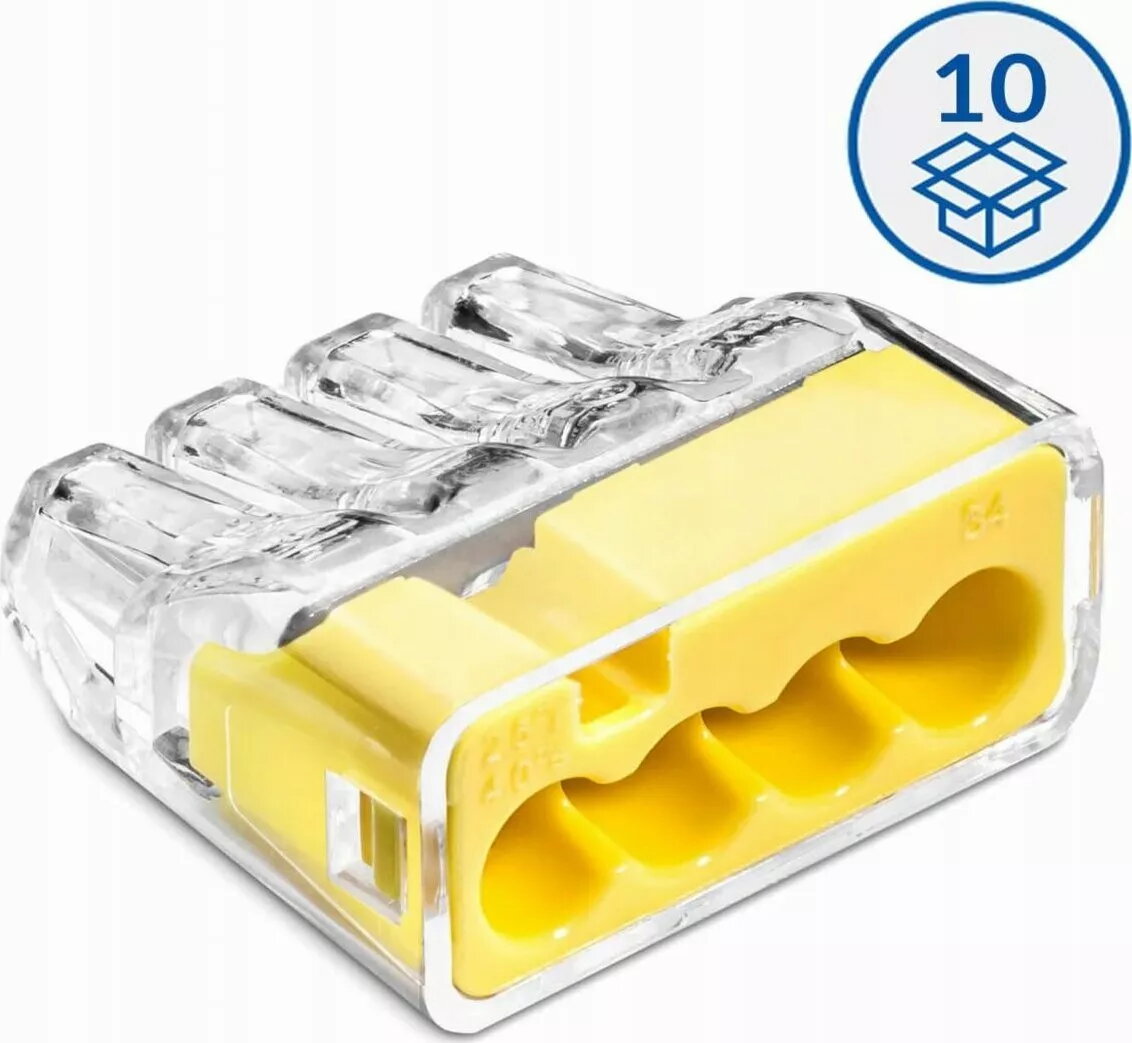

Push-fit wire connector Simet SCP4 for solid/stranded conductors 4×0.75–4 mm² 32 A transparent/yellow, pack 10

Simet SCP4 push-fit wire connector is designed for quick and reliable joining of up to four solid or stranded conductors with cross-sections from 0.75 to 4 mm². Rated for a continuous current of 32 A, this compact connector features a transparent yellow housing that allows visual inspection of conductor insertion and contact integrity. Supplied as a pack of 10, the connector is suitable for common electrical splices in junction boxes, lighting fixtures and appliance connections where a secure, tool-free termination is required.

Advantages

The push-fit design enables fast, tool-free installation while maintaining reliable electrical contact for both solid and stranded conductors. The transparent yellow body provides immediate visual confirmation of correct conductor seating, and the compact dimensions save space inside junction boxes and fixtures. The connector supports a wide conductor size range, reducing the need for multiple connector types on a job site.

Suitable for

• Splicing conductors in ceiling and junction boxes
• Connecting wiring in lighting fixtures and lamp holders
• Appliance and equipment internal wiring
• Temporary or permanent connections in renovation and repair work

Key specifications

• Number of conductor positions: 4
• Supported conductor cross-section: 0.75–4 mm² (solid and stranded)
• Rated current: 32 A
• Housing: transparent yellow insulating material
• Connection type: push-fit (spring/clip internal contact)
• Suitable for copper conductors
• Pack quantity: 10 pieces

How to use

Strip insulation from each conductor to the length recommended by Simet (typical strip length for push-fit connectors is short, usually around 8–12 mm), inspect the conductor for clean, undamaged strands, and push each conductor straight into the corresponding port until it seats firmly. Ensure that no bare conductor is exposed outside the housing and confirm visual seating through the transparent housing. For multi-core cables, separate conductors to avoid crowding and ensure each conductor occupies its own port.

Usage recommendations

Use these connectors for indoor, dry installations and where the operating temperature and environment remain within typical building wiring conditions. Do not use the connector for aluminum conductors unless specifically approved by the manufacturer. Verify that the conductor cross-section and rated current match the application; avoid mixing conductors of significantly different sizes in one port. For installations subject to vibration or outdoor exposure, consider additional strain relief or an alternative connector type designed for those conditions.
