Charger SKYRC SkyRC Q100neo AC/DC multifunctional smart charger

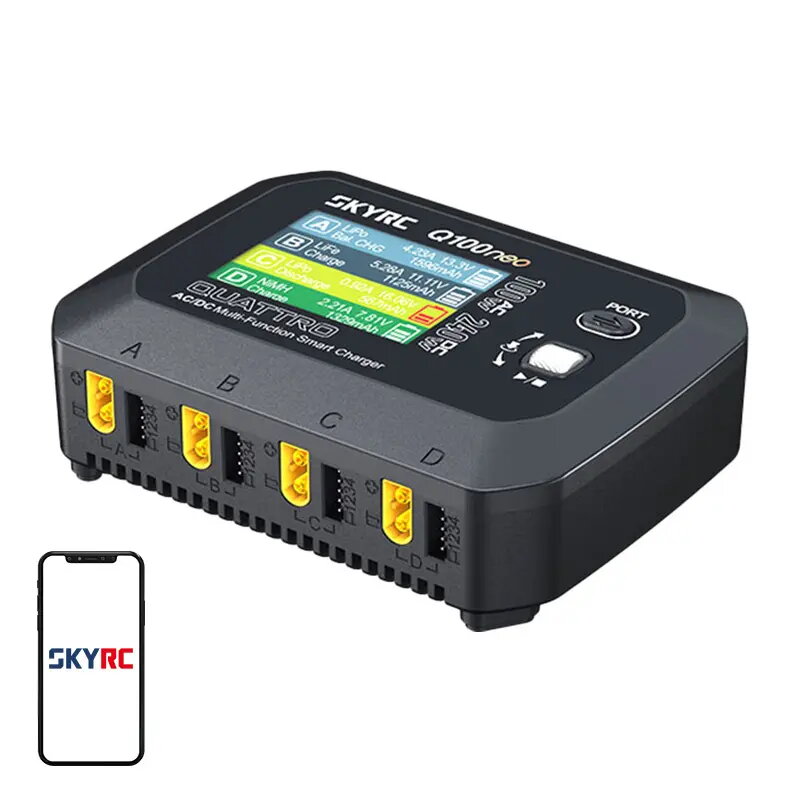

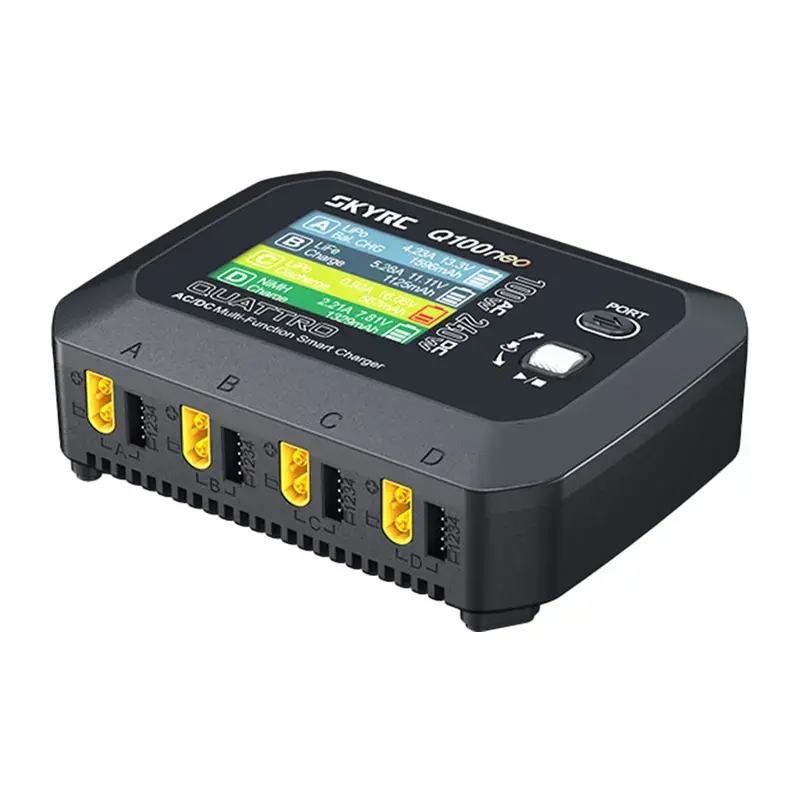

SkyRC Q100neo AC/DC multifunctional smart charger is a compact charging station designed to charge, condition and maintain a wide range of rechargeable battery packs used in RC models, drones and electronics projects. The unit supports both AC and DC input, provides four independent channels for simultaneous charging and includes an adjustable DC power supply mode. The charger integrates monitoring and protection features to manage charge current, balancing and temperature limits while offering a color display and rotary encoder for clear control and configuration.

Advantages

The Q100neo combines AC and DC operation in one device, enabling flexible use at home, in the workshop or in the field. Four independent channels let you charge multiple battery packs simultaneously, with per-channel current settings and individual monitoring. The charger supports many common chemistries including LiPo, Li-ion, LiFe, LiHV, Pb, NiMH and NiCd and provides active cell balancing, adjustable charge/discharge currents and a DC output function. Built-in safety protections guard against reverse polarity, overheating, overload and excessive charge time, while the color display and intuitive control knob simplify setup and status monitoring.

Suitable for

• RC model hobbyists charging multiple flight packs and receiver batteries
• Drone operators who need fast parallel charging and precise battery maintenance
• Electronics hobbyists and professionals requiring an adjustable DC power source for testing
• Workshops that service NiMH/NiCd and lead-acid batteries as well as lithium-based packs

Key specifications

• Input voltage: AC 100–240 V, DC 10–30 V
• Charging current per port: 0.1–0.5 A (±0.1 A), 0.6–6.0 A (±10%)
• Discharge current: 0.1–2.0 A (±0.2 A)
• Charging power: AC up to 100 W (±10%), DC up to 240 W (±10%)
• Discharge power: up to 15 W
• Balancing current: up to 600 mA
• DC power supply mode: adjustable voltage 1–30 V (±0.2 V), current 0.1–6 A (±0.1 A)
• Supported battery chemistries: LiPo, Li-ion, LiFe, LiHV, Pb, NiMH, NiCd
• Power distribution on AC (100 W): single port up to 60 W; two ports 50 W + 50 W; three ports 33 W each (approx.); four ports 25 W each
• Dimensions: 140 × 108 × 43.5 mm; Weight: 491 g
• Color display and rotary encoder for menu navigation and status readout

How to use

Connect the charger to mains power (AC 100–240 V) or to an appropriate DC source (10–30 V). Attach battery packs to the channels using compatible leads and connectors, observing correct polarity. Use the rotary encoder and color display to select battery type, set the desired charge or discharge current and start the process. For DC power supply operation, select the supply mode, then set the required output voltage and current limits before connecting the load. Monitor the display for per-channel status, cell balance and any fault indications during operation.

Usage recommendations

Always verify battery chemistry and cell count before starting a charge, ensure connectors and leads are in good condition, and place batteries on a non-flammable surface while charging. When using DC input, confirm the external supply can provide the required voltage and current. Use balance leads for multi-cell lithium packs to enable cell balancing and reduce long-term cell drift.
