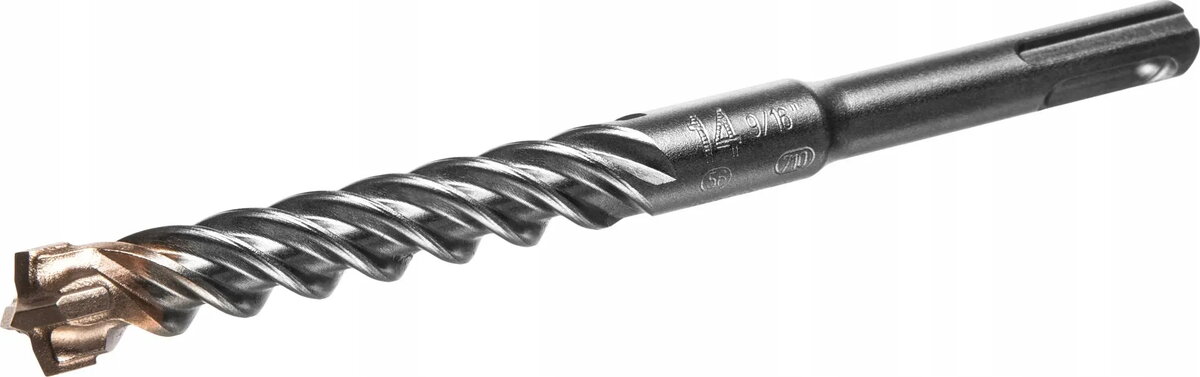

Drill bit Smart SDS‑Plus Quattro 14×200/150 by Smart — 14 mm, 200 mm overall, 150 mm working length

SDS‑Plus Quattro 14×200/150 drill bit by Smart is a rotary hammer accessory engineered for drilling into concrete and masonry. With a 14 mm diameter and 150 mm working length (200 mm overall), it combines sufficient depth capability with an SDS‑Plus shank for secure mount in compatible rotary hammers. The Quattro tip geometry is designed to increase drilling stability and enhance debris evacuation during percussive drilling.

Advantages

The Quattro tip geometry improves centring and reduces walking at the start of a hole, while the SDS‑Plus shank ensures fast and secure bit changes. The 150 mm working length provides a balance between reach and control, and the 14 mm diameter is suitable for common anchor and through‑hole sizes. The overall 200 mm length accommodates deep installations where part of the shank remains inside the tool for stability.

Suitable for

• Drilling anchor holes in concrete and masonry
• Making through‑holes for conduits and pipes in blockwork
• Rebar locating and drilling where precise centring is required
• Professional and DIY fastening and installation tasks

Key specifications

• Diameter: 14 mm
• Overall length: 200 mm
• Working length: 150 mm
• Shank type: SDS‑Plus
• Tip geometry: Quattro design for improved stability and chip removal
• Material: hardened steel suitable for percussive drilling in concrete and masonry

How to use

Select an SDS‑Plus compatible rotary hammer and secure the bit by inserting the shank until it locks. Mark the drilling point and start at low speed to ensure the Quattro tip centres correctly, then apply steady pressure and use the hammer function for percussive drilling through concrete or masonry. Periodically withdraw the bit to clear dust and debris, and allow the tool to cool if drilling multiple deep holes in succession.

Usage recommendations

Use appropriate personal protective equipment, including eye protection, hearing protection and gloves. Match drill diameter to the anchor or fastening system specified for the application. For extended service life, avoid excessive lateral loads and do not use the bit for drilling in steel or other materials not intended for masonry bits.
