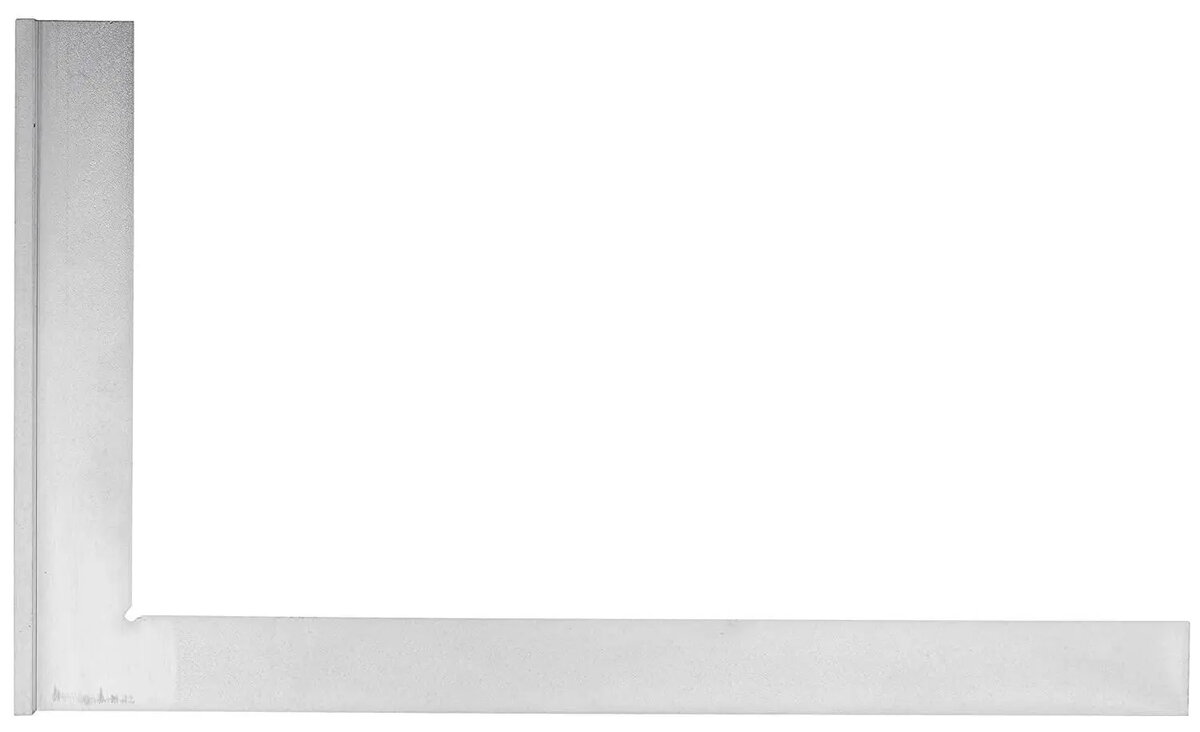

Angle Bracket with Foot SOLA SWA 400 400×230 mm, model 56112701

The SOLA SWA 400 angle bracket with foot (400×230 mm) is a precision tool for transferring and checking right angles during layout, marking and assembly operations. Manufactured for repeatable accuracy, this metal bracket combines a flat square face with a stable foot to support the workpiece and simplify alignment tasks in carpentry, metalworking and general construction. The compact 400×230 mm size balances reach and control for medium-scale projects.

Advantages

The SOLA SWA 400 offers a rigid, straight reference edge and a stable support foot that reduce movement during marking and clamping. Its geometry ensures consistent 90° transfer and dependable positioning on flat and slightly irregular surfaces. The bracket is designed for repeated use in workshop and on-site conditions, providing durability and dimensional stability for routine angle checks and assemblies.

Suitable for

• Transferring and checking right angles on wood, metal and composite materials
• Layout and marking for joinery, cabinetmaking and furniture assembly
• Supporting and positioning workpieces during drilling, cutting and fastening
• On-site installation tasks where a compact, stable angle reference is required

Key specifications

• Working dimensions: 400 mm by 230 mm providing a medium reach for layout tasks
• Construction: metal bracket with integrated support foot for stable positioning
• Functional form: 90° angle reference edge for angle transfer and squaring
• Application environment: suitable for workshop and construction site use

How to use

Place the flat face of the SOLA SWA 400 against one face of the workpiece so the support foot rests on the adjoining surface. Ensure the bracket is seated without wobble, then mark along the reference edge for a true 90° line. For assembly, use the bracket to hold or align parts while fastening; clamp if greater stability is required. Verify seating on uneven material by applying light pressure or using shims under the foot before transferring measurements.

Usage recommendations

For accurate results, keep the reference edges clean and free of burrs or debris. Use clamps on larger or irregular workpieces to maintain contact between the bracket face and the material. Store the bracket in a dry place to prevent surface corrosion and periodically inspect the edges for wear that could affect squaring accuracy.
