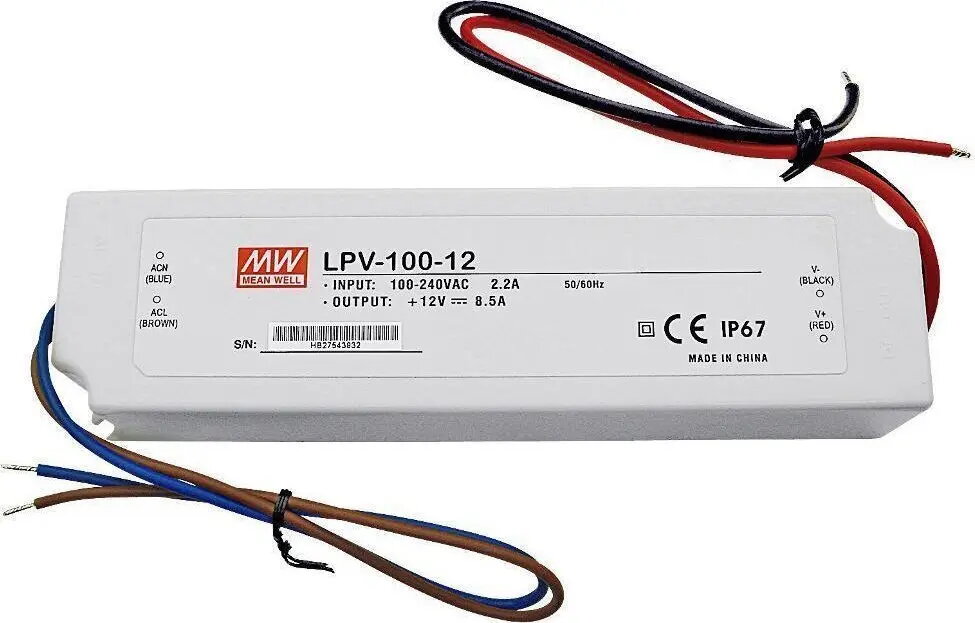

Power supply Sourcing IMPUL LED100W 12V 8.5A IP67, model LPV-100-12

The Sourcing IMPUL LED100W 12V 8.5A IP67 (model LPV-100-12) is a constant-voltage LED driver designed to deliver up to 100 W of stable 12 V DC power with a maximum output current of 8.5 A. Housed in an IP67-rated enclosure, this power supply is built for use in outdoor, damp or dusty environments where reliable low-voltage power is required for LED strips, modules and compatible lighting fixtures. The unit includes protections commonly used in commercial LED drivers to maintain steady output and help protect connected lighting loads.

Advantages

The IP67-rated housing provides dust-tight and temporary submersion protection, enabling installation in exposed or moisture-prone locations. A constant-voltage 12 V output makes the unit compatible with a wide range of LED strips and modules that require stable DC voltage. The driver’s 100 W capacity and 8.5 A maximum current support medium-length runs of LED strip or multiple low-voltage fixtures from a single supply. Integrated safety features reduce the risk of damage from overloads or short circuits and support dependable operation in commercial applications.

Suitable for

• Outdoor architectural and landscape LED strip installations
• Backlighting and signage where moisture protection is needed
• Commercial and residential damp-location lighting
• Powering multiple 12 V LED modules or fixtures from a single source

Key specifications

• Output: 12 V DC constant voltage
• Maximum output power: 100 W
• Maximum output current: 8.5 A
• Ingress protection rating: IP67 for dust and water resistance
• Cooling method: convection (no forced air)
• Suitable ambient conditions: outdoor and damp locations (rated enclosure)

How to use

Install the power supply in a location that maintains the rated ambient temperature and allows for adequate cable routing. Connect the AC input to a correctly rated supply circuit with appropriate protection and grounding according to local electrical codes. Connect the 12 V DC output to compatible LED strips or fixtures, observing correct polarity and maximum current limits. Ensure all wire connections are secure and waterproofed when installed outdoors. Allow the unit to ventilate by avoiding tight enclosures that could raise operating temperature beyond specified limits.

Usage recommendations

For reliable performance, use the driver with LED loads that do not exceed the 100 W / 8.5 A rating and distribute runs to avoid excessive voltage drop on long cable runs. When installing outdoors, seal cable entries and cable connections with suitable weatherproofing materials. Follow local electrical regulations and consider using a residual-current device (RCD) and overcurrent protection on the supply circuit.
