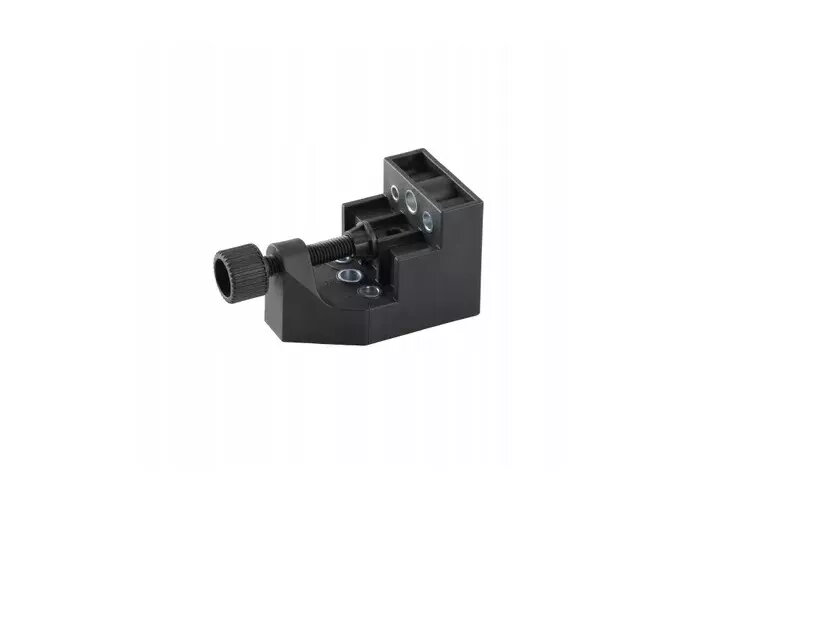

Drill Guide Pin Jig STANLEY STA40180-XJ — for 6 mm, 8 mm, 10 mm pins

STANLEY Drill Guide Pin Jig STA40180-XJ is a compact drill guide engineered for accurate placement of 6 mm, 8 mm and 10 mm pins. The tool ensures consistent hole alignment for dowels and joinery, helping woodworkers and furniture assemblers maintain drill perpendicularity and correct spacing. Designed as an accessory for manual and powered drills, the jig provides repeatable, precise pin installation in timber and composite materials.

Advantages

The jig offers guided drilling with stable positioning that reduces misalignment and improves joint strength. Its simple construction allows fast setup and consistent results across multiple workpieces. By keeping the drill bit perpendicular to the work surface, the guide minimizes tear-out and uneven holes. The tool is lightweight and easy to handle, suitable for use on flat panels and edges.

Suitable for

• Dowelling and dowel joint assembly in furniture making
• Accurate pin placement for cabinetry and shelving
• Repeatable hole alignment for production or batch work
• General woodworking tasks requiring 6 mm, 8 mm or 10 mm fasteners

Key specifications

• Compatible pin diameters: 6 mm, 8 mm, 10 mm
• Guide type: drill guide for perpendicular drilling
• Material contact surfaces designed for stable placement on wood and composite panels
• Suitable for use with handheld and bench-mounted drills
• Compact, lightweight construction for portable use

How to use

Position the drill guide on the workpiece where the pin hole is required, aligning the appropriate guide opening with the layout mark. Secure the workpiece or the guide if needed to prevent movement. Fit a drill bit matching the desired pin diameter through the guide opening and drill at steady speed while maintaining light forward pressure to keep perpendicular alignment. Repeat the process for additional holes, checking spacing and alignment against the project layout.

Usage recommendations
