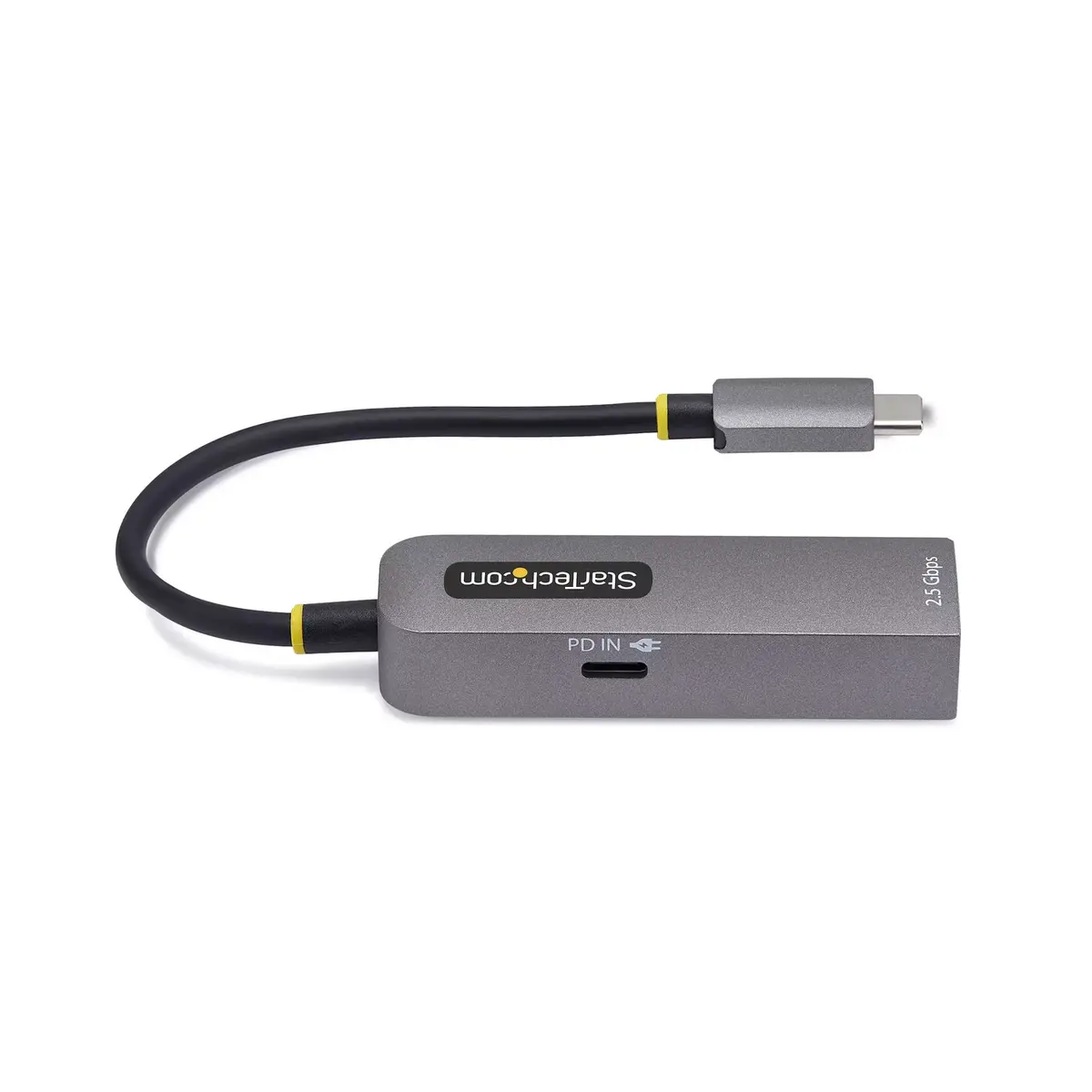

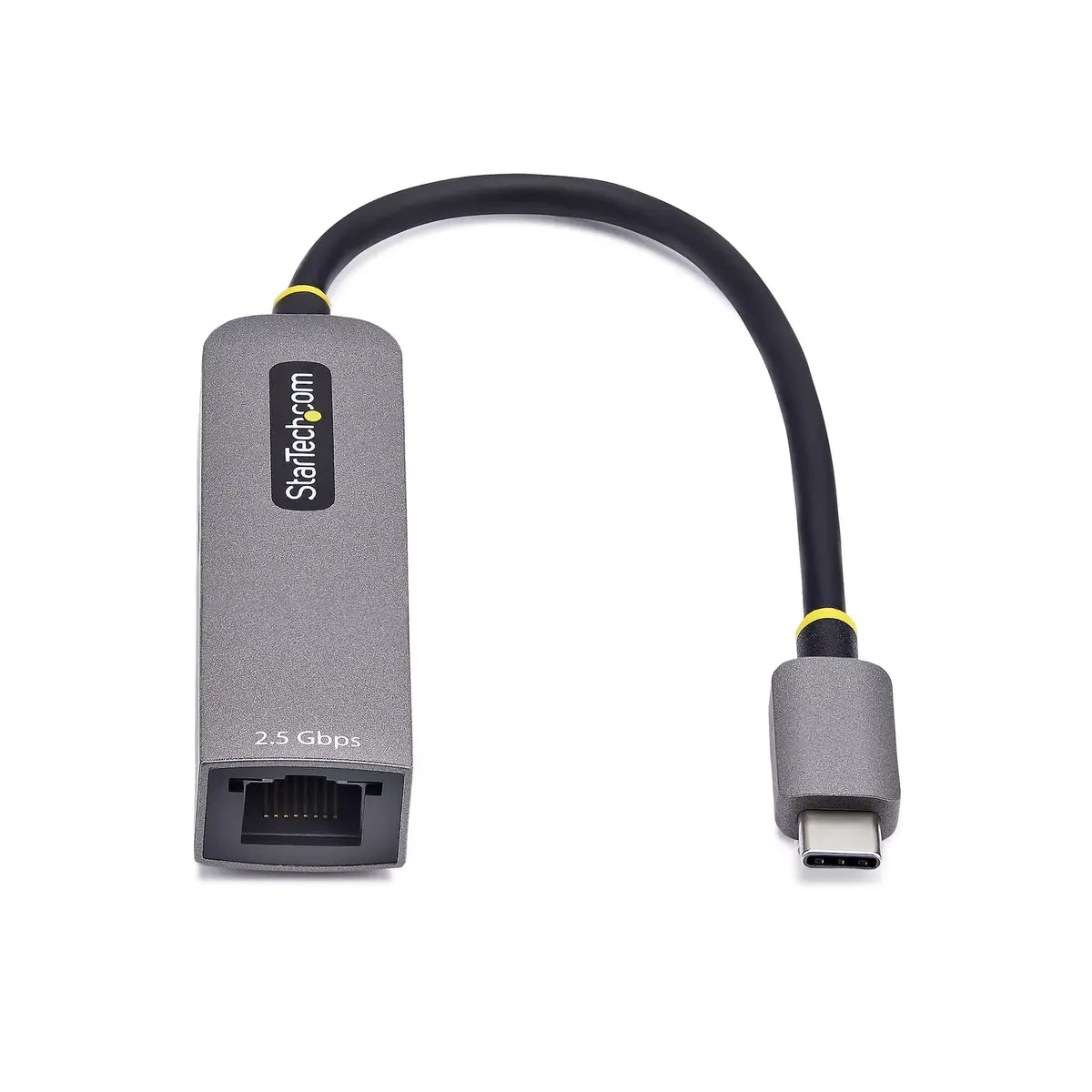

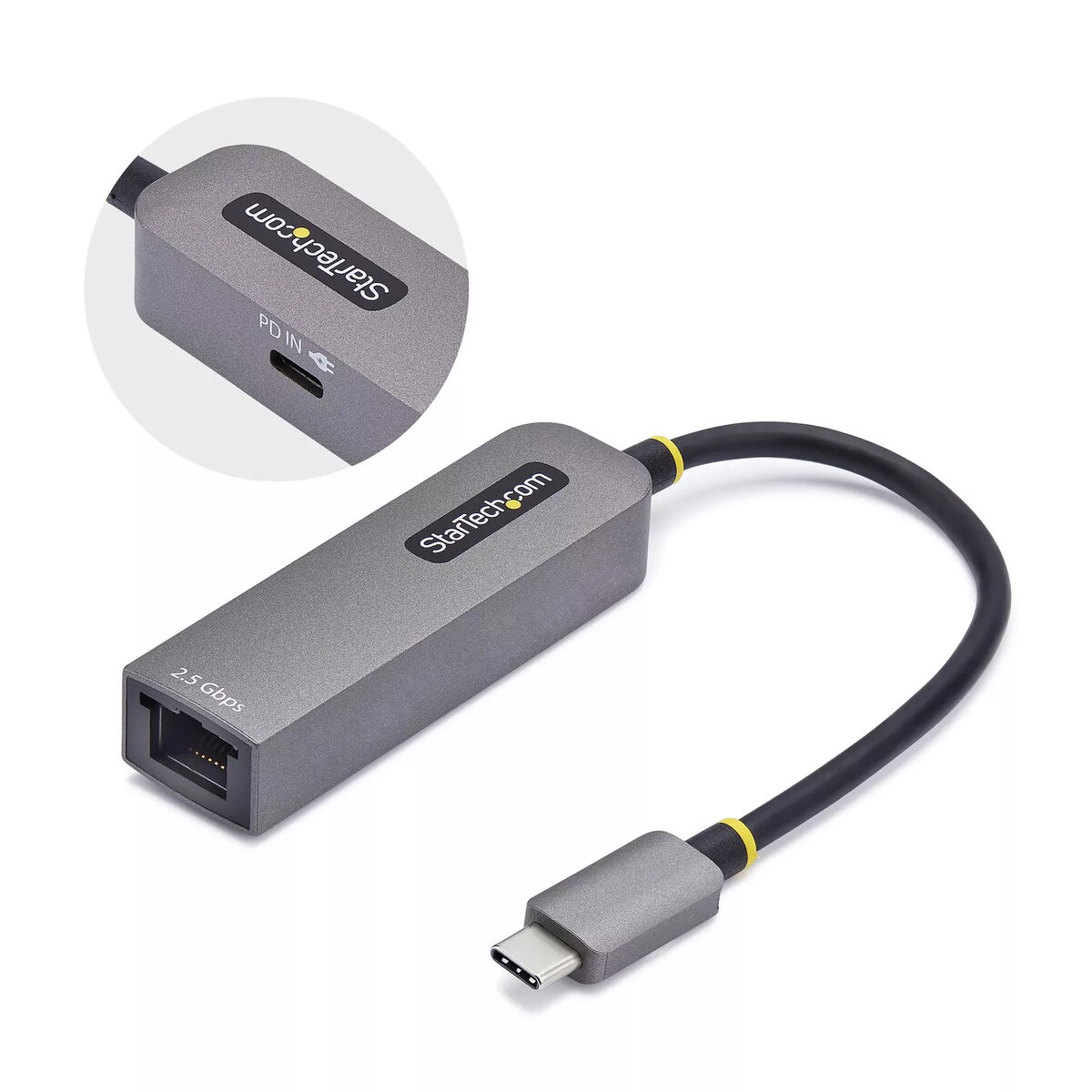

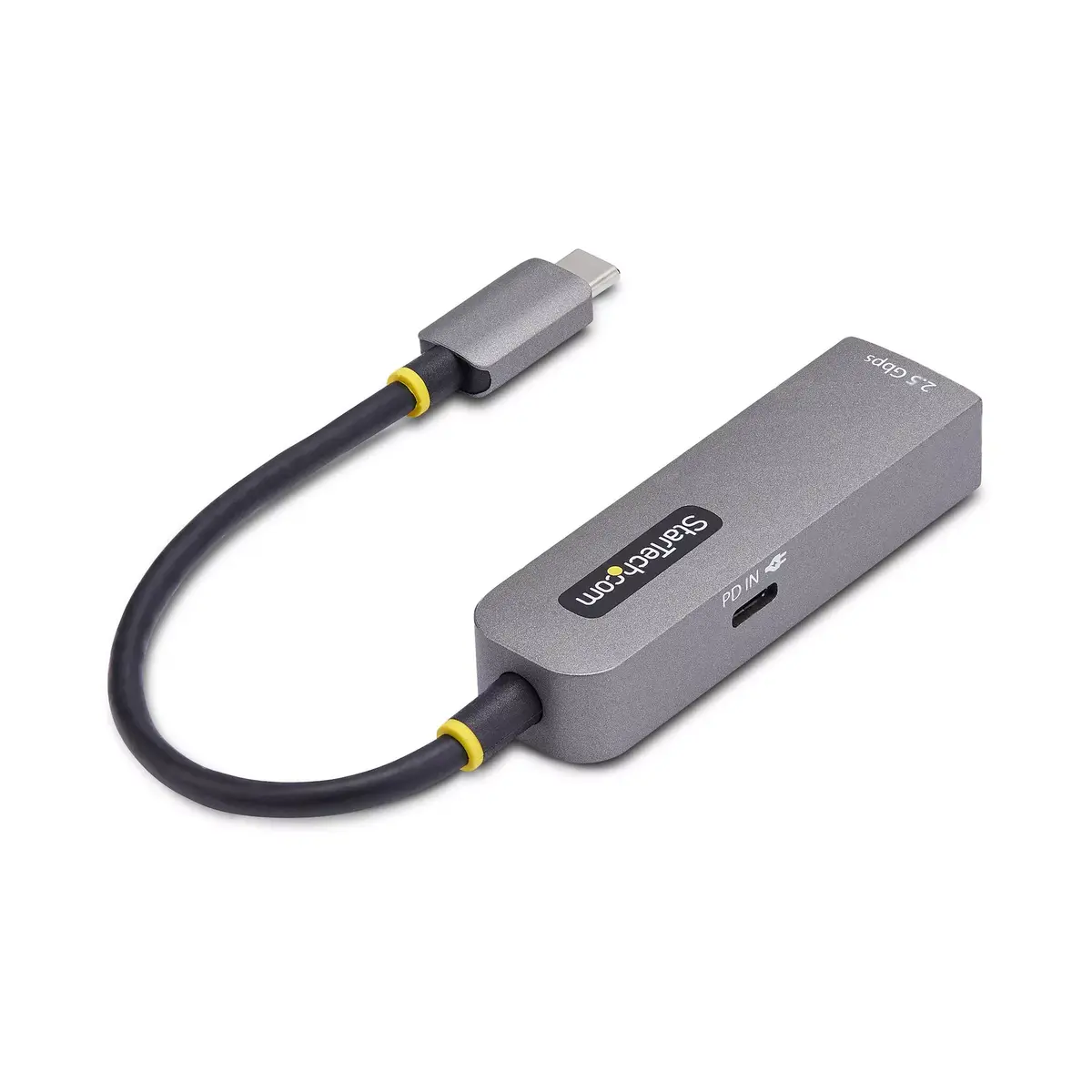

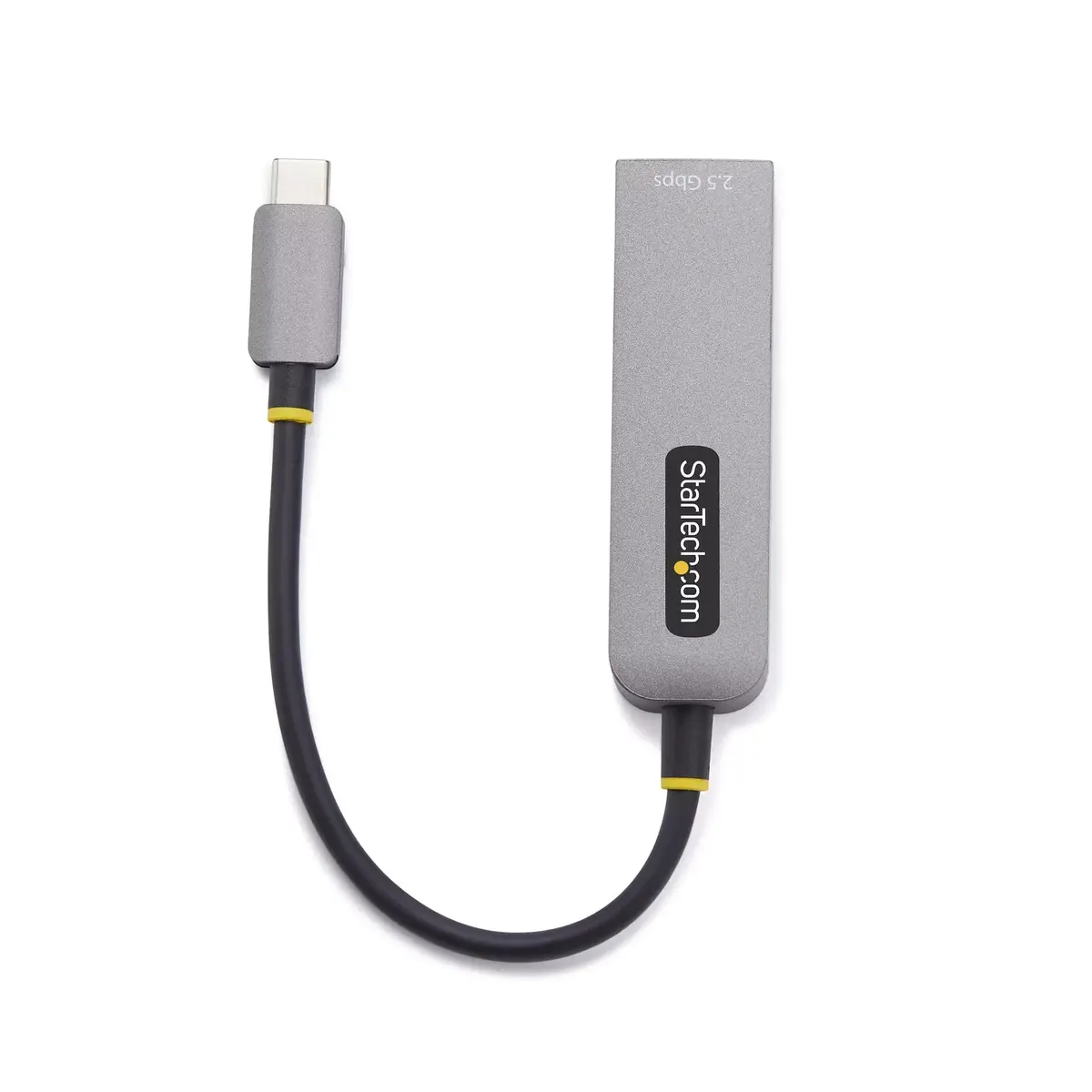

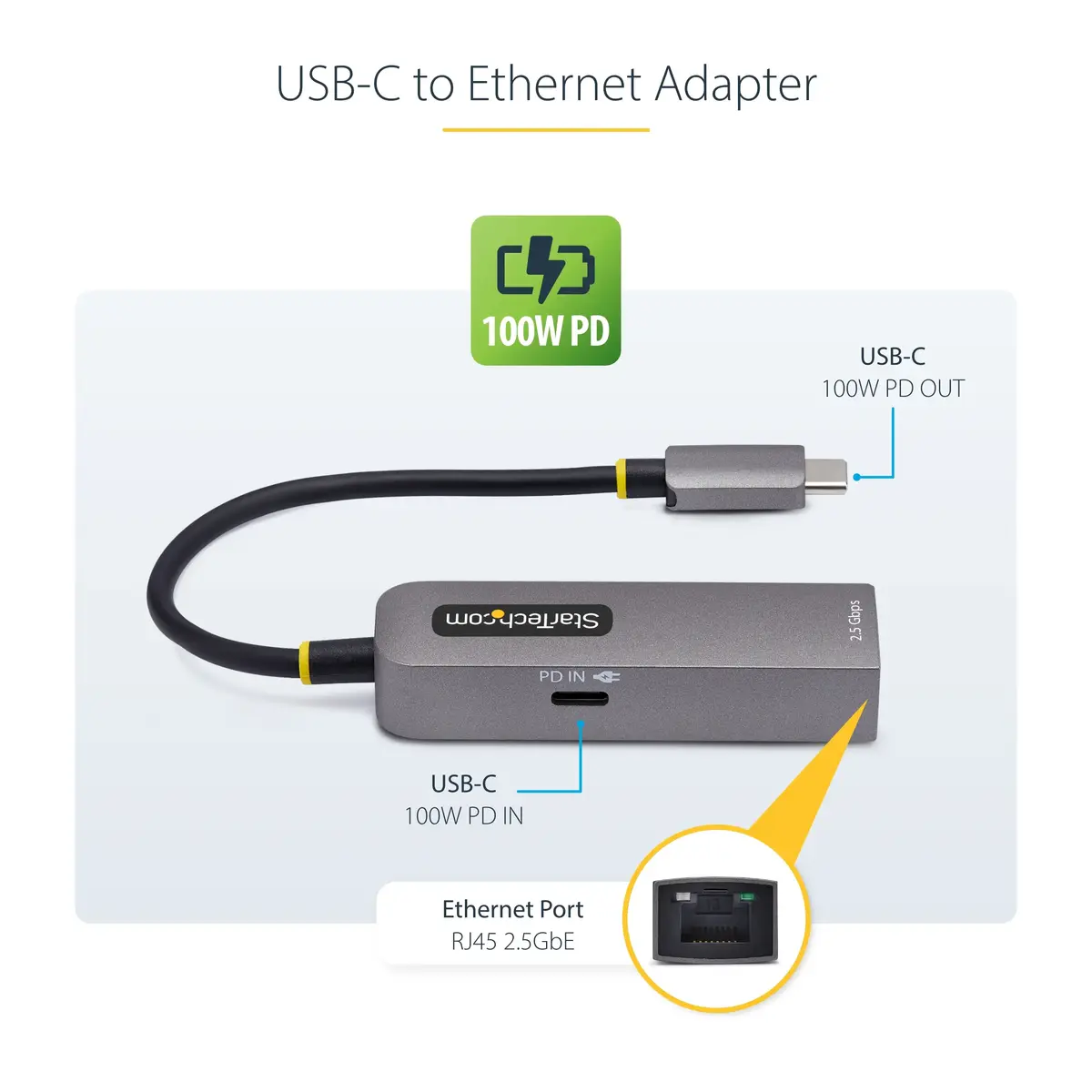

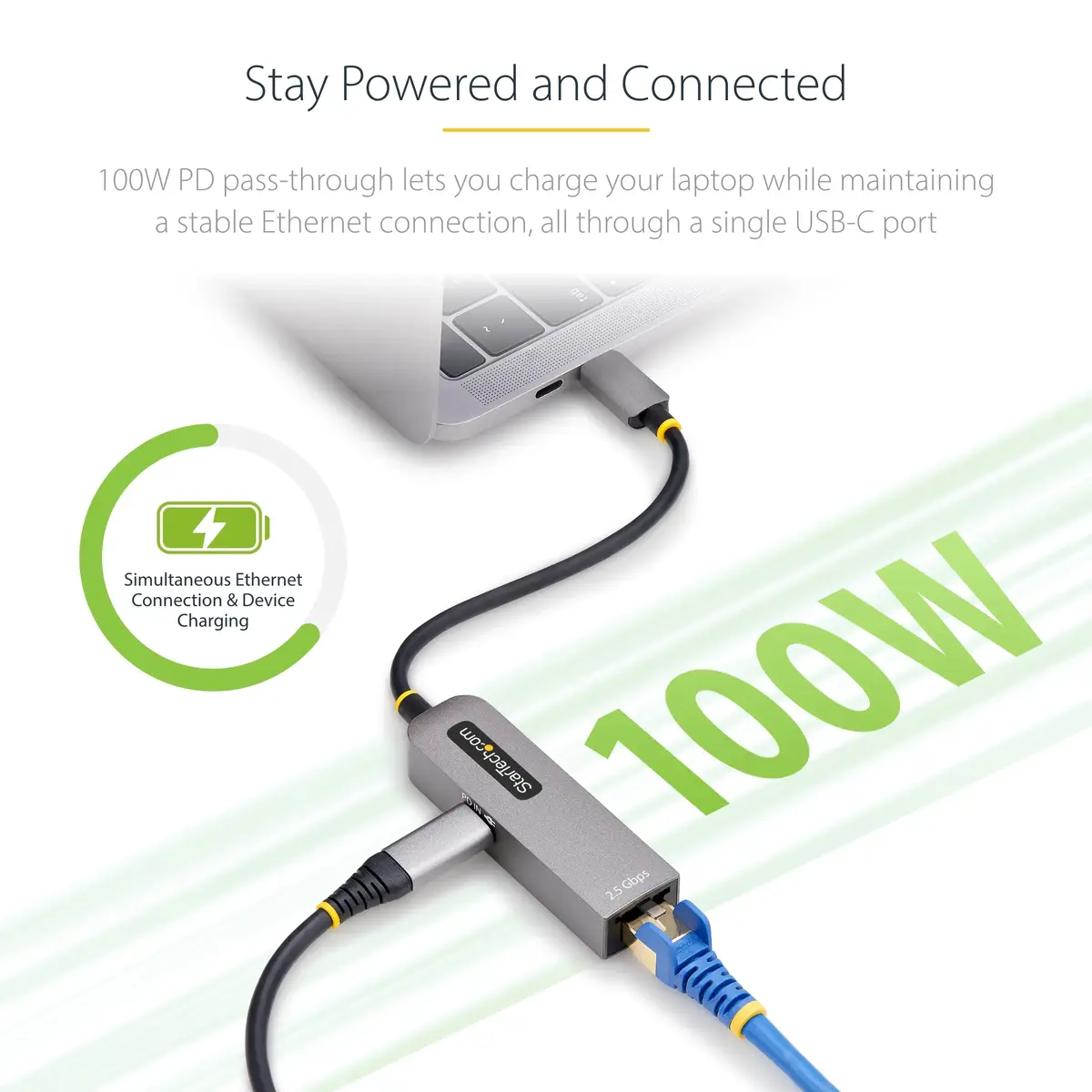

StarTech.com 2.5GbE USB-C to Ethernet Adapter with 100W Power Delivery Pass-Through NBASE-T NIC USB 3.0 Type-C Multi Speed Network Thunderbolt Compatible

Internal: The product is built in.

No

Mean time between failures (MTBF): Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.

1912948 h

Cabling technology: Type of cable technology performance.

NBase-T

Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.

5000 Mbit/s

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Yes

Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.

Wired

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1

Jumbo frames support:

Yes

Auto MDIX IEEE:

Yes

Ethernet interface type:

25 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

Server operating systems supported:

Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2022

Component for: What this product is used as a part of (component for).

PC/Server

VLAN tagging:

Yes

USB pass-through:

No

Jumbo frames:

16000

USB connector form factor:

Straight

Other features

Interface: Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

Ethernet

Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Wake-on-LAN ready:

Yes

Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.

10, 100, 1000, 2500

Logistics data

Products per master (outer) case:

250 pc(s)

Master (outer) case height:

210 mm

Master (outer) case length:

320 mm

Master (outer) case width:

500 mm

Technical details

Host interface: Interface that enables a host controller to communicate with a driver.

USB Type-C

Auto-negotiation:

Yes

Packaging data

Package weight: Weight of the packaged product.

27 g

Package height: The distance from the top to the bottom of the packaging.

18 mm

Package depth: The distance from the front to the back of the packaging.

175 mm

Package width: The distance from one side of the packaging to the other.

127 mm

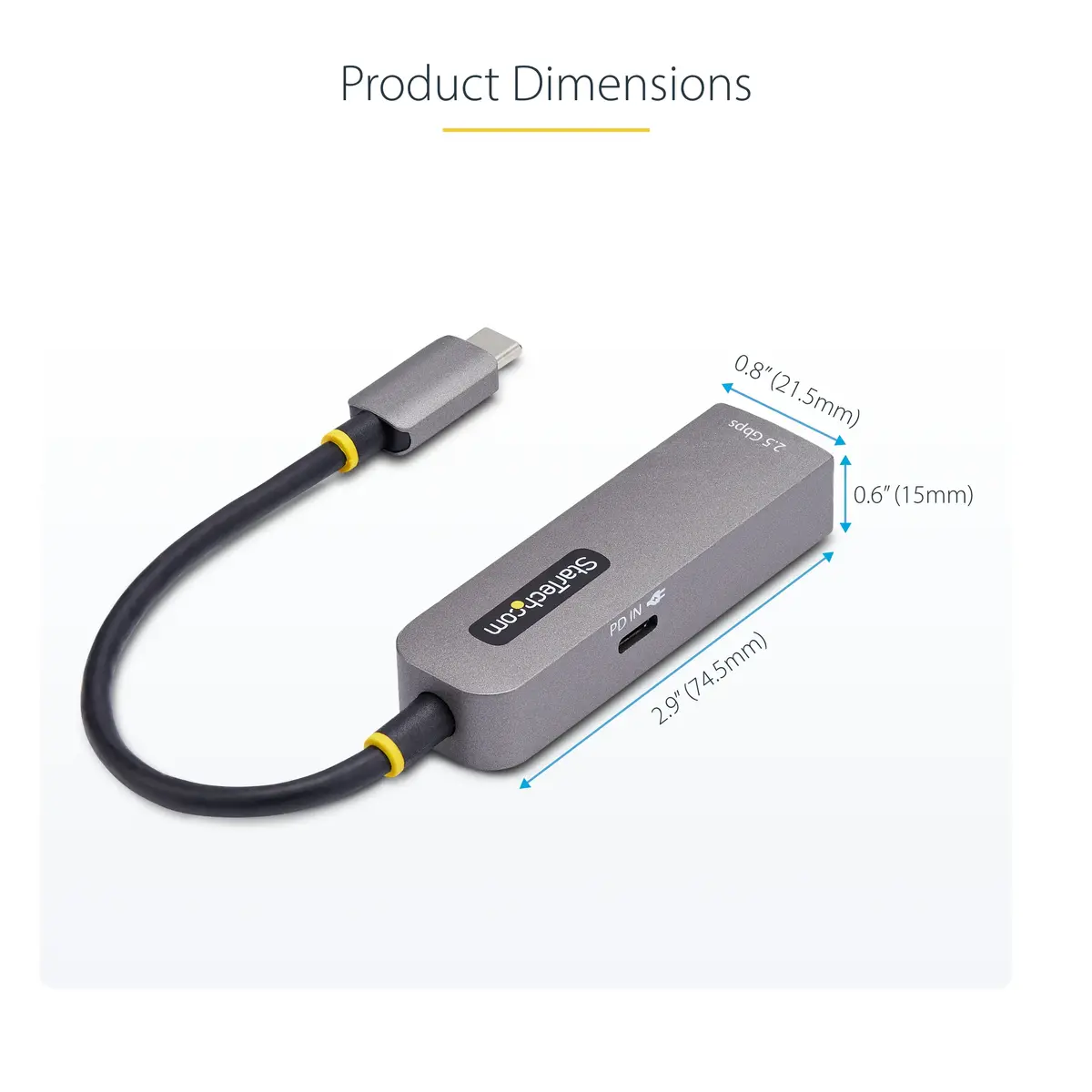

Weight & dimensions

Height: The measurement of the product from head to foot or from base to top.

15 mm

Depth: The distance from the front to the back of something.

22 mm

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.0247 kg

Power

USB powered: The device can be powered via a USB connection.

Yes

Certificates

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

CE, Federal Communications Commission (FCC)

Operational conditions

Operating relative humidity (H-H):

10 - 85

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-10 - 70

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 45

Features

Linux operating systems supported: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)

Y

Windows operating systems supported: Windows vesions wich can be used with the device.

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64

Mac operating systems supported: Mac operating systems e.g. OS X can be used with the device.

Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma

Chipset: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

Realtek RTL8156BG

Product colour: The colour e.g. red, blue, green, black, white.

Grey

USB version: Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.

3.2 Gen 1 (3.1 Gen 1)

Cable length: How long the cable is.

0.15 m

Performance

Full duplex: A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.

Yes

Output voltage:

5

Design

LED indicators:

Y
