Fiber Optic Cable StarTech.com 8m LC to LC OM4 Multimode 50µm
Offer for a legal entity, non-cash payment.
Short description
Cheapest delivery:
Unisend LV
Product information
Description

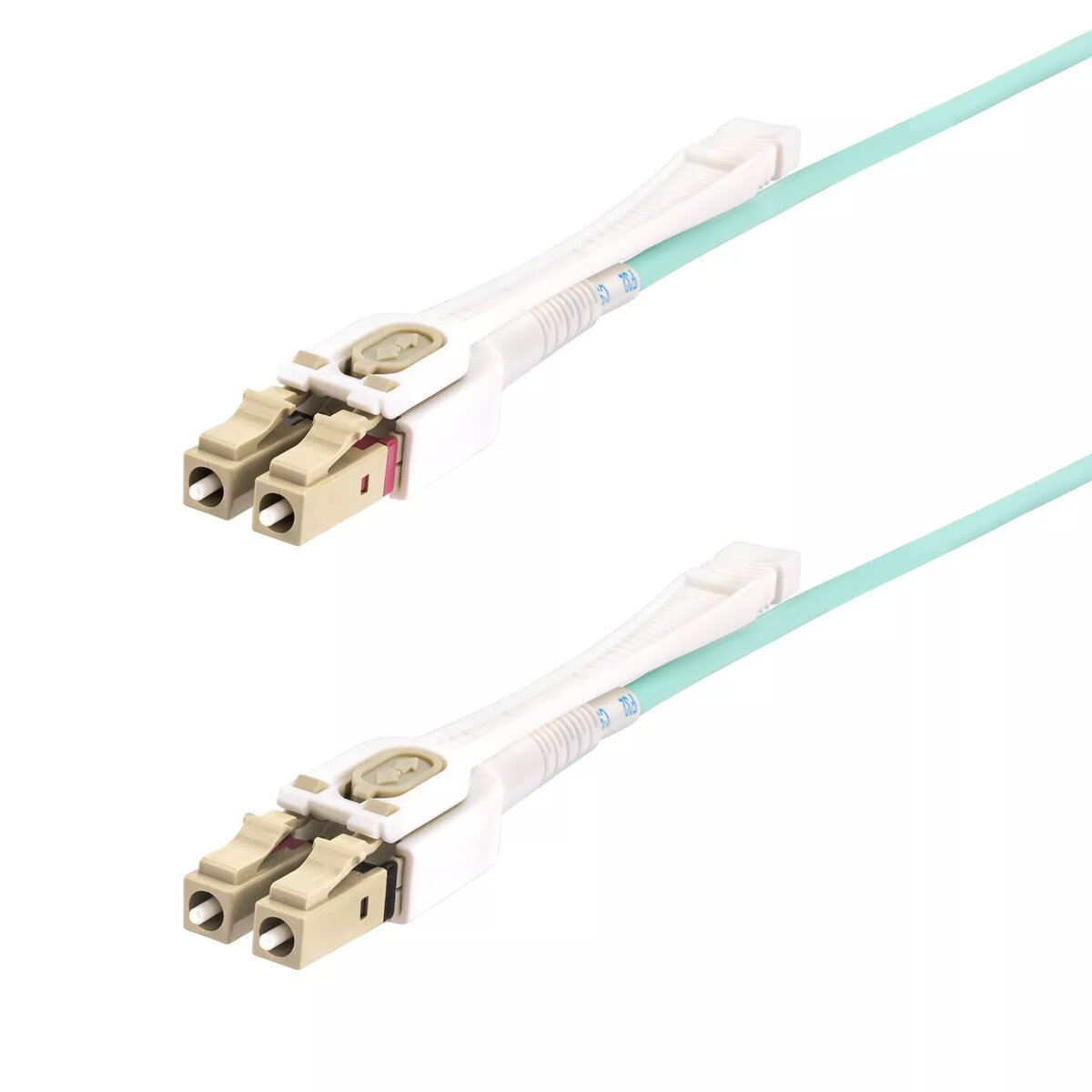

Fiber Optic Cable StarTech.com 8m LC to LC OM4 Multimode 50µm is an 8-meter multimode patch cable with LC/UPC to LC/UPC connectors and a 50/125 µm Laser-Optimized Multimode Fiber (OM4) core. Engineered for high-density networking, the cable supports 40G and 100G links, uses bend-insensitive fiber and molded strain reliefs for runs with micro- and macro-bends, and features push-pull tabs and color-coded LC-Duplex connectors for straightforward installation and polarity identification. The cable jacket is LSZH (Low-Smoke, Zero-Halogen) for reduced smoke and toxic fume emission in confined or regulated environments.
Advantages
This OM4 multimode cable delivers improved return loss and low insertion loss through precision-manufactured ceramic ferrules and LC UPC polished endfaces. Bend-insensitive fiber reduces attenuation in tight routing paths, while the retractable strain-relief housings allow toolless polarity swapping in the field. The patch cord is individually tested for insertion loss to meet or exceed TIA/EIA-568 standards, and the 50/125 µm OM4 core is optimized for 850 nm and 1300 nm VCSEL and LED sources.
Suitable for
- High-density data center patch panels and network racks
- 40G and 100G multimode backbone links
- Server-to-switch and switch-to-switch connections using LC duplex
- Environments requiring low-smoke, zero-halogen cabling (trains, aircraft, certain industrial or residential installations)
Key specifications
- Connector type: LC/UPC to LC/UPC (LC Duplex, push-pull tabs, color-coded)
- Fiber type: OM4 Laser-Optimized Multimode Fiber (LOMMF), 50/125 µm
- Length: 8 m
- Cable jacket: LSZH (Low-Smoke, Zero-Halogen), flame-retardant
- Performance: Supports 40G and 100G multimode links; compatible with OM3 and 1/10/40G networks
- Standards: Individually tested to meet or exceed TIA/EIA-568 insertion loss requirements
How to use
Route the 8 m LC to LC OM4 patch cable through your cable management or rack channels, avoiding excessive tension. Insert the LC/UPC connectors into matching LC ports until the push-pull tab engages; use the tab to remove connectors without pulling on the cable. If polarity change is required, retract the strain-relief housing and swap the connector positions per your system's polarity scheme. Verify connections and test link performance after installation.
Usage recommendations
For optimal performance, maintain the cable bend radius above the manufacturer’s minimum, avoid crushing or sharp kinks, and use appropriate patch-panel management in high-density environments. Use LC-compatible adapters and keep connector endfaces clean to minimise insertion loss and ensure reliable 40G/100G operation.
Features
- Connector 1 gender:
- Male
- Connector 2 gender:
- Male
- Connector 2:
- LC
- Connector 1:
- LC
- Cable length:
- 8 m
Stock data
| Warehouse | Stock | Delivery to the store | Store Price | |
| EU9 | 9 | 07.12.2026 | 52.99 € | Add to cart |
| WH109 | 9 | 21.12.2026 | 68.49 € | Add to cart |
- 52.99 €Stock: 9Delivery Date: 07.12.2026Warehouse: EU9Add to cart
- 68.49 €Stock: 9Delivery Date: 21.12.2026Warehouse: WH109Add to cart
