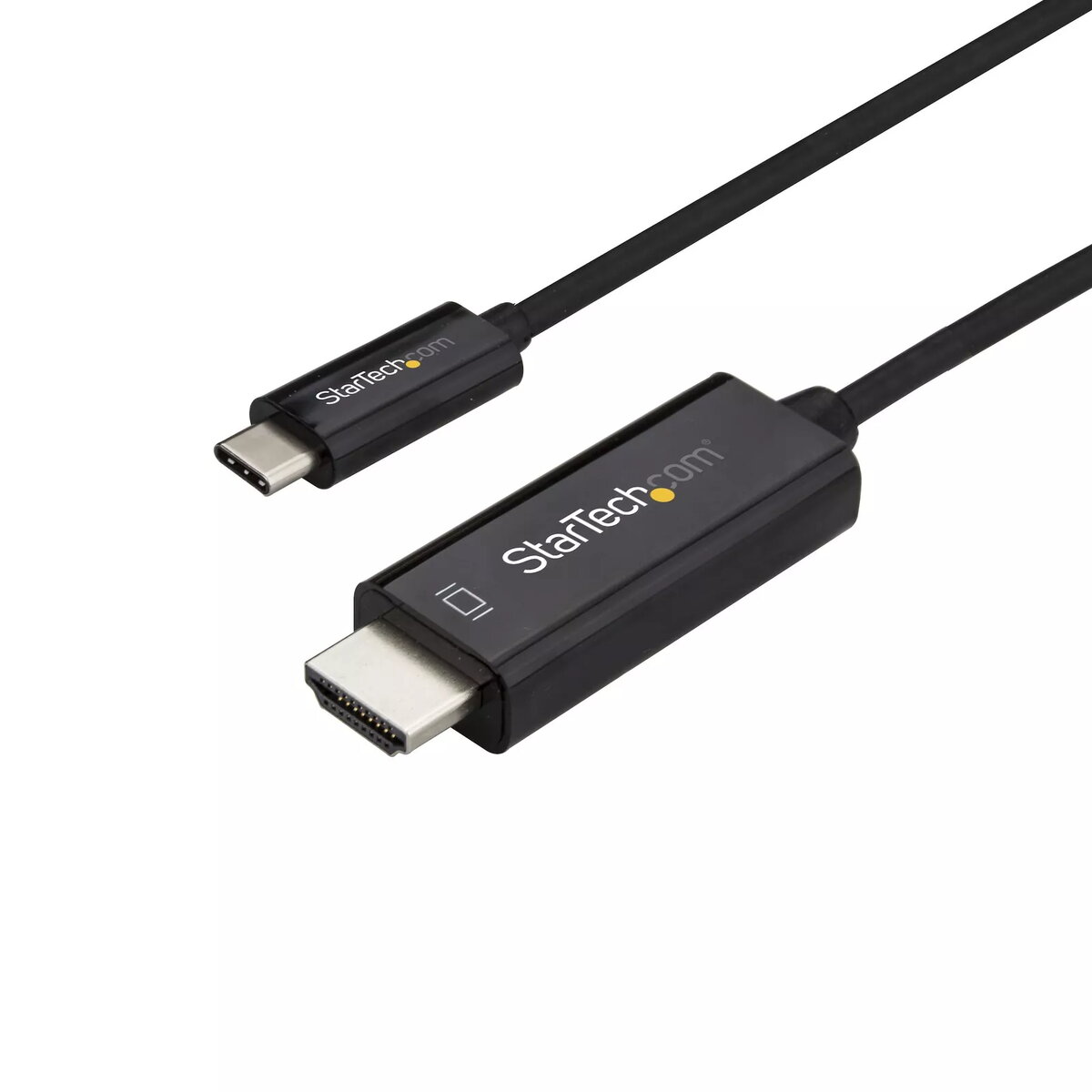

USB C to HDMI Cable StarTech.com CDP2HD1MBNL

Chipset: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

VIA/VLI - VL100, Parade - PS176

Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.

3840 x 2160

Supported graphics resolutions: The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.

3840 x 2160, 2560 x 1600 (WQXGA), 2560 x 1440, 1920 x 1200 (WUXGA), 1920 x 1080 (HD 1080), 1280 x 720 (HD 720), 1024 x 768 (XGA)

HDMI version:

2.0

HDCP: High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.

Yes

Maximum refresh rate:

60 Hz

HDCP version:

1.4/2.2

DisplayPort version:

1.2

Supported audio channels:

7.1

USB Type-C DisplayPort Alternate Mode:

Yes

Logistics data

Products per master (outer) case:

100 pc(s)

Master (outer) case height:

210 mm

Master (outer) case length:

500 mm

Master (outer) case width:

320 mm

Harmonized System (HS) code:

84733080

Other features

Height: The measurement of the product from head to foot or from base to top.

14 mm

Width: The measurement or extent of something from side to side.

22 mm

Packaging data

Package weight: Weight of the packaged product.

40 g

Package height: The distance from the top to the bottom of the packaging.

0.07 mm

Package depth: The distance from the front to the back of the packaging.

225 mm

Package width: The distance from one side of the packaging to the other.

125 mm

Packaging content

Quantity per pack:

1 pc(s)

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.036 kg

Depth: The distance from the front to the back of something.

1000 mm

Operational conditions

Operating relative humidity (H-H):

5 - 90

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-10 - 70

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 45

Sustainability

Sustainability certificates:

CE, RoHS

Features

Plug and Play: Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.

Yes

Product colour: The colour e.g. red, blue, green, black, white.

Black

Connector 2 form factor:

Straight

Connector 1 form factor:

Straight

Connector 2 gender: The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Male

Connector 1 gender: The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Male

Connector 2: This is the second connector in the device.

HDMI

Connector 1: This is the first connector in the device.

USB Type-C

Cable length: How long the cable is.

1 m
