USB C to HDMI Adapter StarTech.com CDP2HDUCPW

USB connector type: The type of USB connector/port that this product has.

USB Type-C

Audio output channels: An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.

7.1

Integrated USB cable:

Yes

USB cable length:

0.1 m

Number of displays supported: The number of displays that can be used with this product.

1

DVI output:

No

DisplayPort output: The device features a DisplayPort (DP) output to accomodate a standardized digital display interface used to connect a video source to a display device such as a computer monitor, and it can also carry audio, USB, and other forms of data.

No

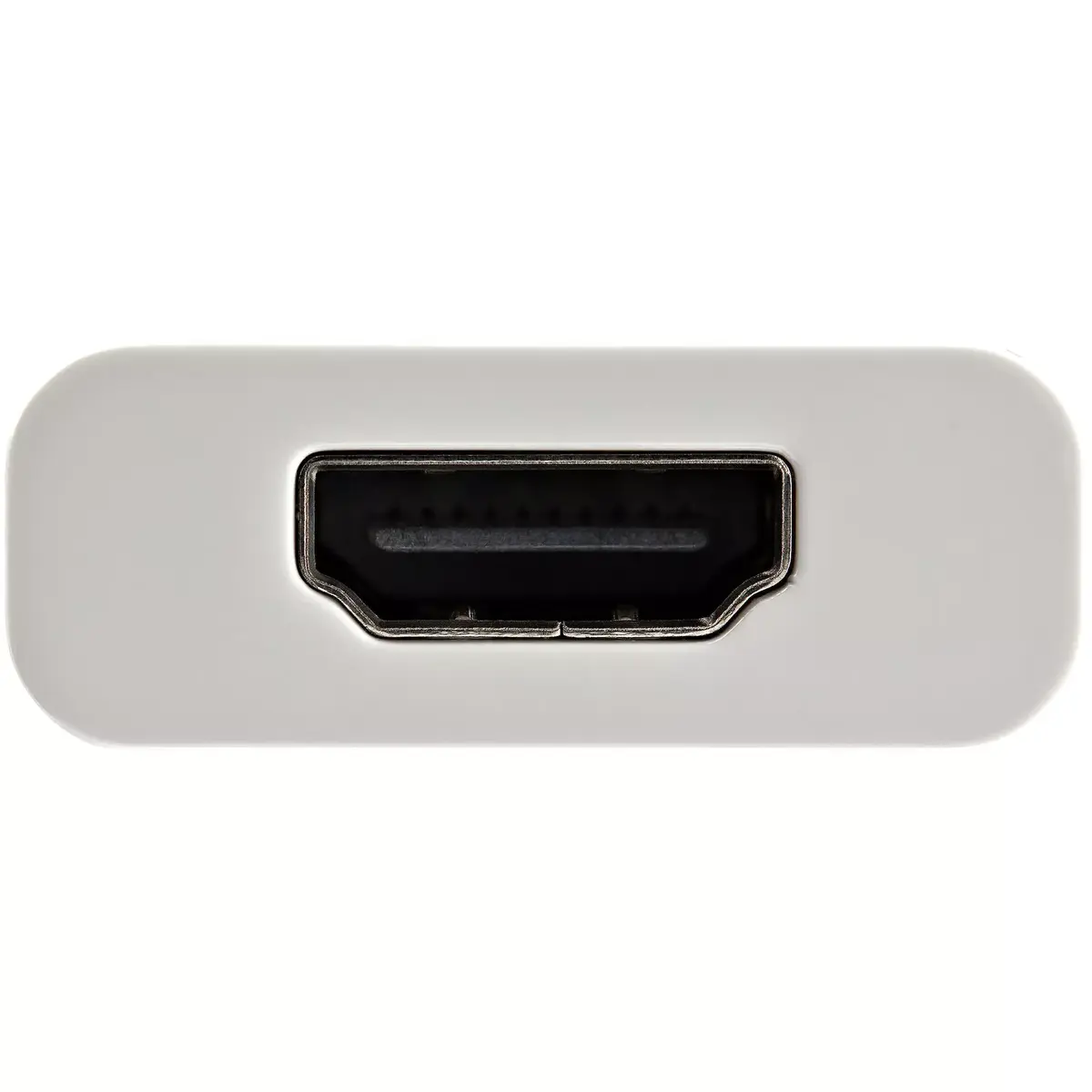

HDMI output: The device features an HDMI output.

Yes

USB connector gender:

Male

USB connector form factor:

Straight

Logistics data

Products per master (outer) case:

40 pc(s)

Master (outer) case height:

310 mm

Master (outer) case length:

358 mm

Master (outer) case width:

330 mm

Harmonized System (HS) code:

84733020

Technical details

Housing material: What the casing of the product is made of.

Plastic

Packaging data

Package weight: Weight of the packaged product.

107 g

Package height: The distance from the top to the bottom of the packaging.

31 mm

Package depth: The distance from the front to the back of the packaging.

175 mm

Package width: The distance from one side of the packaging to the other.

144 mm

Weight & dimensions

Height: The measurement of the product from head to foot or from base to top.

13 mm

Depth: The distance from the front to the back of something.

50 mm

Width: The measurement or extent of something from side to side.

33 mm

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.022 kg

Sustainability

Sustainability compliance:

Yes

Sustainability certificates:

RoHS, CE

Operational conditions

Operating relative humidity (H-H):

0 - 90

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-20 - 70

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Features

Chipset: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

Parade - PS176, VIA/VLI - VL100

Product colour: The colour e.g. red, blue, green, black, white.

White

Refresh rate at maximum resolution:

60 Hz

Supported graphics resolutions: The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.

2560 x 1600 (WQXGA), 3840 x 2160, 1920 x 1200 (WUXGA), 1920 x 1080 (HD 1080), 1680 x 1050 (WSXGA+), 1600 x 900, 1440 x 900 (WXGA+), 1360 x 768 (WXGA), 1280 x 800, 1280 x 768, 1280 x 720 (HD 720)

Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.

3840 x 2160

HDMI version:

2.0

Performance

Maximum resolution (HDMI):

3840 x 2160
