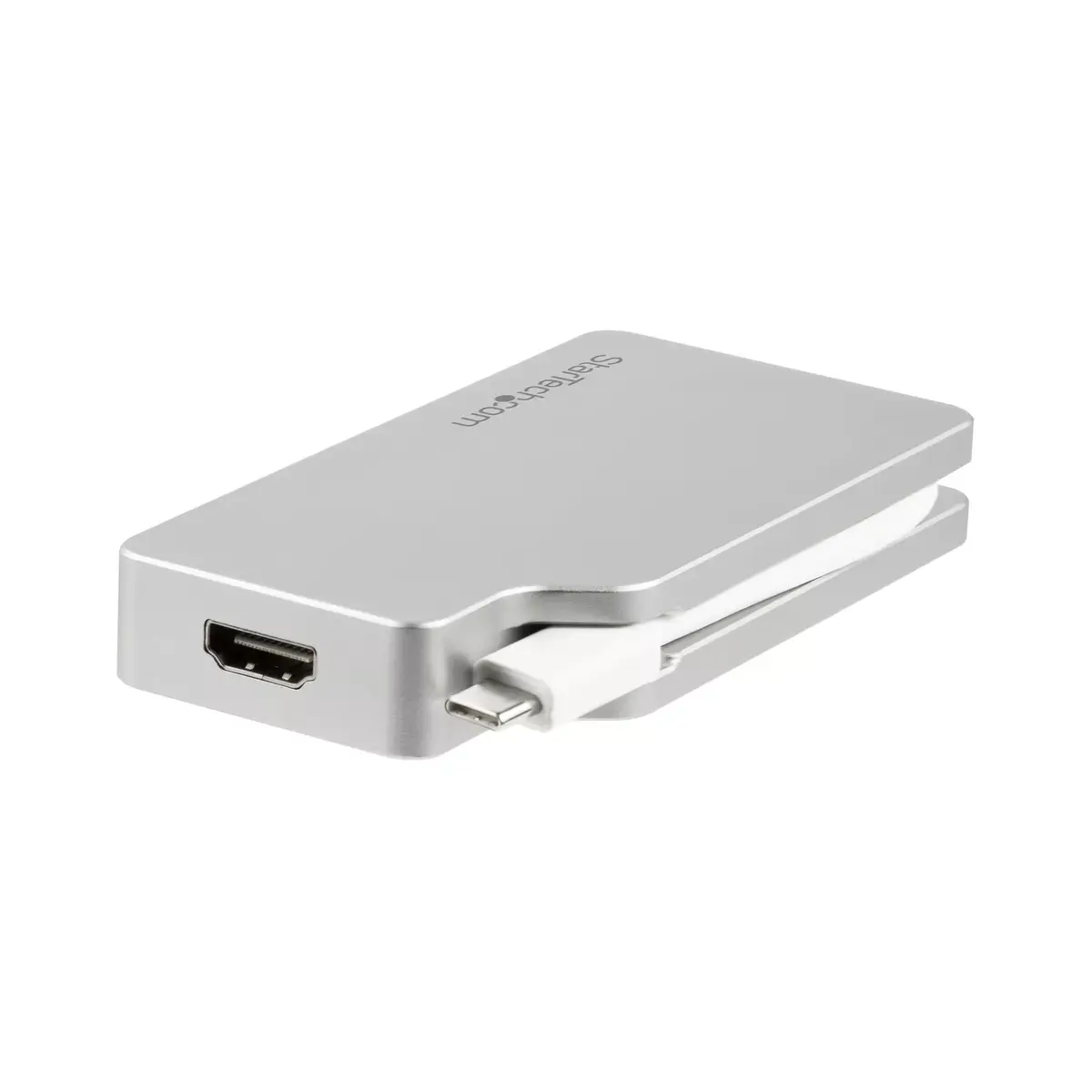

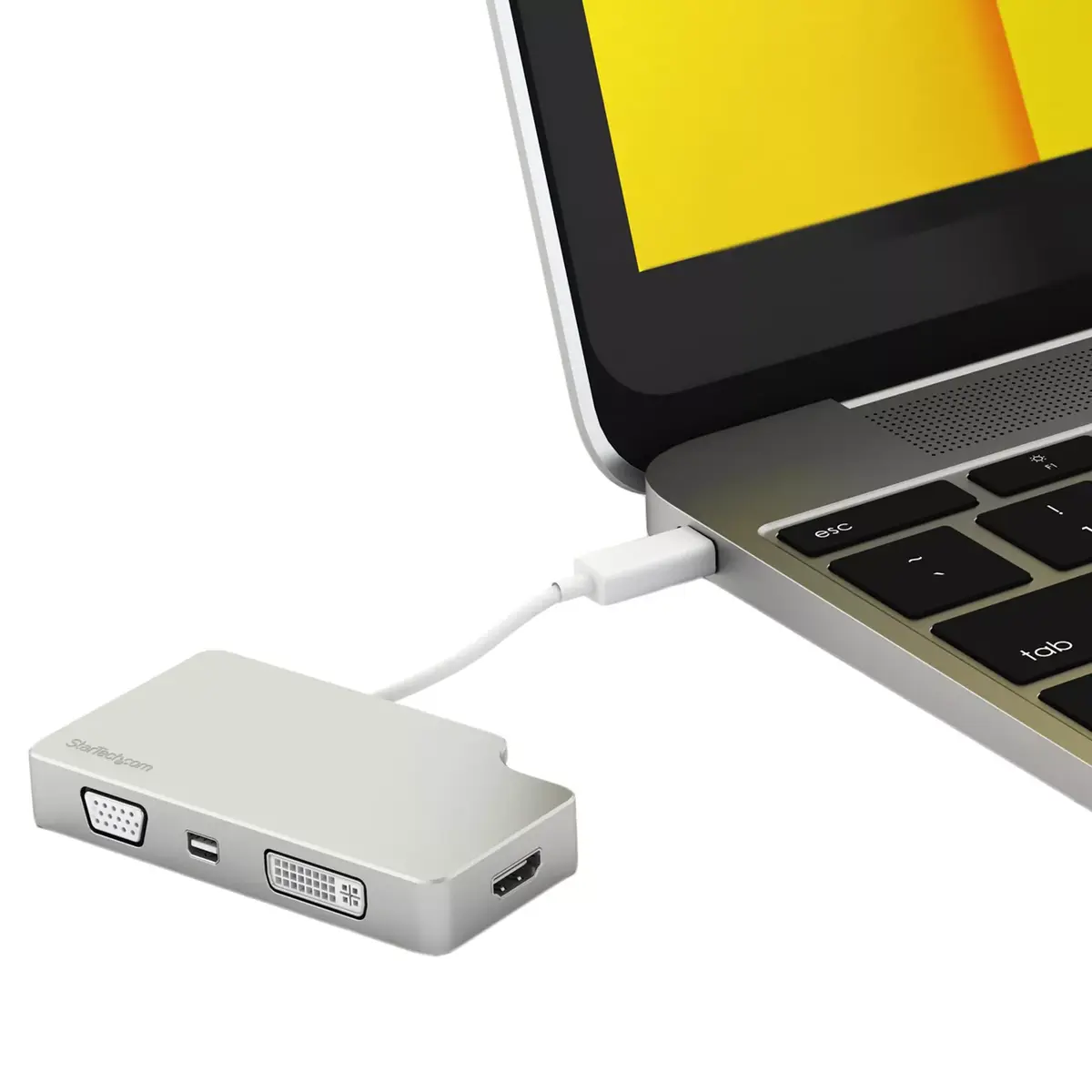

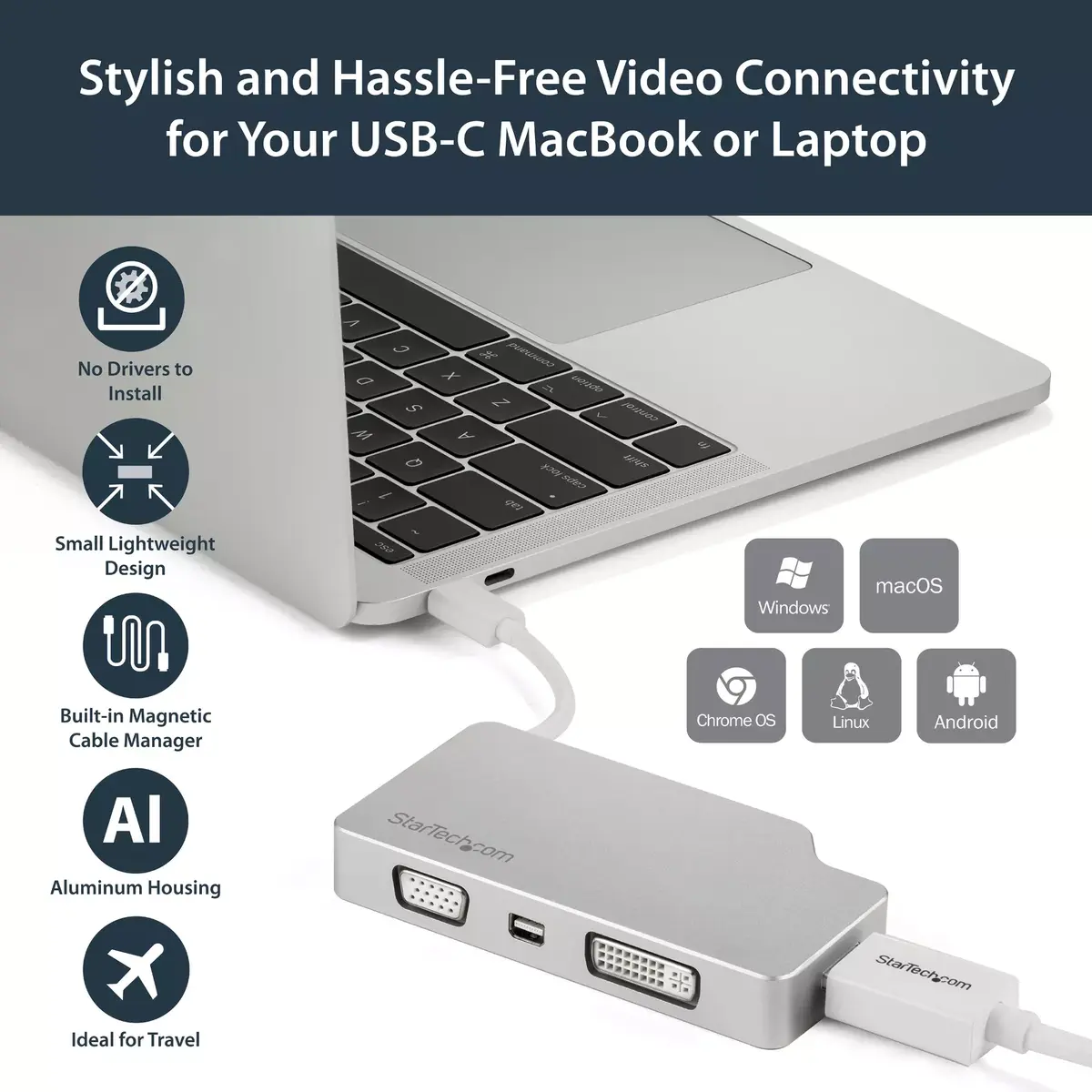

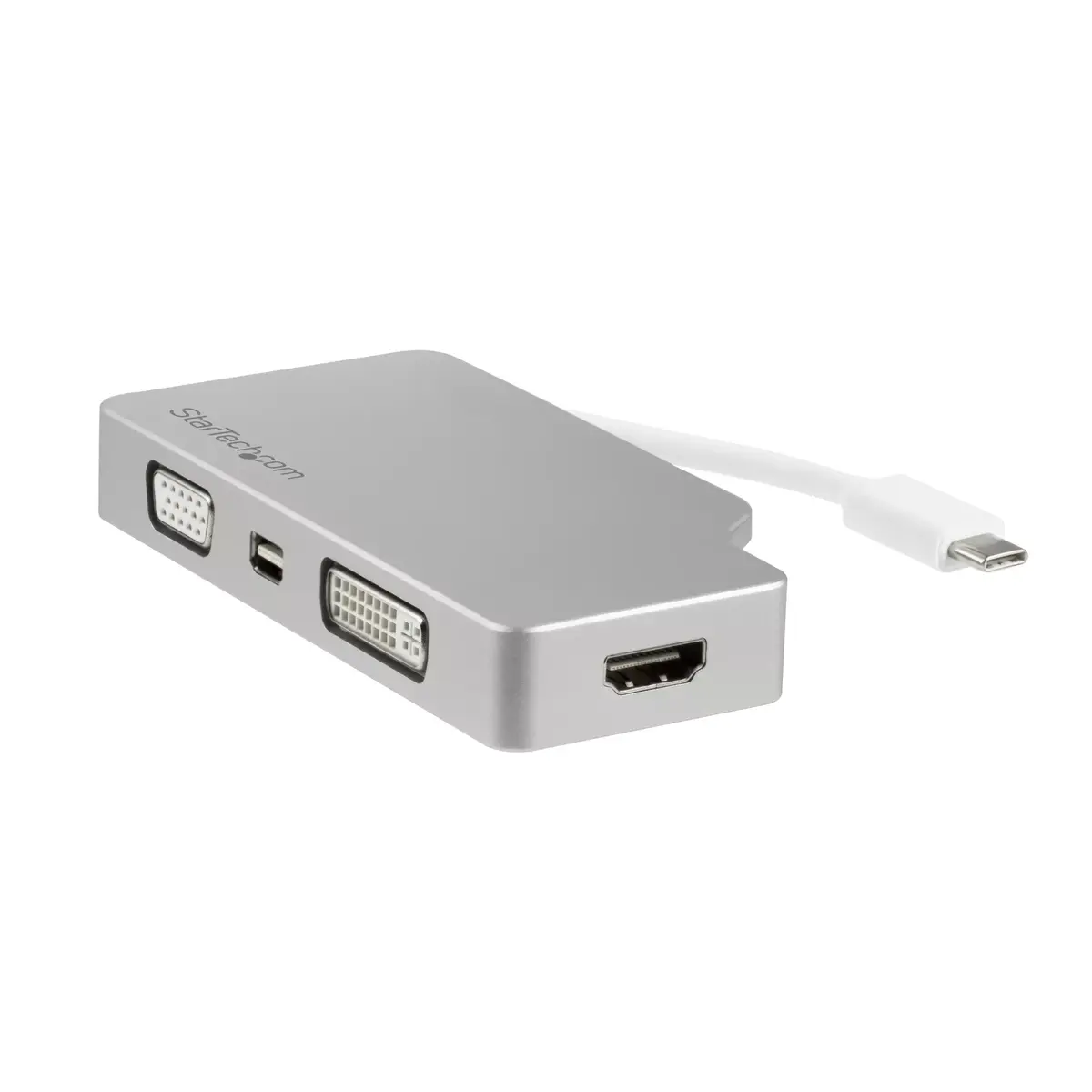

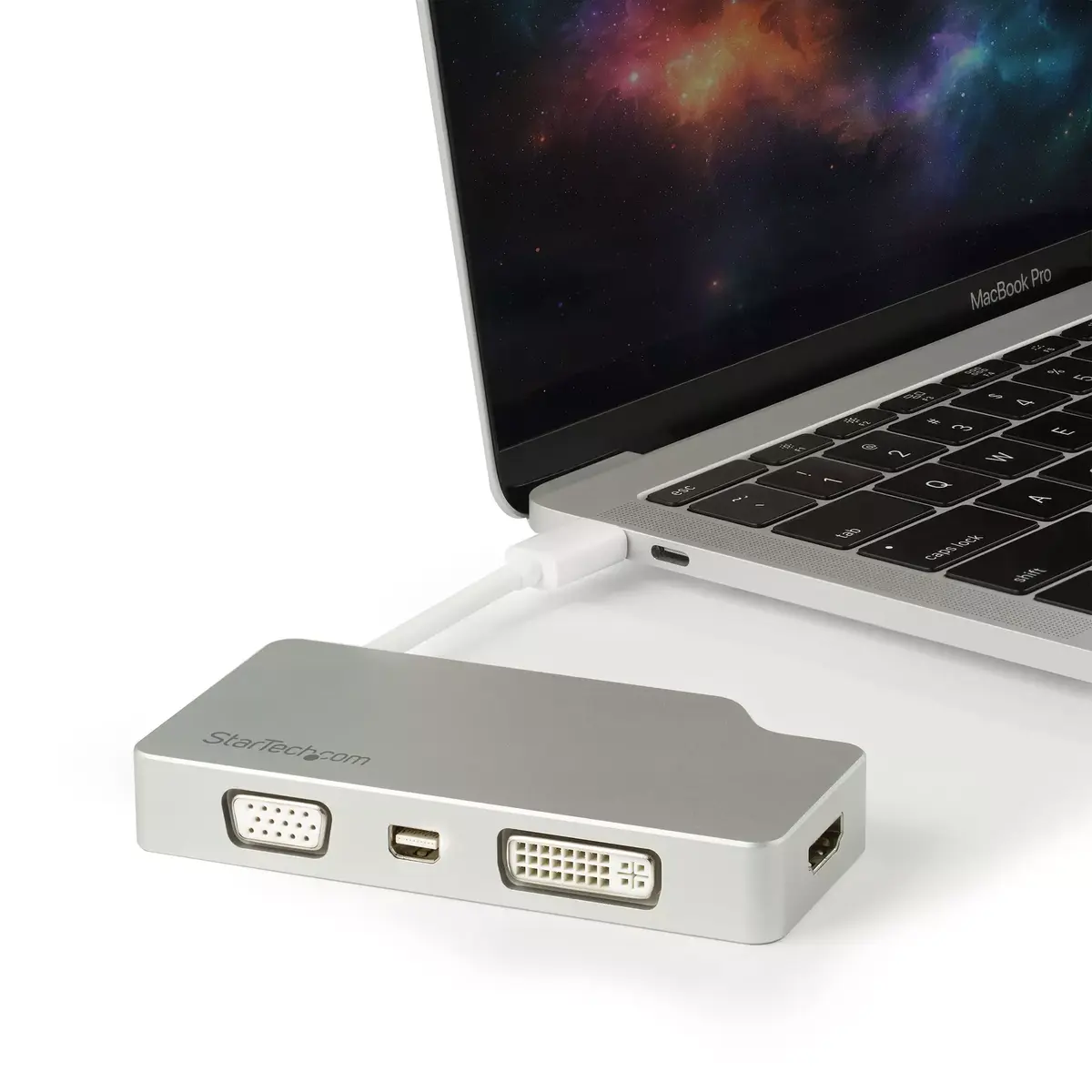

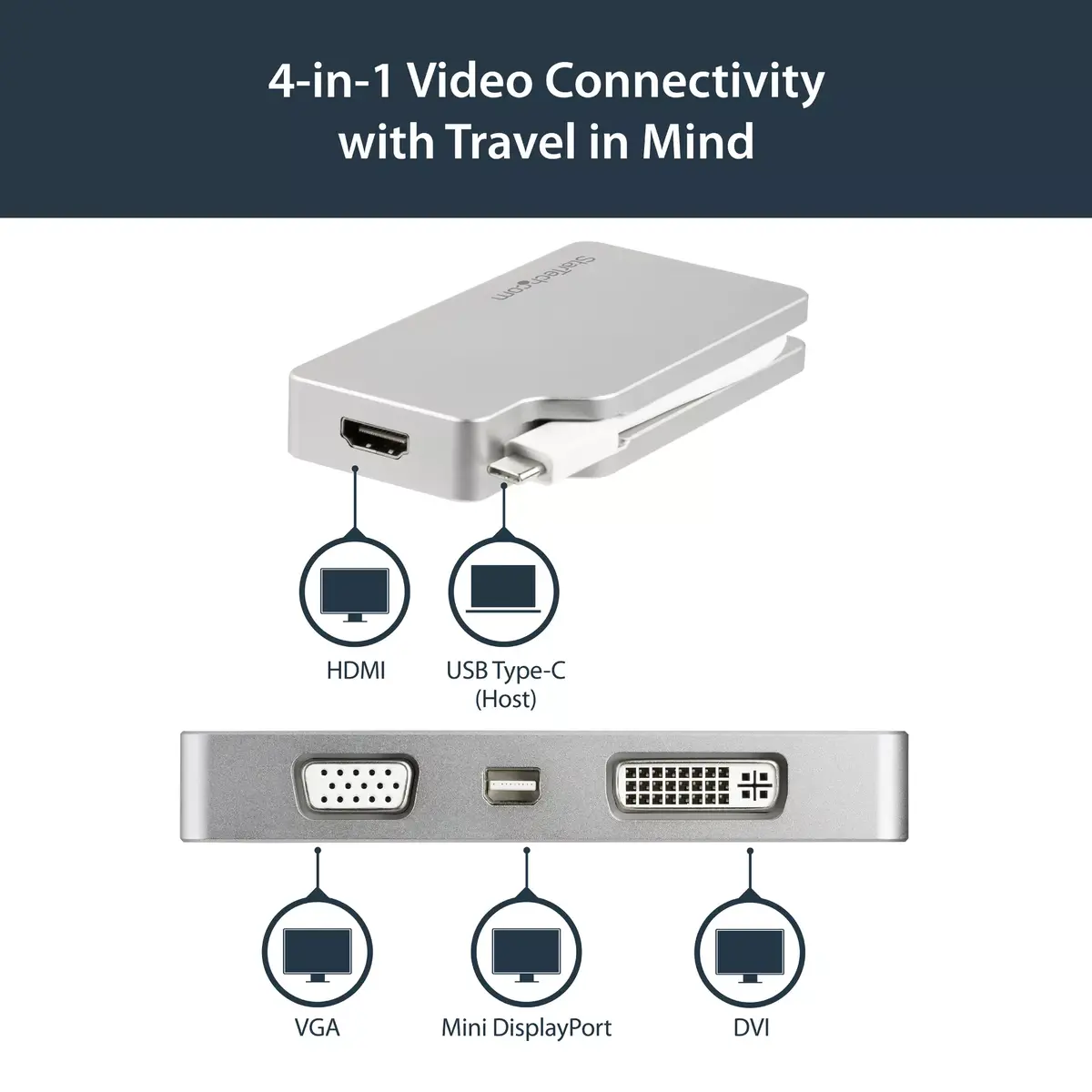

USB‑C Multiport Video Adapter StarTech CDPVGDVHDMDP — HDMI 1.4 (4K) or mDP 1.2, VGA/DVI‑D (1080p), Silver Aluminium

Chipset: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

Cypress - CYPD1120, Cypress - CY7C65210, Parade - PS8348B, Parade - PS171

Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.

3840 x 2160

USB connector type: The type of USB connector/port that this product has.

USB Type-C

Audio output channels: An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.

7.1

Supported graphics resolutions: The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.

1920 x 1080 (HD 1080), 1280 x 720 (HD 720), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160

HDMI version:

1.4

Mini DisplayPorts quantity:

1

USB cable length:

0.11 m

Number of displays supported: The number of displays that can be used with this product.

1

DisplayPort version:

1.2

Maximum resolution (DVI):

1920 x 1200

Maximum resolution (HDMI):

3840 x 2160

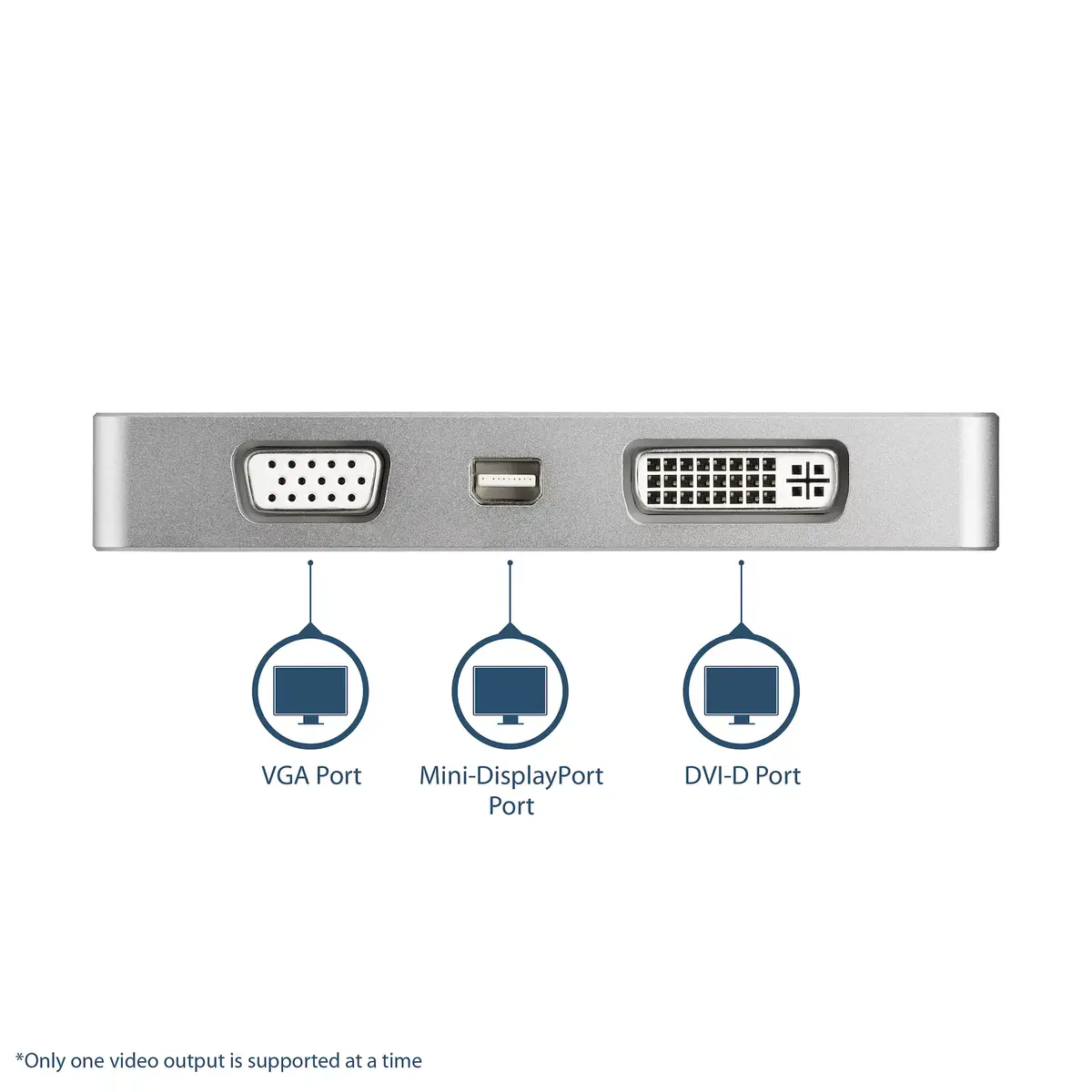

DVI output:

Yes

DVI connector type:

DVI-D

Refresh rate at maximum resolution:

60 Hz

DisplayPort output: The device features a DisplayPort (DP) output to accomodate a standardized digital display interface used to connect a video source to a display device such as a computer monitor, and it can also carry audio, USB, and other forms of data.

No

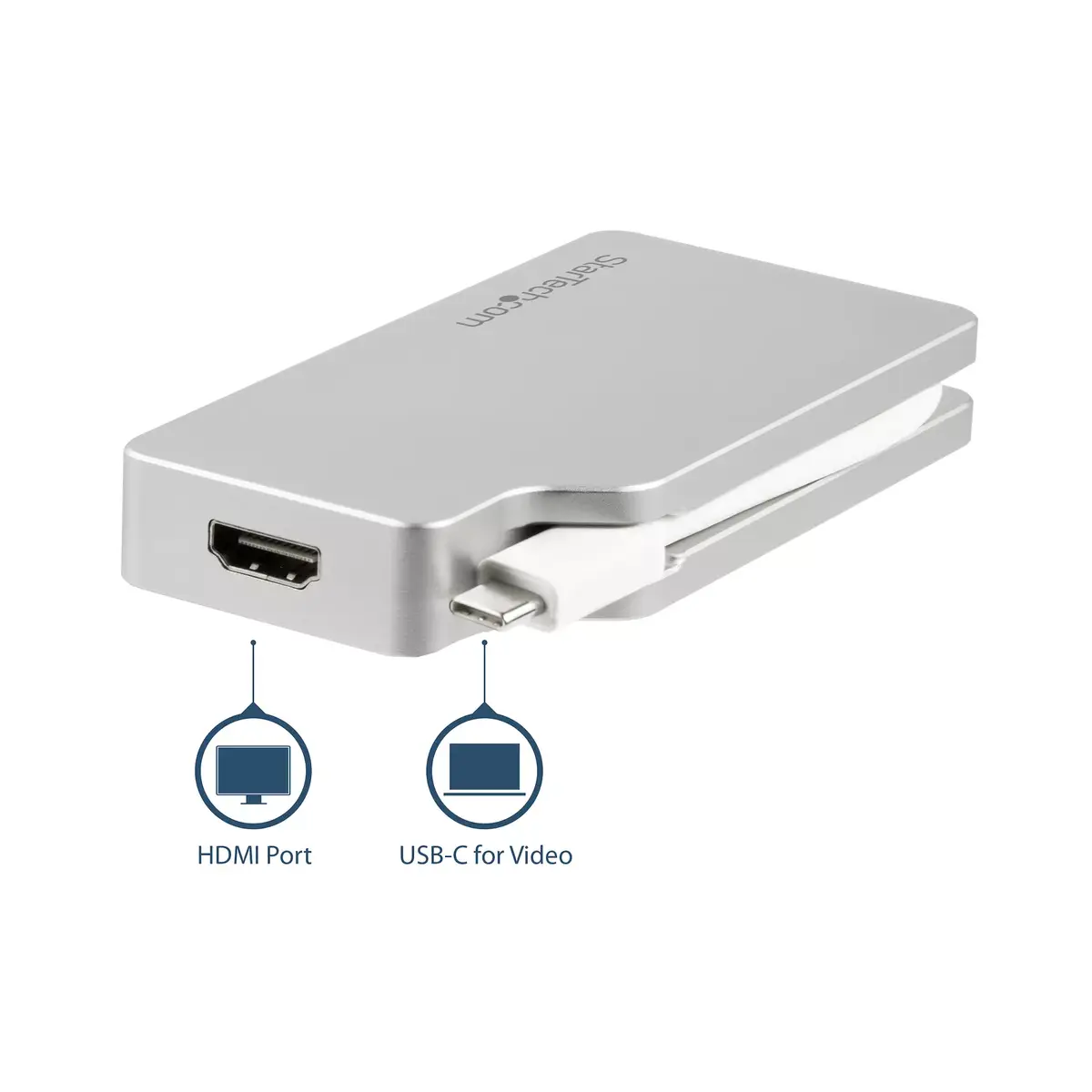

HDMI output: The device features an HDMI output.

Yes

VGA (D-Sub) output:

Yes

USB connector gender:

Male

Logistics data

Products per master (outer) case:

70 pc(s)

Master (outer) case height:

331 mm

Master (outer) case length:

473 mm

Master (outer) case width:

440 mm

Harmonized System (HS) code:

84733020

Other features

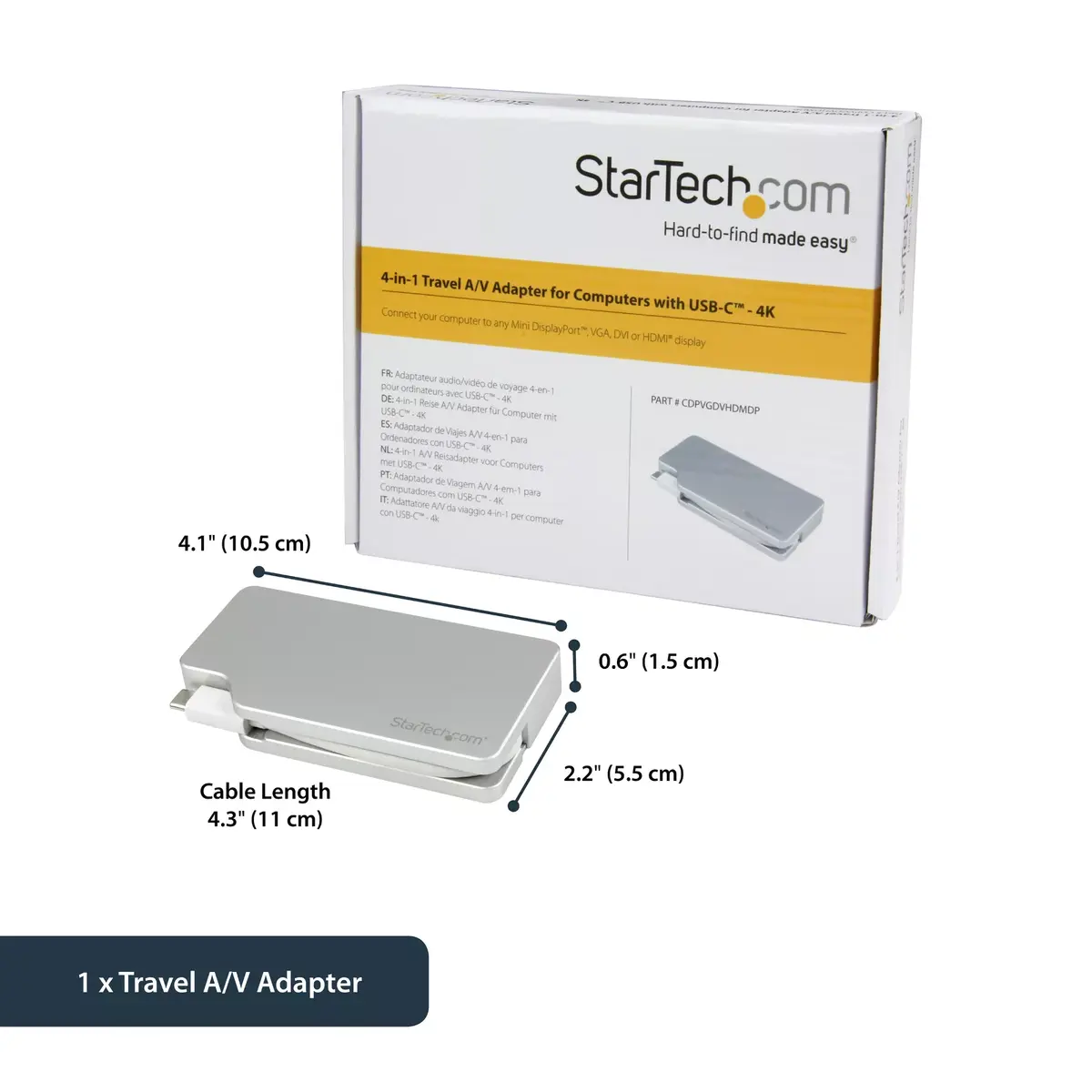

Height: The measurement of the product from head to foot or from base to top.

15 mm

Width: The measurement or extent of something from side to side.

55 mm

Packaging data

Package weight: Weight of the packaged product.

184 g

Package height: The distance from the top to the bottom of the packaging.

30 mm

Package depth: The distance from the front to the back of the packaging.

170 mm

Package width: The distance from one side of the packaging to the other.

145 mm

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.108 kg

Depth: The distance from the front to the back of something.

105 mm

Operational conditions

Operating relative humidity (H-H):

40 - 50

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-10 - 80

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 70

Certificates

Certification:

CE, FCC, REACH

Sustainability

Sustainability certificates:

RoHS

Features

Product colour: The colour e.g. red, blue, green, black, white.

Silver
