Latching connectors:
-
Yes
-
Number of conductors:
-
19
-
Cable rating:
-
CMG (CM)
-
Multi-Stream Transport (MST):
-
Yes
-
Plug and Play:
Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
-
Yes
-
Maximum refresh rate:
-
60 Hz
-
Bandwidth:
-
21600 MB/s
-
Cable shielding:
The protective layer for the cable, typically made of plastic.
-
Aluminum mylar foil
-
AWG wire size:
-
28
-
Jacket material:
-
Polyvinyl chloride (PVC)
-
HDCP:
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
-
Yes
-
Supported graphics resolutions:
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
-
1920 x 1080 (HD 1080), 3840 x 2400, 2560 x 1600 (WQXGA)
-
Product colour:
The colour e.g. red, blue, green, black, white.
-
Black
-
Connector 2 form factor:
-
Straight
-
Connector 1 form factor:
-
Straight
-
DisplayPort Content Protection (DPCP):
-
Yes
-
Maximum resolution:
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
-
3840 x 2400
-
DisplayPort version:
-
1.2
-
Connector contacts plating:
What the connector contacts are covered with (layer on top).
-
Nickel
-
Connector 1 gender:
The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
-
Male
-

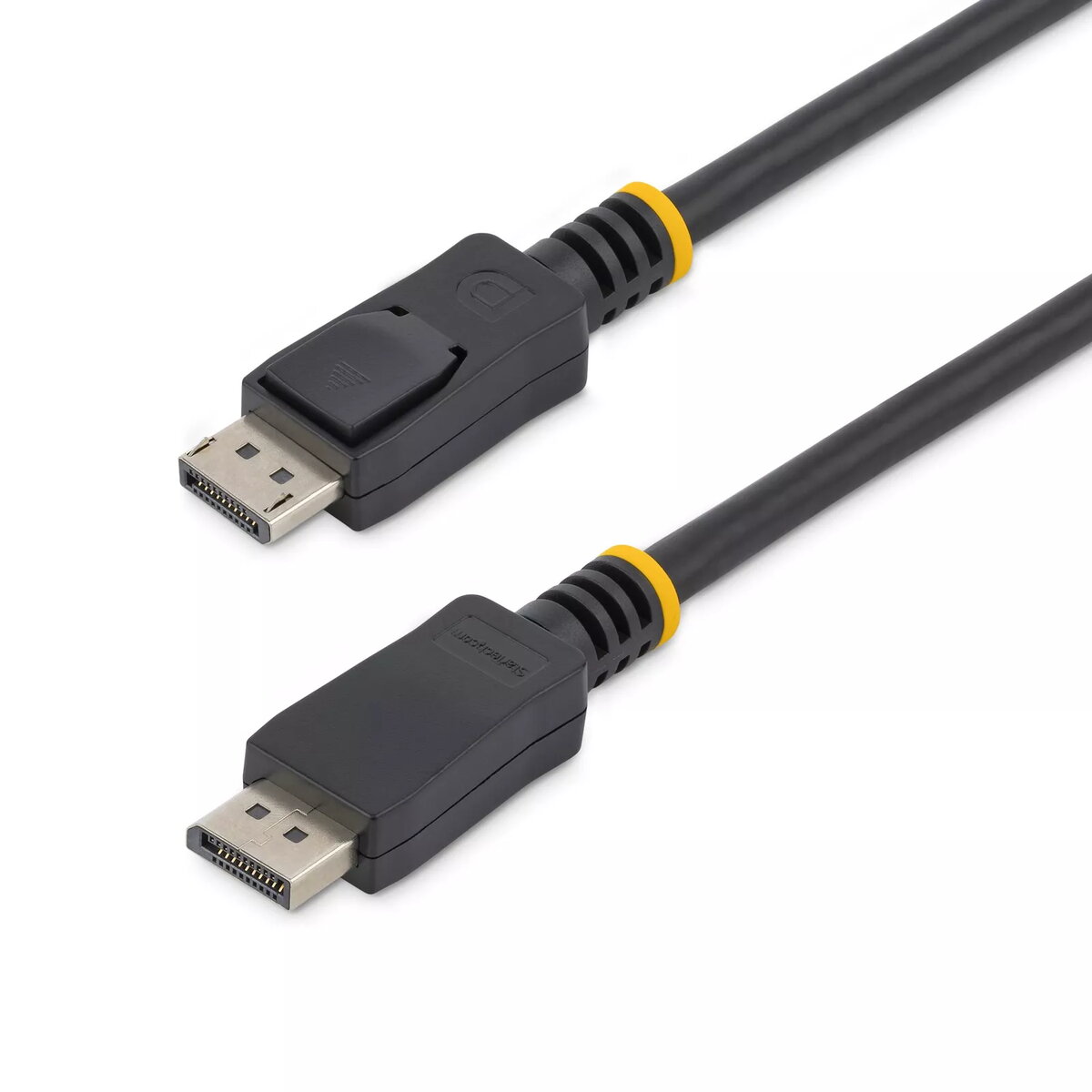

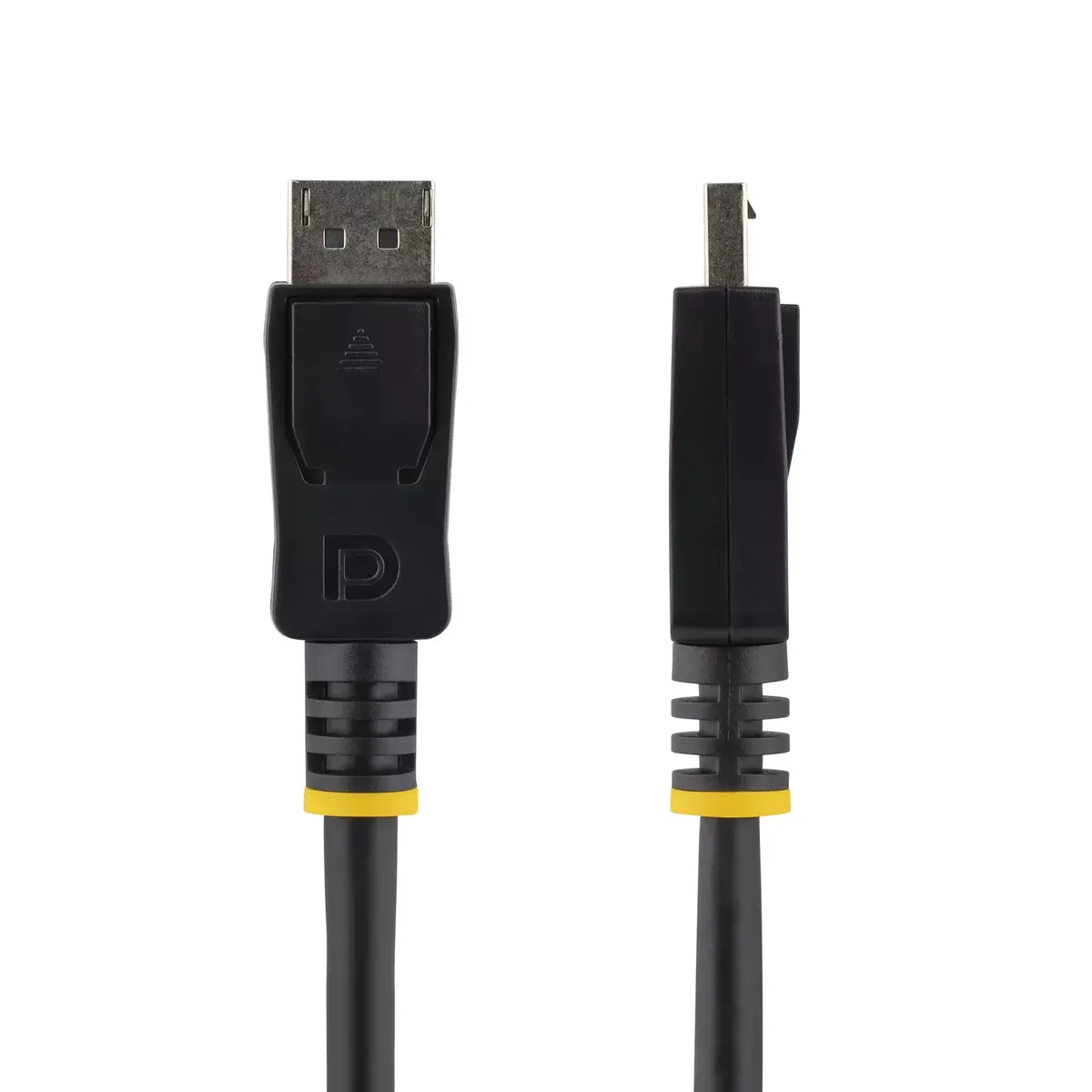

Connector 1:
This is the first connector in the device.
-
DisplayPort
-
Cable length:
How long the cable is.
-
0.5 m
-
Connector 2 gender:
The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.
-
Male
-
Connector 2:
This is the second connector in the device.
-
DisplayPort
