Cable type:
Type of cable e.g. electicity cable, optical cable.
-
Round cable
-
Fire-resistance rating:
-
VW-1
-

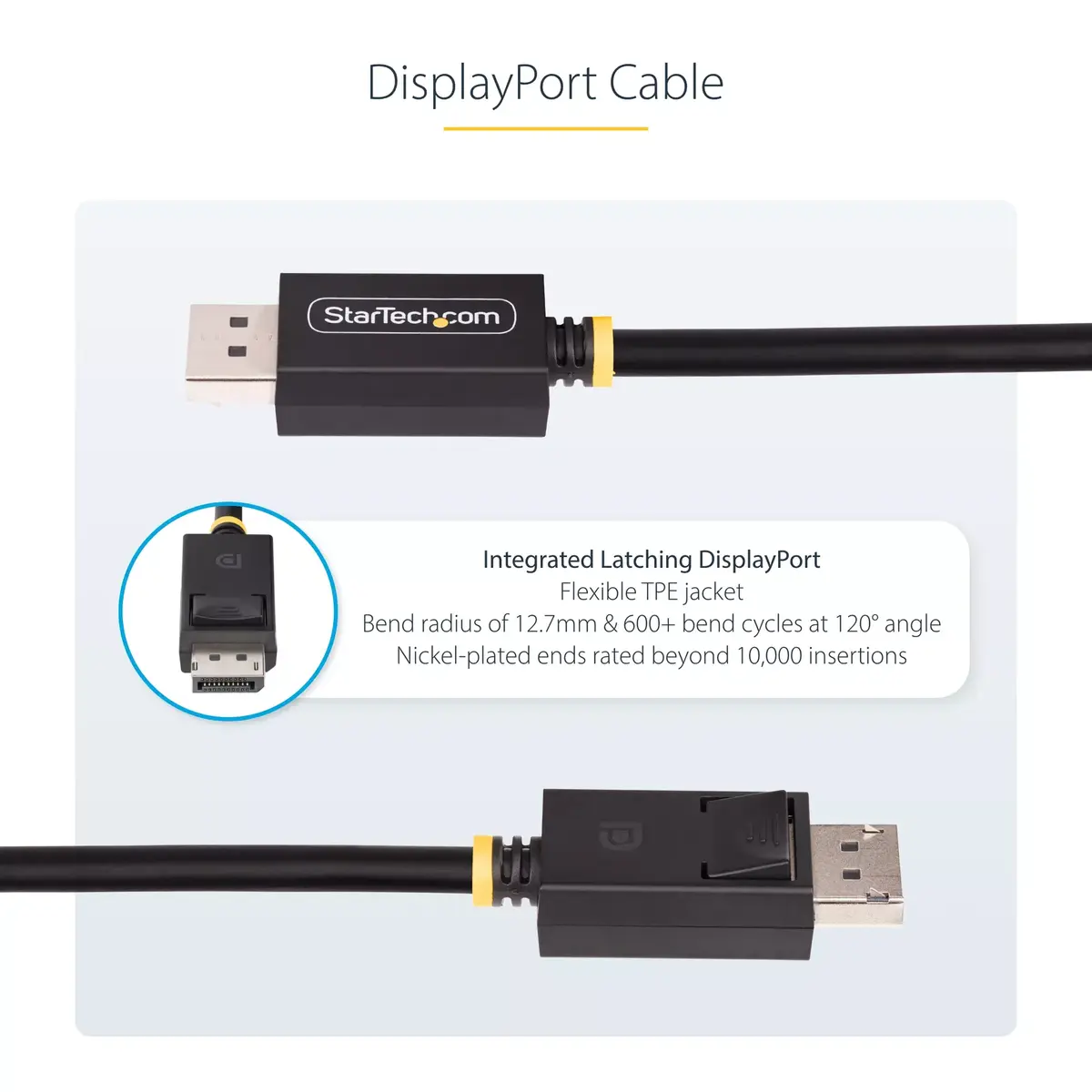

Latching connectors:
-
Yes
-
Multi-Stream Transport (MST):
-
Yes
-
Channels quantity:
The number of channels the device has. There can be an individual input or output for each channel.
-
32 channels
-
Maximum refresh rate:
-
144 Hz
-
High Dynamic Range (HDR) supported:
-
Yes
-
Data transfer rate:
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
-
40 Gbit/s
-
Cable shielding:
The protective layer for the cable, typically made of plastic.
-
Aluminum mylar foil
-
AWG wire size:
-
3/0
-
Jacket material:
-
Thermoplastic elastomer (TPE)
-
HDCP:
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
-
Yes
-
Cable material:
The material e.g. copper, steel from which the cable is made.
-
Copper
-

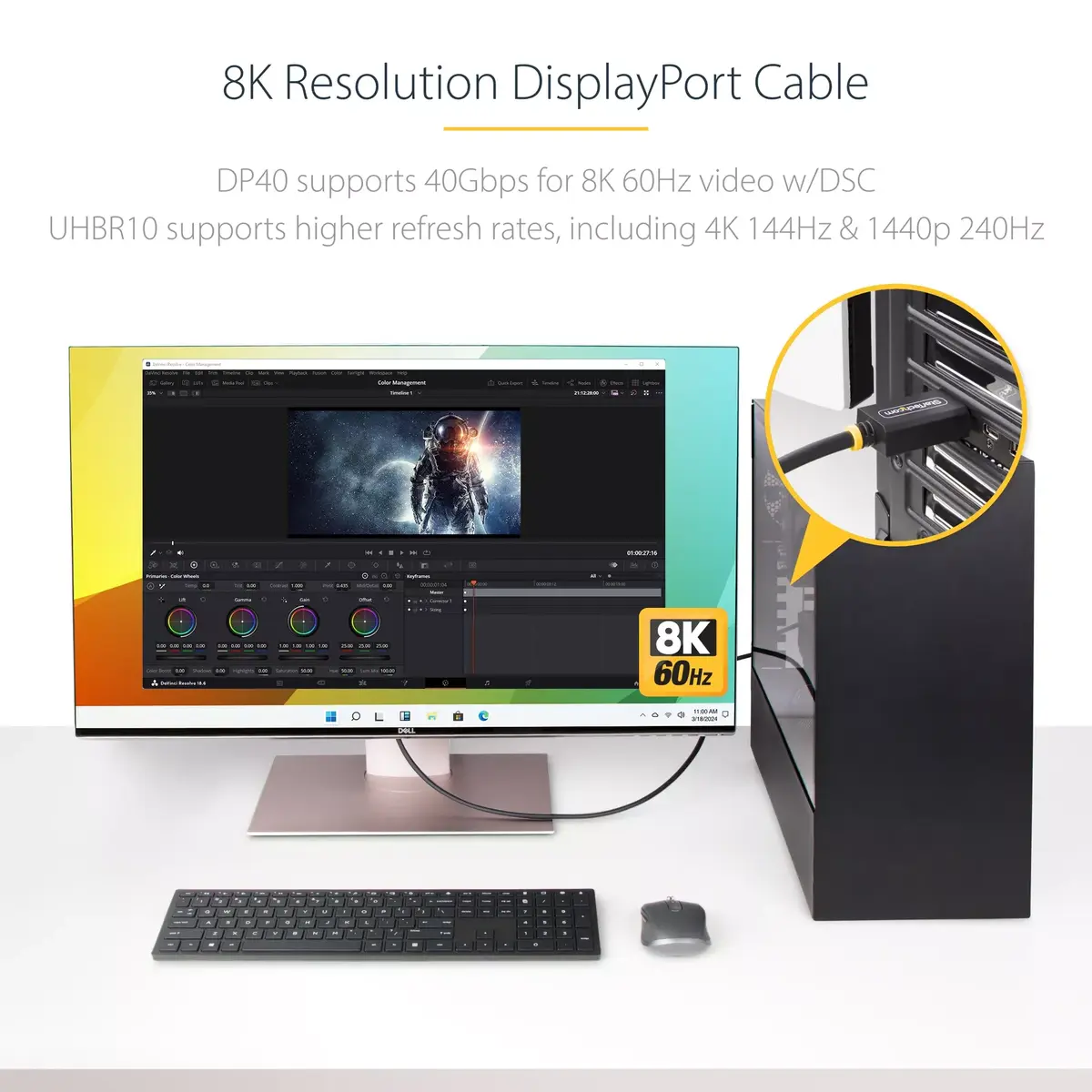

Supported graphics resolutions:
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
-
3840 x 2160, 7680 x 4320
-
Product colour:
The colour e.g. red, blue, green, black, white.
-
Black
-
Connector 2 form factor:
-
Straight
-
Connector 1 form factor:
-
Straight
-
Display Stream Compression (DSC) version:
-
1.2a
-
Display Stream Compression (DSC):
-
Yes
-
HDCP version:
-
2.2
-
Maximum resolution:
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
-
7680 x 4320
-
DisplayPort version:
-
2.1
-
Connector contacts plating:
What the connector contacts are covered with (layer on top).
-
Nickel
-
Connector 1 gender:
The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
-
Male
-

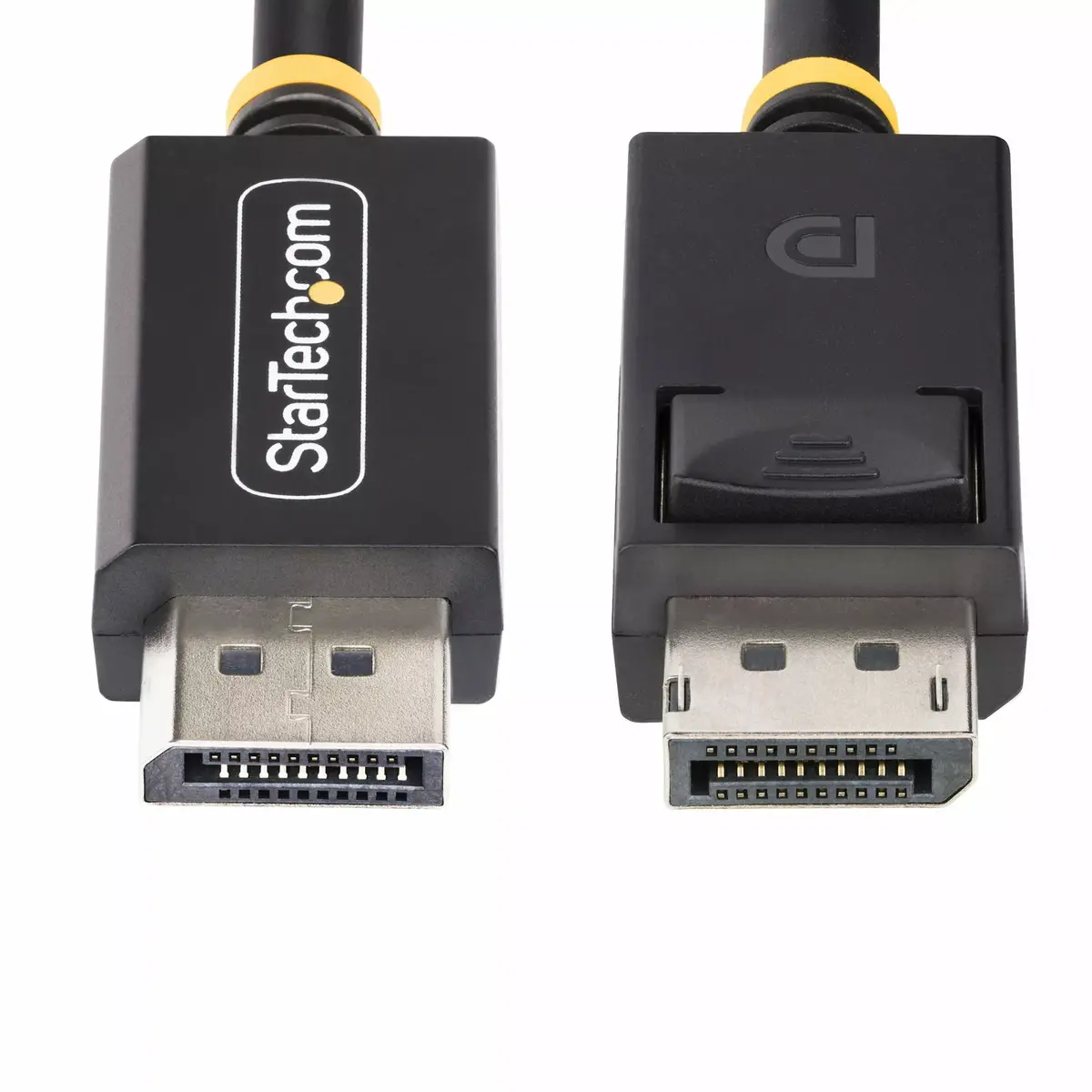

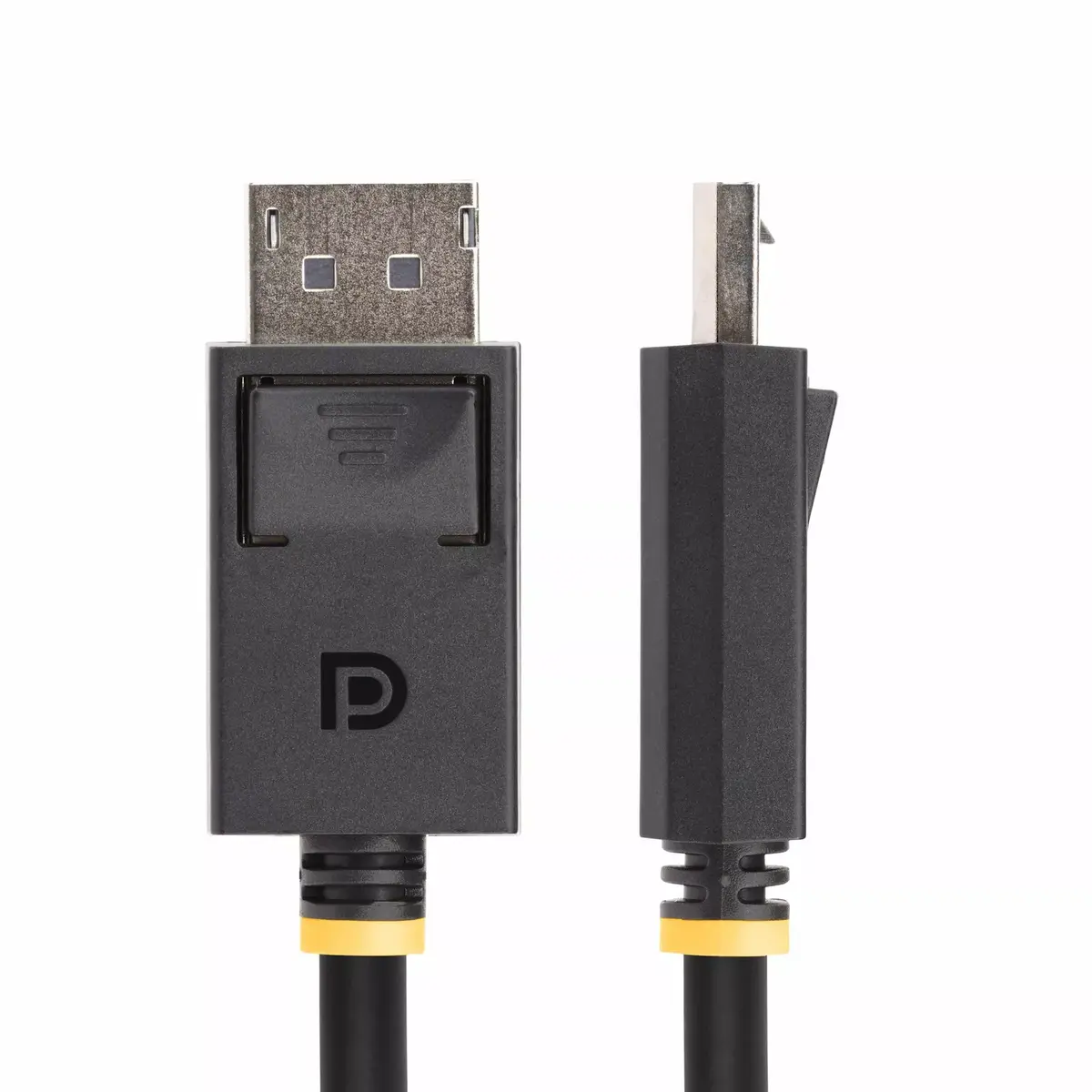

Connector 1:
This is the first connector in the device.
-
DisplayPort
-

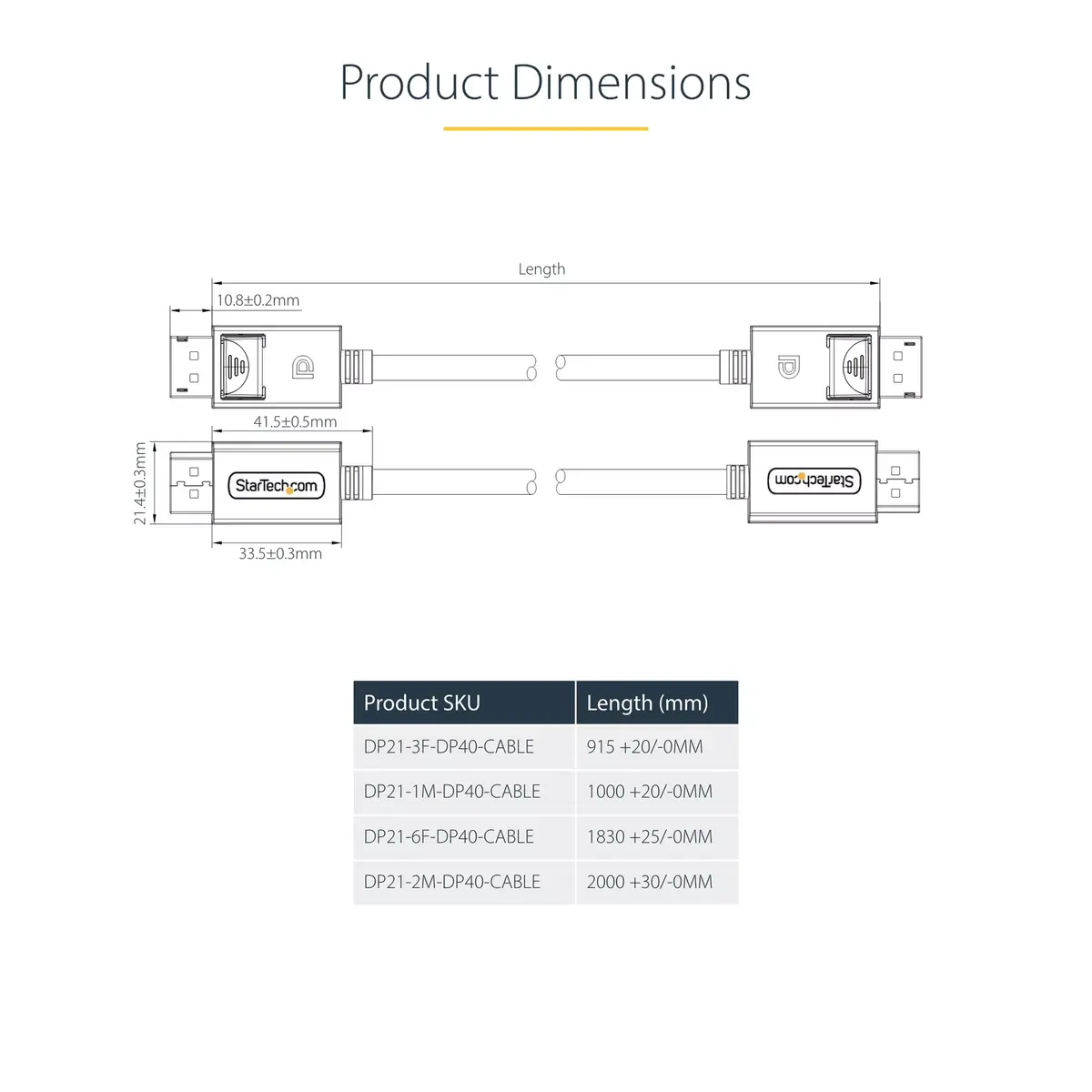

Cable length:
How long the cable is.
-
1 m
-
Connector 2 gender:
The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.
-
Male
-
Connector 2:
This is the second connector in the device.
-
DisplayPort
